If the gray fi eld connector is secured with wire ties only...

1. Clip wire ties inside control unit.
2. Disconnect existing wiring harness terminals:

a. Remove black and white wires from female

end and discard parts of female end of

connector. Do not remove pins from ends of

black and white wires.

c. Disconnect internal B+ connection, saving

hardware for reassembly.

d. Disconnect green ground wire from housing.

Save hardware for reassembly.

e. Cut red wire from diode trio in housing and

use sleeving to insulate. It will not need to be

reattached to new harness. See Figure 7.

f. Disconnect existing wiring harness from

thermal switch (see Figure 7):

1) Cut brown wire from existing harness to

thermal switch, leaving enough length

from thermal switch for reassembly, and

strip 1/4 inch of insulation.

2) Leave other brown wire to thermal switch

as-is

for

reassembly.

7. Using splice and sleeves from kit: crimp, solder,

and insulate brown wire from new harness to ex-
isting brown wire from thermal switch.

8. Reassemble internal B+ connection and hard-

ware as shown in Figure 9.

9. Attach new wire ties to firmly secure connector

and other wires inside control unit.

Black wire

White wire

FEMALE END

Figure 7 — Existing Harness Wiring

3. Remove existing wiring harness from housing,

taking the grommet out as well. Discard harness
and grommet.

4. Install wiring harness into notch in plate, making

sure grommet is securely wedged in notch.

5. Reconnect green ground wire in housing, Torque

screw and lockwasher to 3.4 Nm/ 45 lb. in.

6. Re-assemble new gray field connector:

a. Assemble new female connector end onto

black and white wires of new harness as

shown in Figure 8.

b. Save new male end of gray field coil connector

provided in kit to replace existing male end of

connector connecting field coil leads from shell.

Figure 8 — Field Coil Connector Assembly

Leave this wire alone

See step 2f

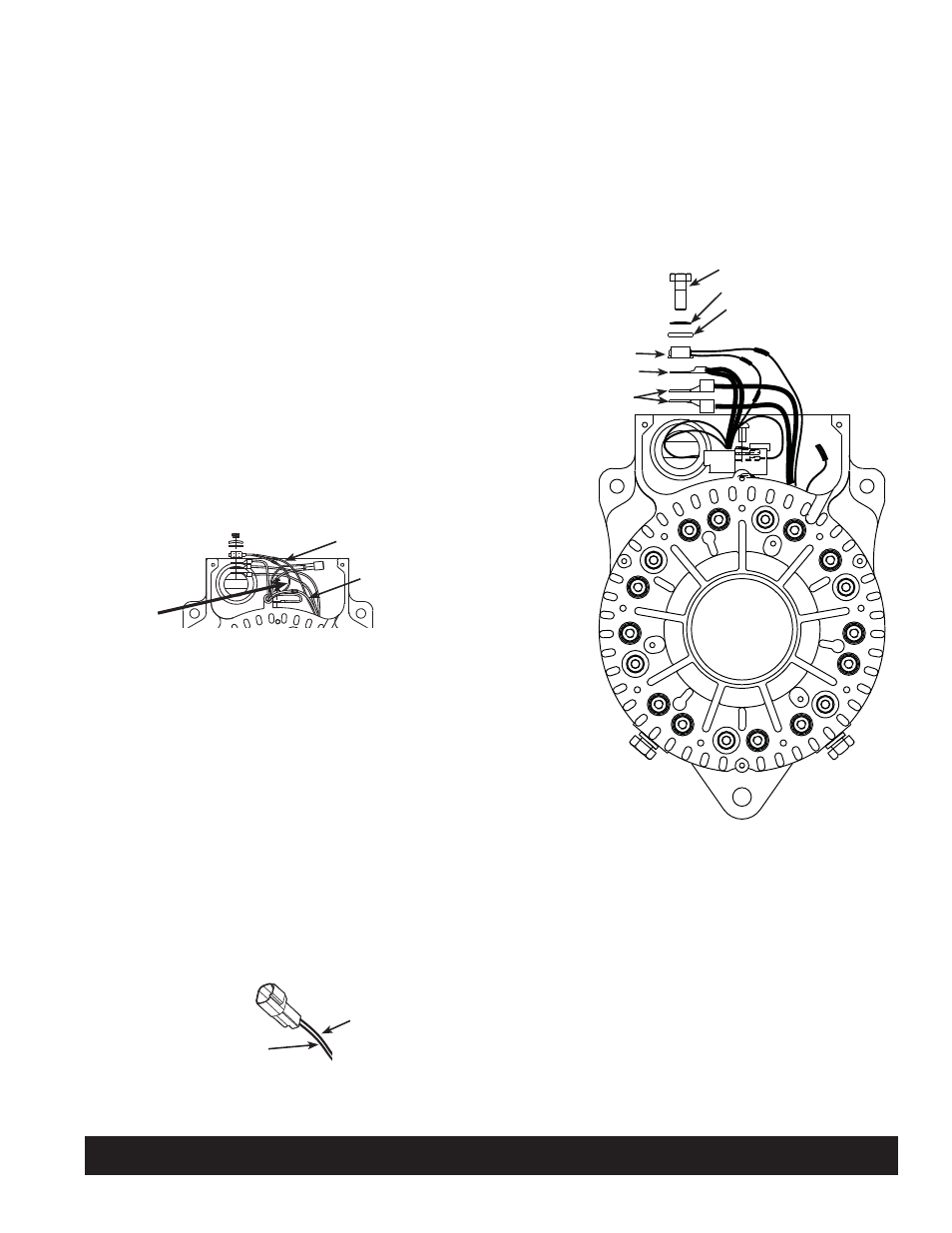

Figure 9 — Internal B+ Stacking Order

Hex bolt—torque to 27-28.5 Nm/20-21 lb.ft.

Disc spring washer

Flat washer

Thermal switch

Red wires terminal

from harness

Rectifi er terminals

See step 2e

II169B
