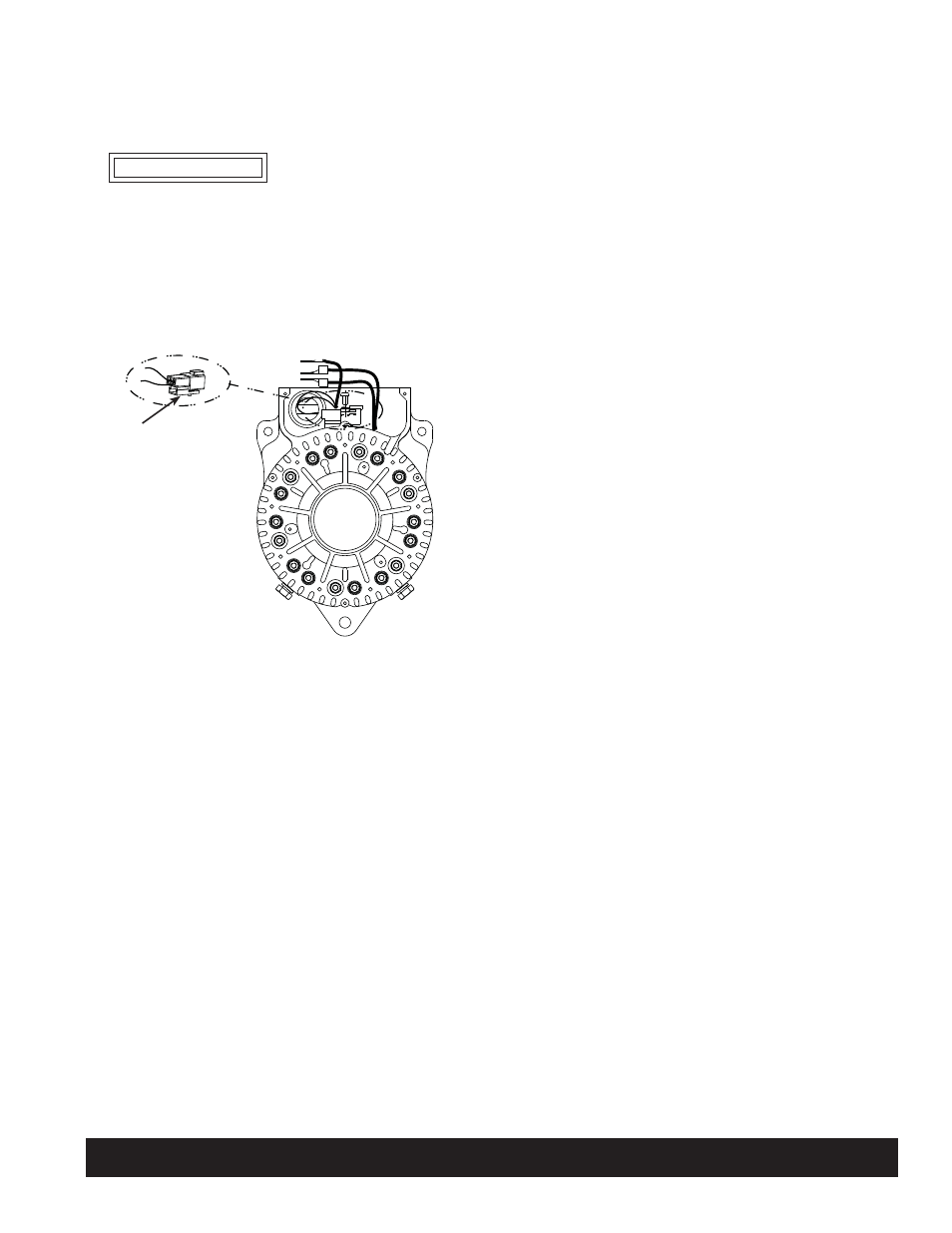

Figure 5 — New Style A5-546 Housing
5. The kit contains a replacement connector clip.
IF the housing has a clip holding the gray connec-
tor to the housing, and IF it needs to be replaced
for any reason, see Figure 5. Torque screw to
3.4 Nm/45 lb. in.
If the housing does not
have the clip installed,
DO NOT attempt to
install the new clip.
DO NOT drill any hole
in the housing. Instead,
securely affix tie wraps
to help protect the con-
nector assembly from
vibration.
6. Clean off any old sealant covering the field coil
leads and recoat with Dow Corning® SE 9186L
RTV coating or equivalent on the leads and on
the splices to hold them to the housing.
CAUTION
Connector clip
