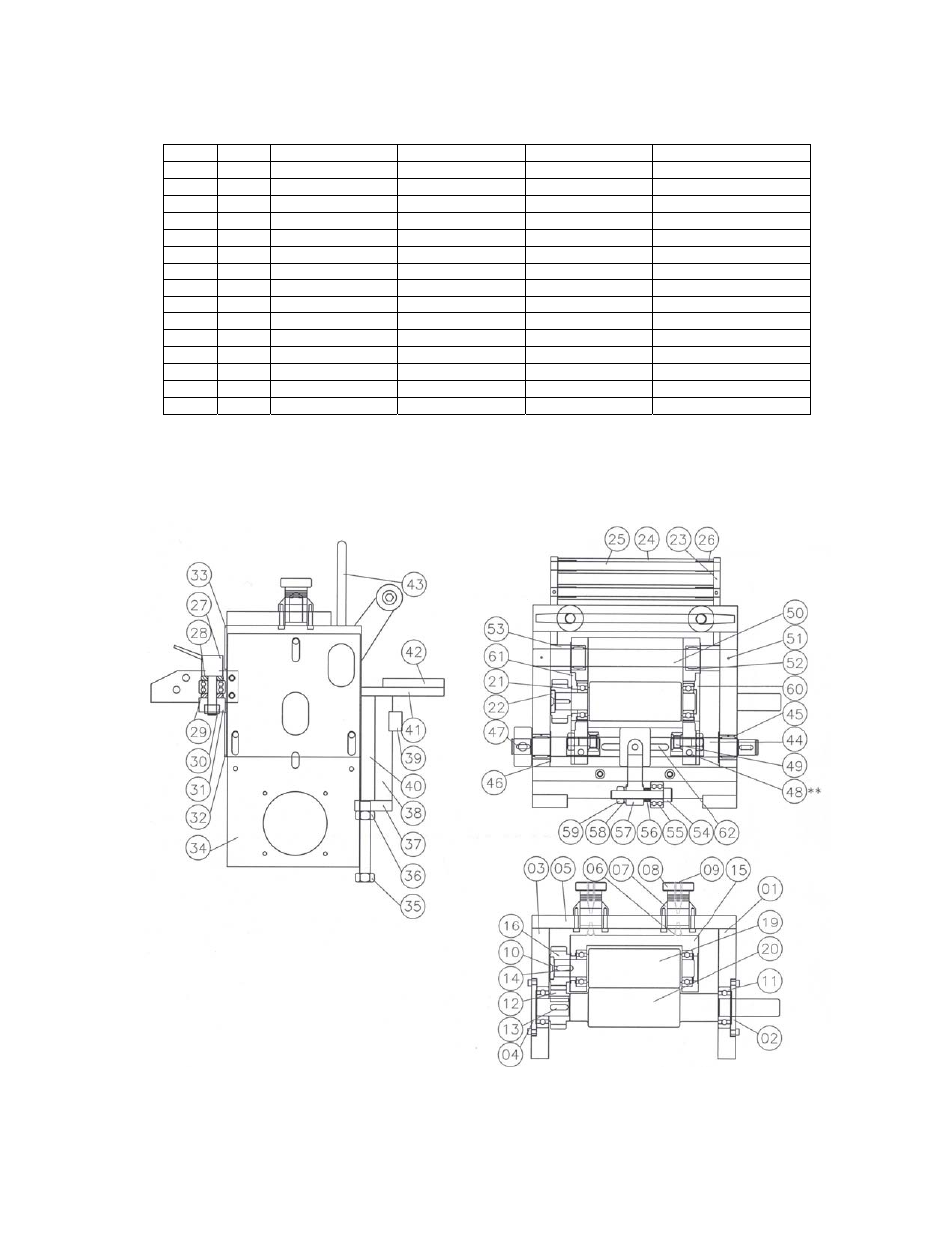

List of parts that are different between 105M through 320M models
Item Q-ty 105M Part # 220M Part # 320M Part # Description
05 01 R-SRF-105M-05 R-SRF-220M-05 R-SRF-320M-05 Upper plate
15 01 R-SRF-105M-15 R-SRF-220M-15 R-SRF-320M-15 Upper roll bracket
19 01 R-SRF-105M-19 R-SRF-220M-19 R-SRF-320M-19 Textured Upper roll
20 01 R-SRF-105M-20 R-SRF-220M-20 R-SRF-320M-20 Textured lower roll
24 01 R-SRF-105M-24 R-SRF-220M-24 R-SRF-320M-24 Entry roll cascade
25 02 R-SRF-105M-25 R-SRF-220M-25 R-SRF-320M-25 Shaft
31 01 R-SRF-105M-31 R-SRF-220M-31 R-SRF-320M-31 Roll guide bar
32 01 R-SRF-105M-32 R-SRF-220M-32 R-SRF-320M-32 Lower cover
33 01 R-SRF-105M-33 R-SRF-220M-33 R-SRF-320M-33 Upper cover
38 01 R-SRF-105M-38 R-SRF-220M-38 R-SRF-320M-38 Transition plate
40 01 R-SRF-105M-40 R-SRF-220M-40 R-SRF-320M-40 Mounting plate
41 01 R-SRF-105M-41 R-SRF-220M-41 R-SRF-320M-41 Exit plate
42 01 R-SRF-105M-42 R-SRF-220M-42 R-SRF-320M-42 Material hold down plate
44 01 R-SRF-105M-44 R-SRF-220M-44 R-SRF-320M-44 Roll release shaft
50 01 R-SRF-105M-50 R-SRF-220M-50 R-SRF-320M-50 Fixed shaft
