LEDs Tab

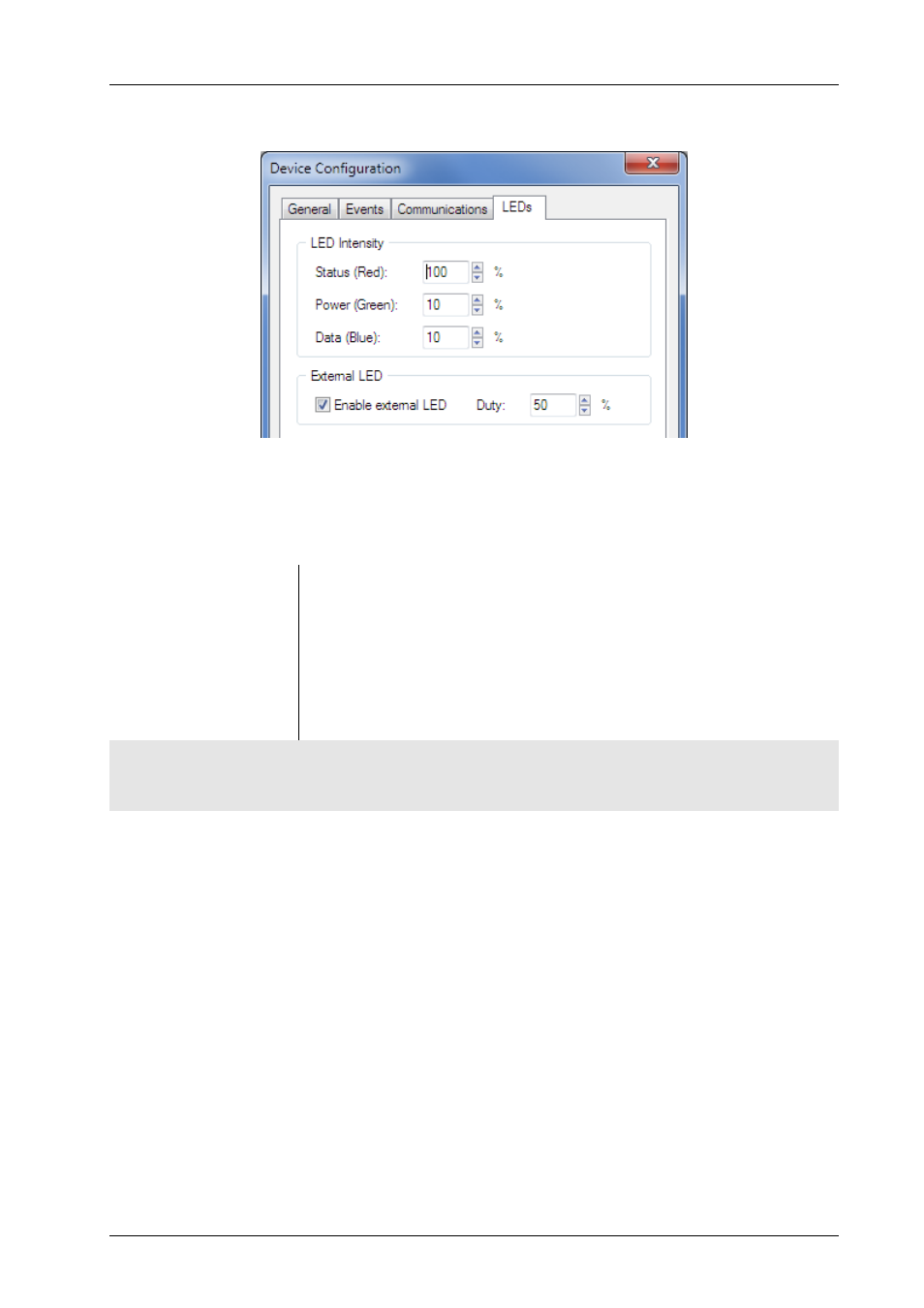

Figure 6 – Device Configuration – Example LEDs Tab
The Intensity of each of the three LEDs on the ADR can be individually configured.
The functions of the parameters on the LEDs tab are as follows.
LED Intensity / Status /
Power/ Data
Used to set the brightness (1% to 100%).
External LED / Enable
external LED
Enable or disable the external LED function. Disable this function if an external
LED is not used. If not disabled, and an external LED is not used, an External
LED open circuit fault is generated.
External LED / Duty
Used to set the brightness of the external LED during the power on lamp test.
Further Information:
For details on how the LEDs function; see the
section on page
