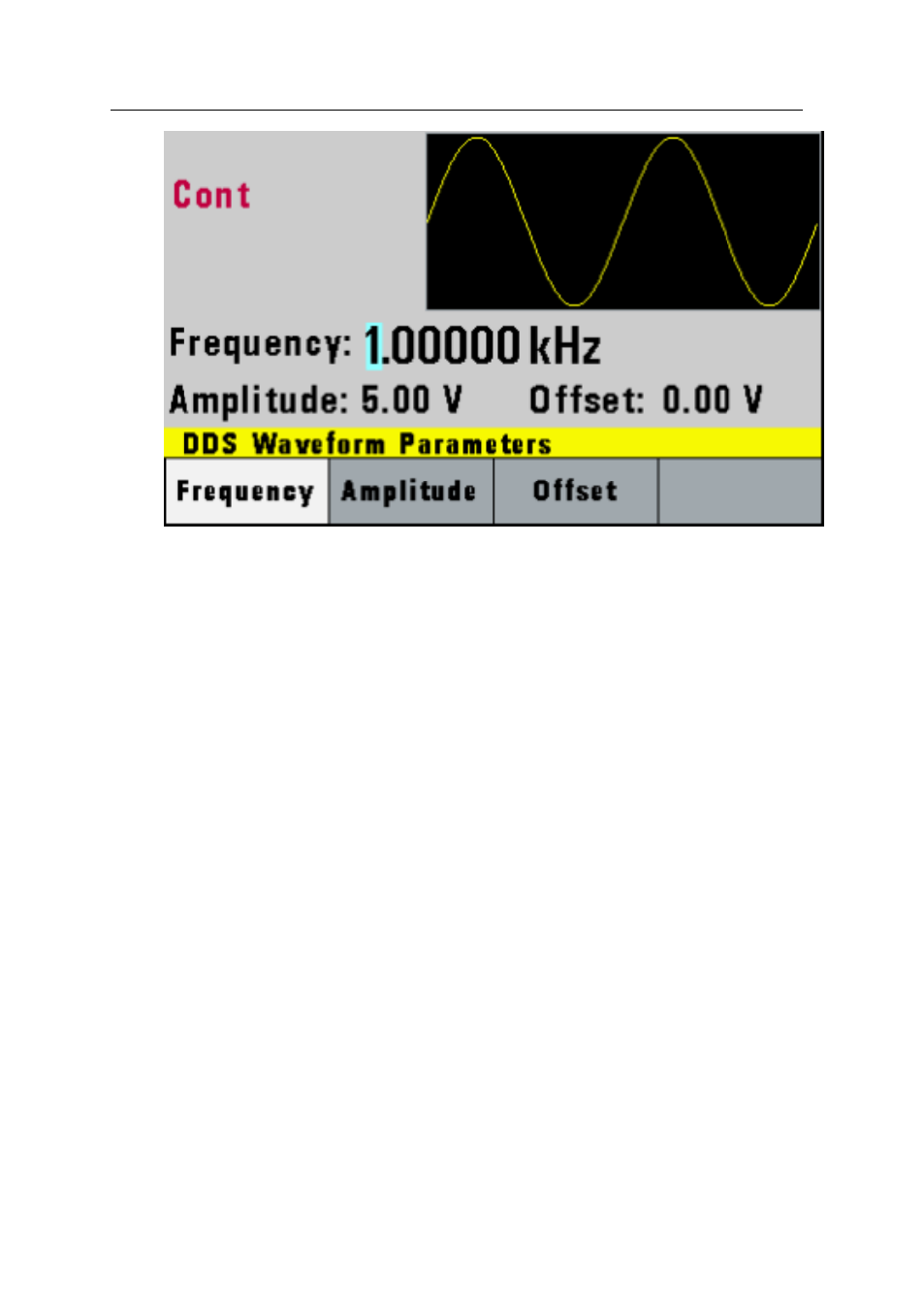

Sine Menu
F1: Frequency
– Selects and displays the frequency.
Change the frequency setting using the cursor keys,
rotary knob, or numerical keys.
F2: Amplitude
– Selects and displays the amplitude.
Change the amplitude setting using the cursor keys,
rotary knob, or numerical keys.
F3: Offset
– Selects and displays the offset parameter.
Change the offset by using the cursor keys, rotary knob,
or numerical keys. If a certain setting cannot be
produced, the waveform generator will display a
“Setting
Conflict
” message.
Amplitude and offset settings interact and are bound by
hardware restrictions. To obtain the desired waveform,
the amplitude and offset must satisfy the following
formula:
