Avision @V2800 User Manual
Page 139
132
Assembling Procedure

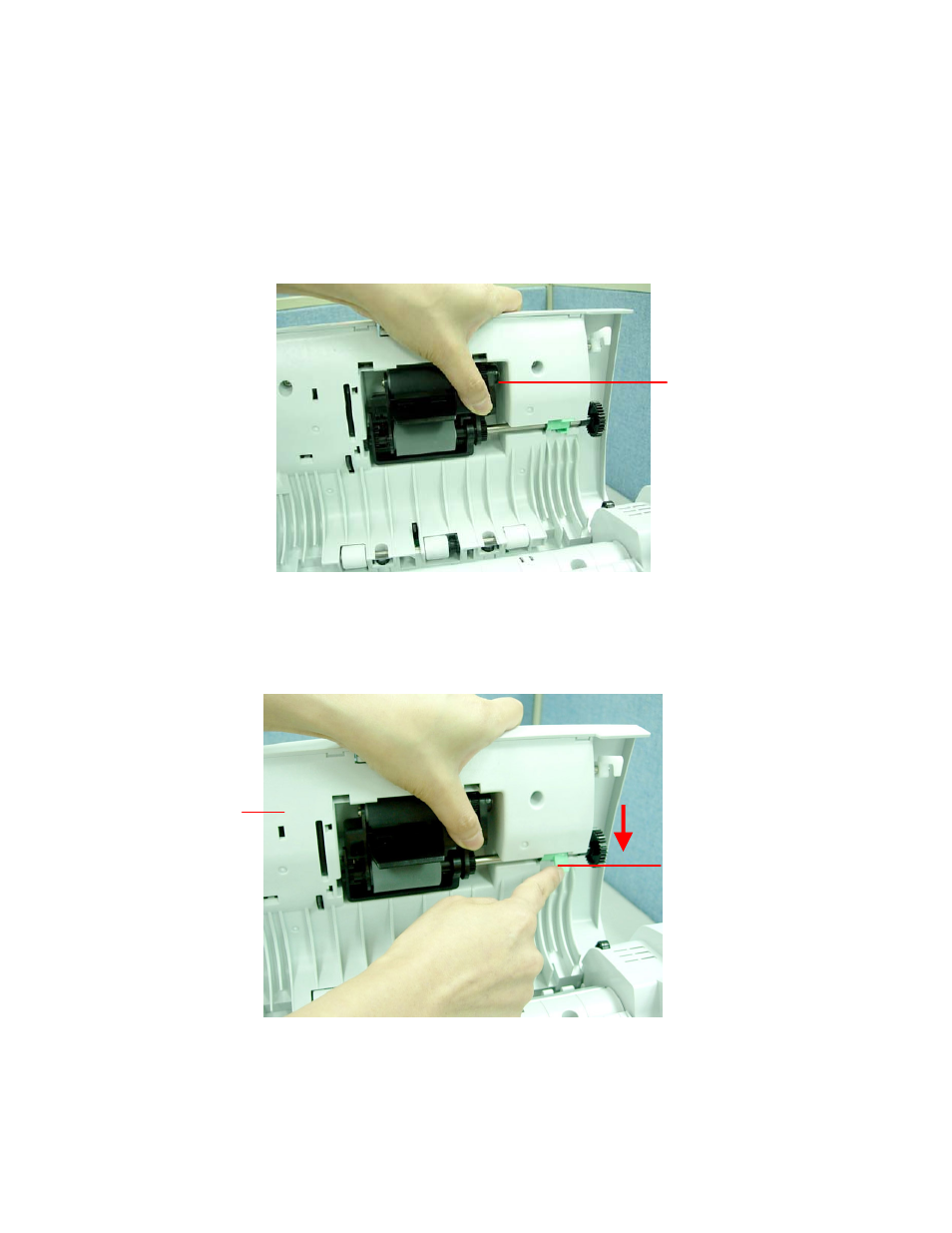

To install the ADF roller, please follow these steps.
1. Insert the ADF roller to its slot and hold it with one hand as illustrated.
2. Move down the green clamp and press it down as illustrated. If it is properly
installed, you will hear a clear snap-in sound.
3. Close the ADF front cover.
ADF Roller
Green Clamp
ADF Front
Cover
