Digital Phosphor Oscilloscopes / Digital Serial Analyzers / Mixed Signal Oscilloscopes

Certification

Before a product can go to market, you often need to complete a series of
certification tests on the industry-standard high-speed serial buses in your
design. These tests can involve many hours of wrestling with test fixtures,
reading certification documents and collecting sufficient data to validate that
your system passes the required tests.

Application Specific Solutions – Enable Standard
Specific Certification, Measurement Automation, and
Extended Signal Analysis

Accurate, Simple, and Customizable Physical Layer Certification Testing –
For designers with industry-standard certification needs, standard-specific
compliance and analysis modules that configure the pass/fail waveform
mask and measurement limit testing are available as options to the
DPO/DSA70000B and MSO70000. Modules are available for PCI
Express, DDR Memory, Serial ATA and SAS, InfiniBand, HDMI, Ethernet,
DisplayPort, DVI, UWB, MIPI

D-PHY, Power Supplies, and USB.

See the following list for highlights of the available application-specific
solutions.

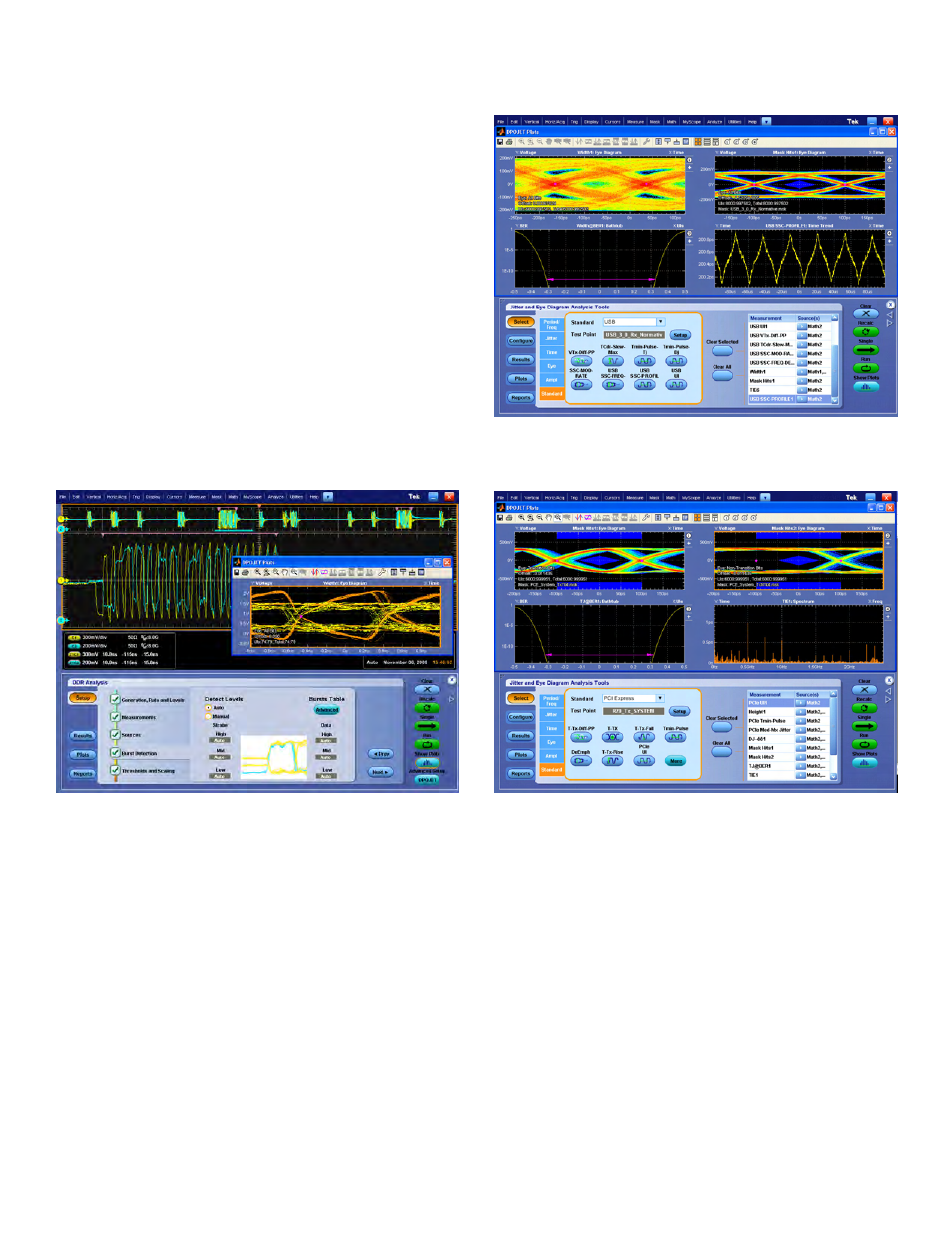

DDR Memory Bus Analysis (Option DDRA) – Automatically identify DDR1, LPDDR1,

LPDDR2, DDR2, DDR3, and GDDR3 Reads and Writes and makes JEDEC conformance

measurements with pass/fail results on all edges in every Read and Write burst. DDRA

also provides capabilities for measurements of clock, address, and control signals. In

addition to enabling conformance testing DDRA with DPOJET is the fastest way to debug

complex memory signaling issues.

USB 3.0 Transmitter Test Solution (Option USB3) – Perform verification,

characterization, and debug of USB 3.0 devices. Measurements are implemented in

DPOJET and are compliant to the USB 3.0 specification. For compliance and automation,

USB-TX is available, which also includes Option USB3.

PCI Express Analysis Test Solution (Option PCE) – Analyze the performance of your

PCI-Express Rev 1.0, 2.0, or 3.0 (draft spec) design with comprehensive test support.

Using DPOJET, Option PCE enables tests that conform to PCI-SIG standards.
