PCR-L series

MULTI PURPOSE AC POWER SUPPLY (CV·CF)

Control panel can be adjusted to
two different viewing angles

(1) Front and Rear slots

I/O slots for installing expansion option cards.

(2) Control Panel Display Unit

The use of a large, color fluorescent display (VFD) results in
clear, easy-to-read display of characters and figures, while control
can be performed using the function keys, 10-keys or jog and
shuttle function.

(3) Air Intake

For cooling the inside of the equipment by forced air cooling,
and provided with built-in air filters.

(4) POWER

This is the power supply's power switch.

(5) OUTPUT

These are used to obtain the output from the front panel. (the
maximum current available is 10A while the maximum voltage
is 125V)

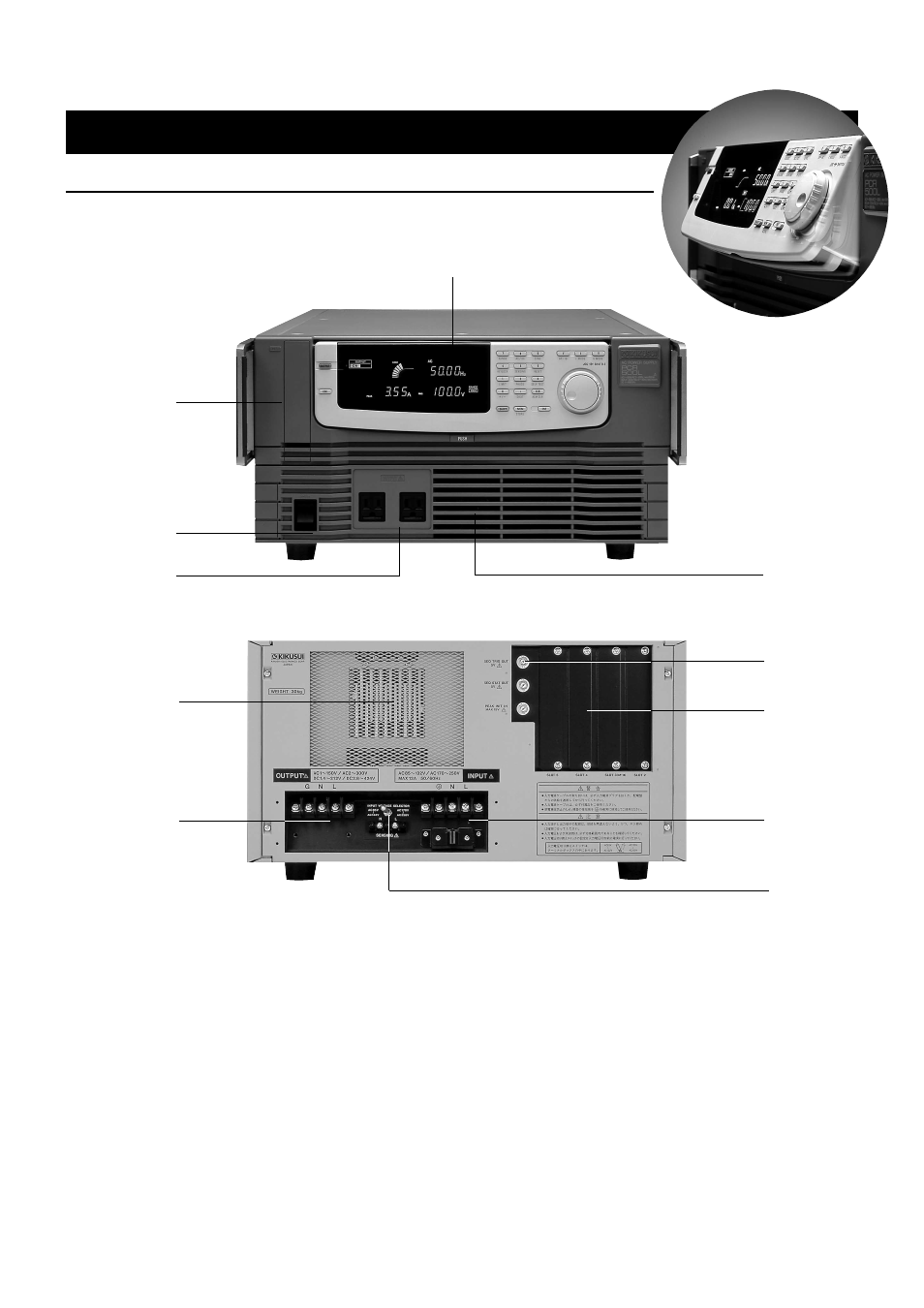

Panel description

Front and Rear Panels

(6) OUTPUT

The output terminal board.

(7) INPUT

The input terminal board. This is compatible with input power
voltages of 85-250V. (Those models having an output of 6 kVA
or more are compatible with voltages of 170-250V.)

(8) INPUT VOLTAGE SELECTOR

Used to select the voltage range of the input power voltage
(provided on the PCR500L, PCR1000L, PCR2000L and
PCR4000L).

(9) Exhaust Port

Provided for forced air cooling of the inside of the equipment.

(10) BNC connectors

These connectors become functional when an option is being used.

● The PCR2000L, PCR4000L and PCR6000L models are provided

with connectors for centrally controlled, parallel operation.

(2)

(1)

(4)

(3)

(5)

(6)

(7)

(8)

(9)

(1)

(10)
