Electrostatic Discharge Simulator
1
Conforming to IEC61000-4-2
ESD Simulator
ESS-2000AX ESS-2000AX
& &
TC-815R TC-815R
FEATURES
Fully programmable menu-driven simulator providing three
operation modes: IEC standard, Manual and Sequence
A 5.7-inch color LCD for easy setting and good visibility
Unique shape for the operator's easy access to the controls
and displays even when the unit is put on the floor level
(ground plane)
Communications with PC through the optic serial interface
A wide variety of the dedicated options
■
•
•
•
•
•

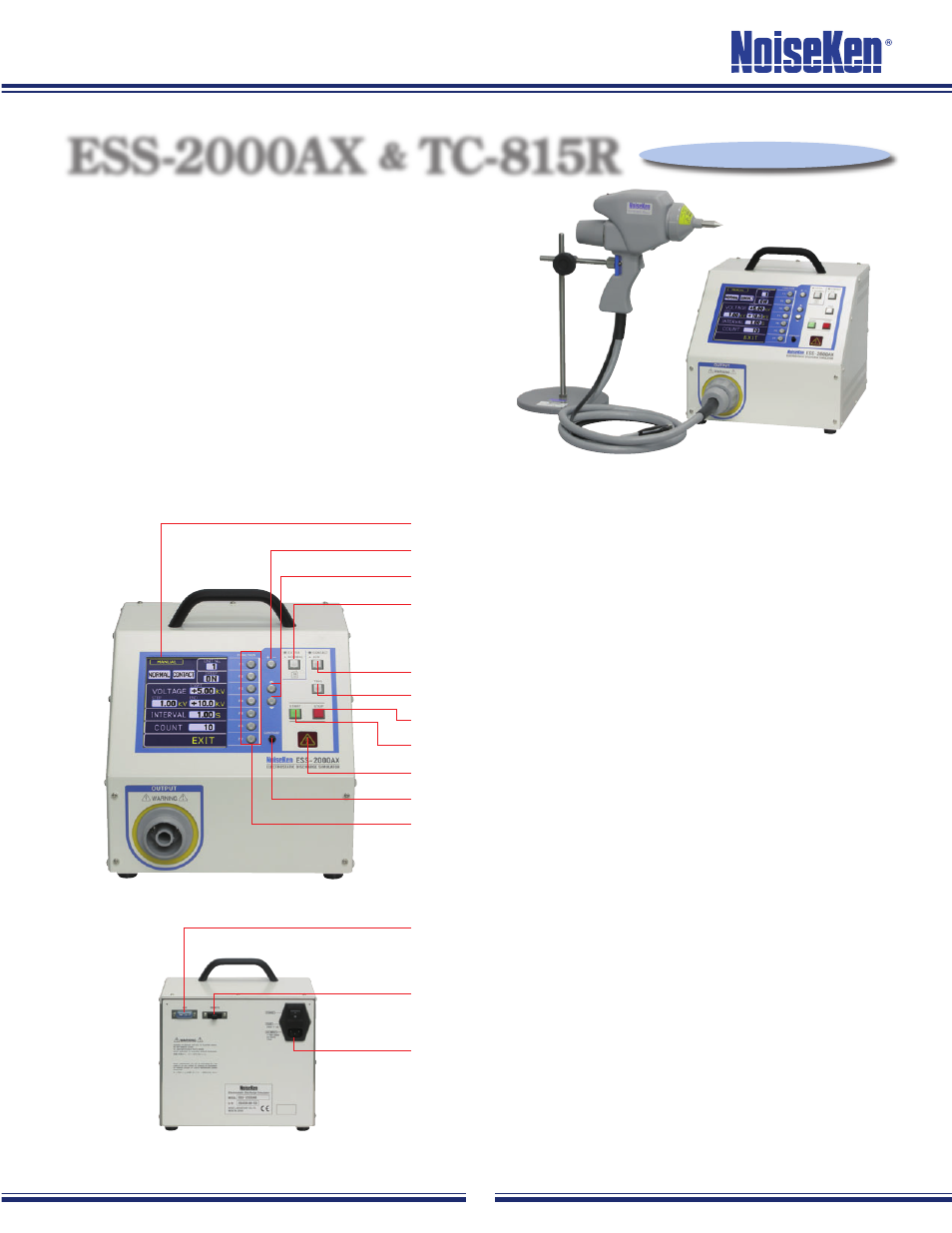

CONTROLS INDICATORS AND TERMINALS
■
LCD panel: displays the settings of various test parameters
Polarity select key: selects the desired polarity
Increment and decrement keys: change the value for the selected parameter
TRIG key: starts the test. This key works when the unit is set to ESS (main unit) trigger.
Discharge mode key: selects either Air or Contact discharge
STOP key: turns off the HV circuitry
START key: turns on the HV circuitry
Warning lamp: alight while the HV is on and blinks while discharges are in progress
Contrast adjustment: rotating the knob adjusts the contrast of the LCD screen
Function keys: the relevant active functions or parameters are shown in the display
Radiation level select key:
provides the selection of NORMAL or EXTRA in terms of the strength of radiation
from the discharge gun. The EXTRA mode reduces the radiation. In the EXRA
mode, faster than 1.0s setting for discharge interval is not accepted.
AUX connector: interface with auxiliary devices such as Automatic ESD Eliminator
(option), Warning Lamp (option),
external trigger and interlock circuits. Optional
AUX connector junction box enables two or three devices to be used
simultaneously.
REMOTE connector: communicates with the user's PC through this optic RS232C
interface
AC input
ESS-2000AX & TC-815R (with PS-806 gun stand)
