Electrostatic Discharge Simulator
8
Conforming to IEC61000-4-2

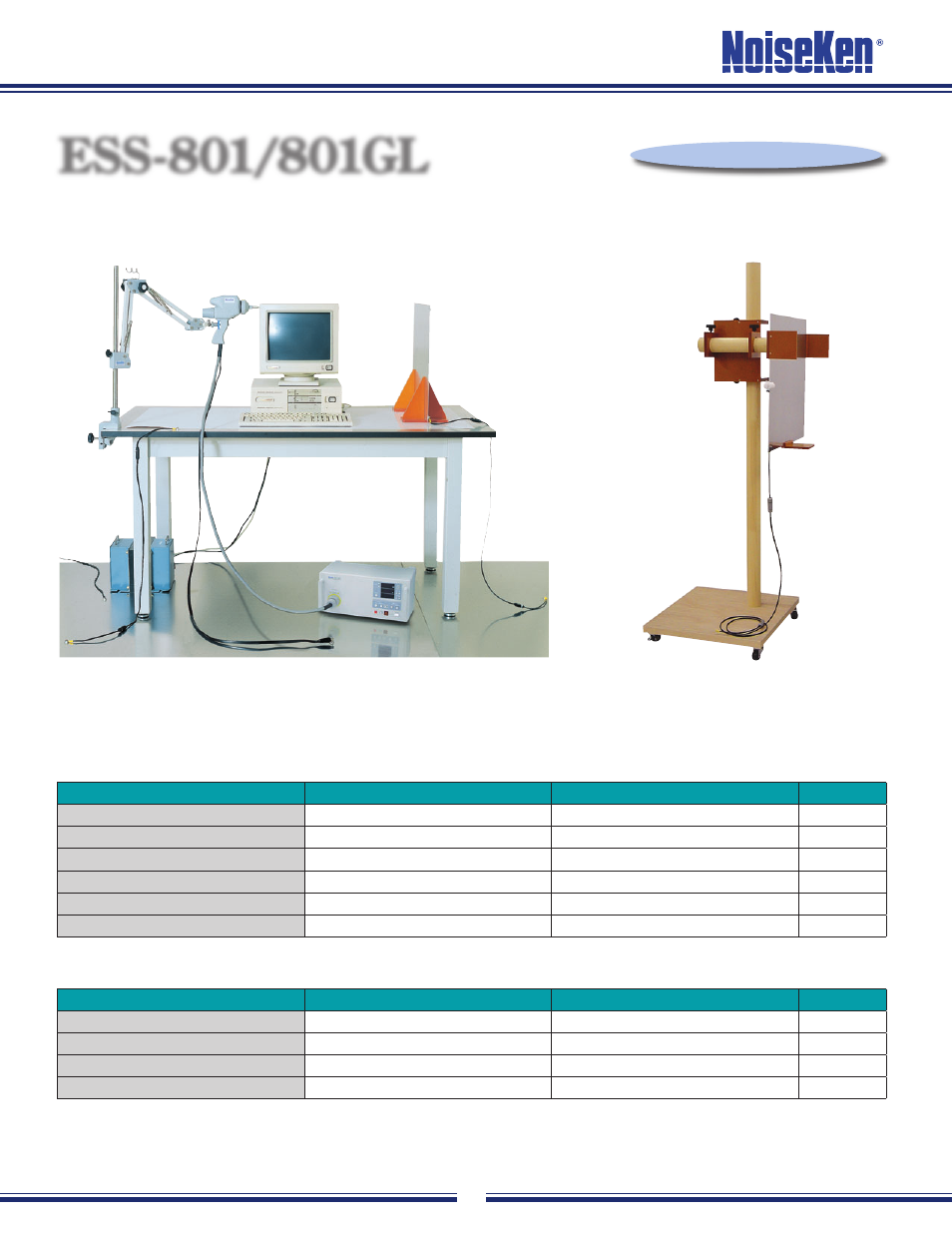

ESD Test Environment
ESS-801/801GL ESS-801/801GL
A complete package to easily build up the ESD test(laboratory test)
set-up called for in the IEC standard.
CONSTITUTION OF ESS-801(TABLE TYPE)
■
Description Model Dimensions Quantity
Testing table 03-00039A (W)1600×(H)800×(D)800mm 1
Vertical coupling plane 03-00005A (W)500×(H)500×(t)1.5mm 1
Ground plane 03-00007A (W)1800×(H)1000×(t)1.5mm 3
Insulating sheet 03-00004A (W)1450×(H)650×(t)0.5mm 1
Cable with discharge resistors 05-00054B 470kΩ×2 2
Horizontal coupling plane 03-00020A (W)1600×(H)800×(t)1.5mm 1
Description Model Dimensions Quantity
Insulation pallet 03-00024A (W)1200×(H)1200×(t)100mm 1
Vertical coupling plane base 03-00034A (W)540×(H)1540×(D)500mm 1
Ground plane 03-00007A (W)1800×(H)1000×(t)1.5mm 3
Cable with discharge resistors 05-00054B 470kΩ×2 1
CONSTITUTION OF ESS-801GL(FLOOR TYPE)
■
Test set-up example with ESS-801 ESS-801GL
(Vertical coupling plane & Cable with resistors)
