JD72OC SerieS Cable anD antenna analyzerS

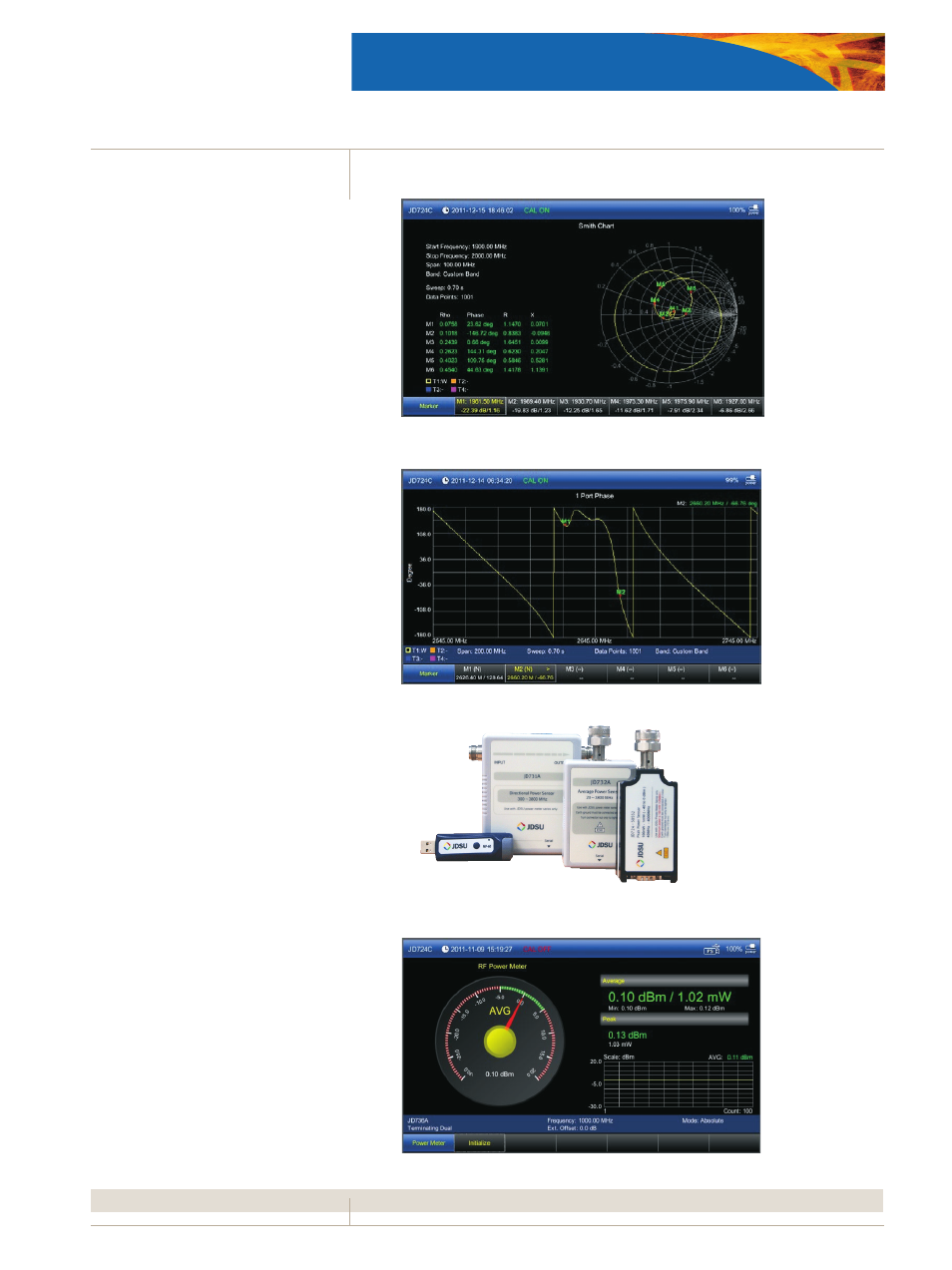

Smith charts can be used to display imped-
ance matching characteristics in cable and
antenna systems as well RF devices.
Users can set up to 6 markers for trace analy-
sis.
1-Port phase measures S11 phase to tune
antennas and phase-match cables.
Users can set up to 6 markers for trace analy-
sis.
Optional power meter functions enable easy,
comprehensible power measurements using
external power sensors.
• JD72450551/2: Economic RF power sen-
sors via serial connection
• JD730 Series: High-precision RF power
sensors via USB connection
• MP60/80: Optical power sensors via USB
connection
The optional power meter displays the
power level in two formats: as a real-time
power level value in an analog meter and as
a power level trend through time in a histo-
gram chart. Its configurable settings include
display range, maximum and minimum
limits, and power units in dBm or watts.
Users can set minimum and maximum
power limits for an automatic pass/fail indi-
cation.
1-Port phase
Power sensors
Power meter
Smith chart
