4
Spectral Purity
All specifications apply at the lesser of +10 dBm output or maximum specified leveled
output power, unless otherwise noted.
Spurious Signals

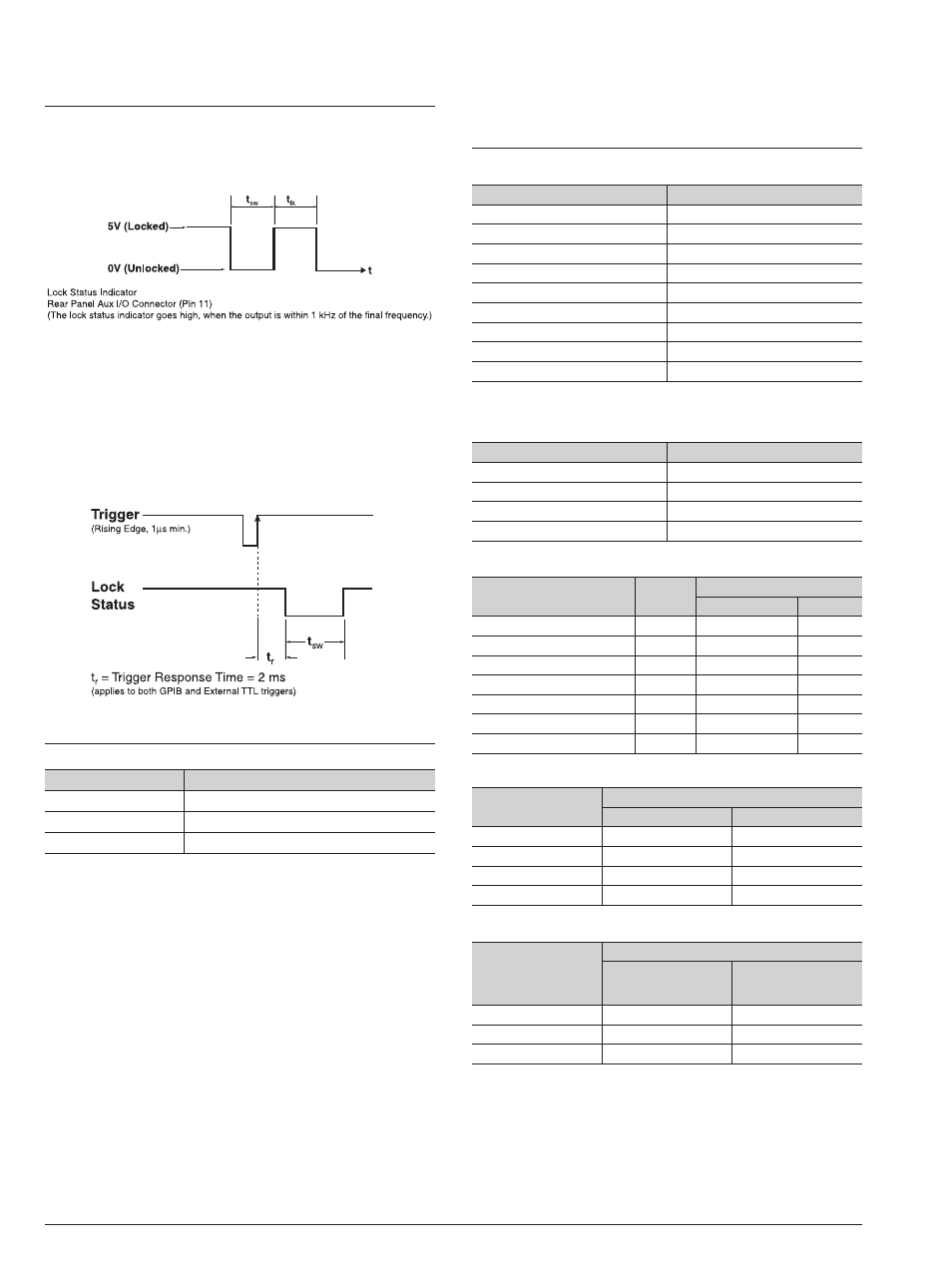

Frequency Switching Time
Definitions
Free Running Mode:
(Step or List Sweep)
t
sw
= Switching Time, Unlocked
t
lk
= Locked Time = 1ms + t
dw
t
dw
= Dwell Time, after locking. Selectable, 1 ms minimum
t
lk
(min) = 2 ms
Single Frequency Trigger Mode:
(List, non-sequential, and CFx modes)
Switching Time (t
sw
)
Power Line and Fan Rotation Spurious Emissions (dBc):
Residual FM (CW and Step Sweep modes, 50 Hz - 15 kHz BW):
Non-harmonics:
AM Noise Floor:
Typically <–145 dBm/Hz at 0 dBm output and offsets >5 MHz from carrier.
Residual FM (Analog Sweep and Unlocked FM modes, 50 Hz - 15 kHz BW):
* –30 dBc typical with high power Option 15
¦ 20 GHz to 21 GHz and 39 - 40 GHz – 20 dBc typical
Harmonic and Harmonically-related:
t
sw
* (ms) Condition
5 ms + 1 ms/GHz step not starting at, or crossing dwell frequencies
7 ms + 1 ms/GHz (typical) step not starting at, or crossing band switching frequencies
8 ms + 1 ms/GHz (typical) step starting at, or crossing band switching frequencies
Frequency Range Standard
0.1 Hz to 10 MHz (Option 22) <–30 dBc
10 MHz to ≤100 MHz (Option 4) <–40 dBc
>100 MHz to ≤2.2 GHz (Option 4) <–50 dBc
10 MHz to ≤50 MHz (Option 5) <–30 dBc
>50 MHz to ≤2 GHz (Option 5) <–40 dBc
>2 GHz (2.2 GHz w/Option 4) to ≤20 GHz <–60 dBc*
>20 GHz to ≤40 GHz <–40 dBc* ¦
>40 GHz to ≤50 GHz (MG3695B) <–40 dBc*
>40 GHz to ≤67 GHz (MG3696B) <–25 dBc
Frequency Range Standard
0.1 Hz to 10 MHz (Option 22) <–30 dBc
10 MHz to ≤2.2 GHz (Option 4) <–60 dBc
10 MHz to ≤2 GHz (Option 5) <–40 dBc
>2 GHz (2.2 GHz w/Option 4) to ≤67 GHz <–60 dBc
Frequency <300 Hz
Offset from Carrier
300 Hz to 1 kHz >1 kHz
10 to ≤500 MHz (Option 4) <–68 <–72 <–72
>500 to ≤1050 MHz (Option 4) <–62 <–72 <–72
>1050 to ≤2200 MHz (Option 4) <–56 <–66 <–66
0.01 to ≤8.4 GHz <–50 <–60 <–60
>8.4 to ≤20 GHz <–46 <–56 <–60
>20 to ≤40 GHz <–40 <–50 <–54
>40 to ≤67 GHz <–34 <–44 <–48
Frequency Range
Residual FM (Hz RMS)
Option 3 Standard
≤ 8.4 GHz <40 <120
>8.4 to 20 GHz <40 <220
>20 to ≤40 GHz <80 <440
>40 to ≤67 GHz <160 <880
Frequency Range
Residual FM (kHz RMS)
Unlocked Narrow
FM mode
Unlocked Wide
FM mode or
Analog Sweep (typ.)
0.01 to ≤20 GHz <5 <25
>20 GHz to ≤40 GHz <10 <50
>40 GHz to ≤67 GHz <20 <100
Band Switching Dwell Frequencies: 2 (2.2 w/Opt. 4), 10, 20, 40 GHz
Filter Switching Dwell Frequencies: 3.3, 5.5, 8.4, 13.25, 25, 32 GHz
<2.2 GHz w/Opt. 4: 12.5, 15.625, 22.5, 31.25, 43.75, 62.5, 87.5,
125, 175, 250, 350, 500, 700, 1050, 1500
MHz
*Not applicable with FM mode active
