5
Agilent models: 6651A, 6652A, 6653A, 6654A, 6655A

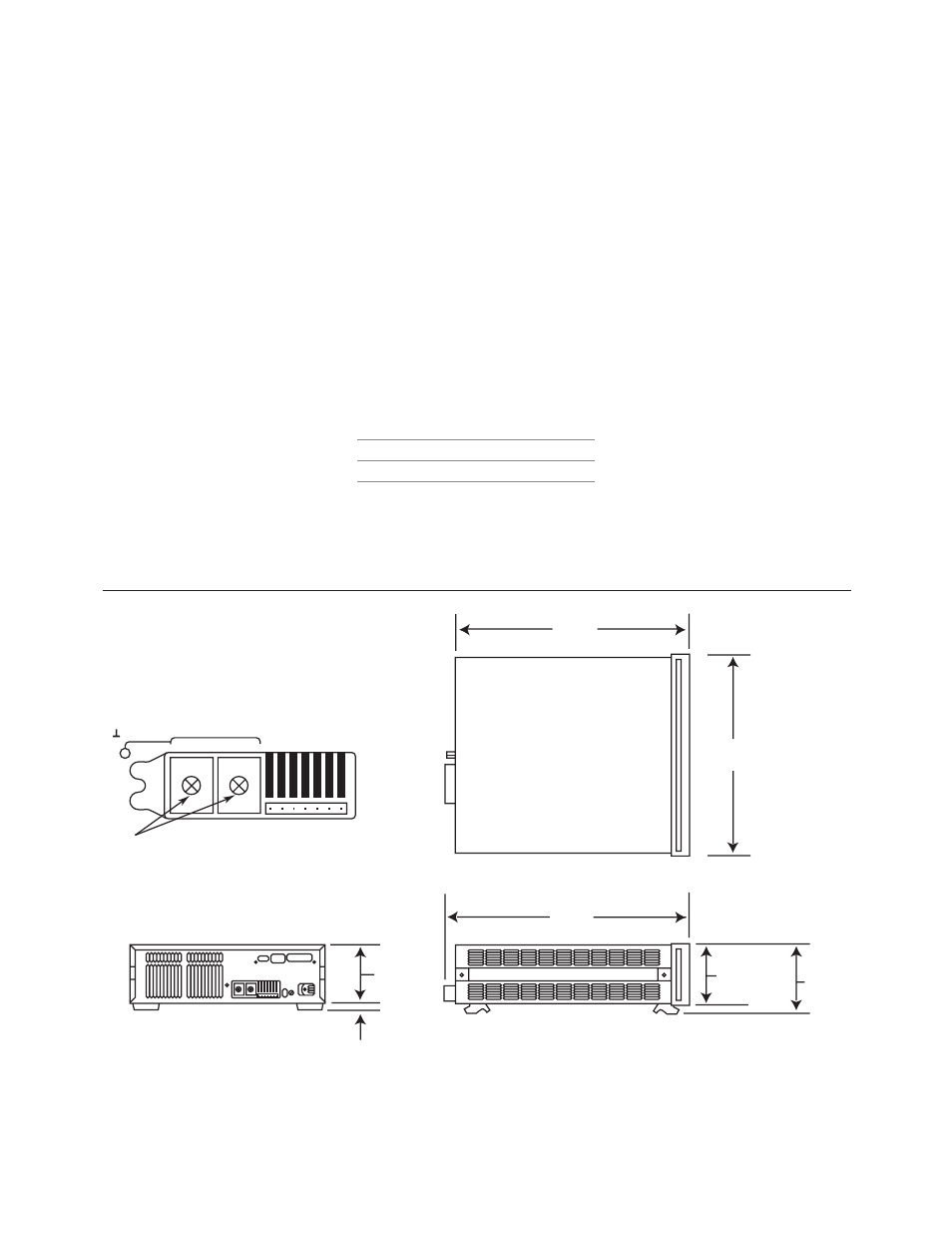

425.5 mm
16.75"
497.8 mm
19.6"
518.2 mm
20.4"
128 mm
5.04"
12.7 mm
0.5"
132.6 mm
5.2"
145.1 mm
5.71"
Terminal Screw Size: 6-32 x 5/16 in
Metric Pan Head, M4 x 0.7 x 8 mm long
(center to center on these two screws is 20 mm, typ)
+
+
–
–
+ –
+ –
Top
Side
Rear
Rear Output
IP
VDC Max
VP IM IM+P S S
Supplemental characteristics
for all model numbers
DC floating voltage: Output terminals
can be floated up to ± 240 VDC from
chassis ground
Remote sensing: Up to half the rated
output voltage can be dropped in each
load lead. The drop in the load leads
subtracts from the voltage available
for the load.
Command processing time: Average
time required for the output voltage to
begin to change following receipt of
digital data is 20 ms for the power
supplies connected directly to the GPIB
Output programming response time:
The rise and fall time (10/90% and
90/10%) of the output voltage is less
than 15 ms. The output voltage change
settles within 1 LSB (0.025% x rated
voltage) of final value in less than 60 ms.
Down programming: An active down
programmer sinks approximately 20%
of the rated output current
Modulation: (Analog programming of
output voltage and current)
Input signal: 0 to –5 V
Input impedance: 10 kΩ nominal
AC input:
(AC input frequency 47 to 63 Hz)
Voltage 100 VAC 120 VAC 220 VAC 240 VAC
Current 12 A
10 A
5.7 A
5.3 A
Input power: 1,380 VA, 1,100 W at full
load; 120 W at no load
GPIB interface capabilities:
SH1, AH1, T6, L4, SR1, RL1, PP0, DC1,
DT1, E1, and C0. IEEE-488.2 and SCPI-
compatible command set.
Software driver:
• IVI-COM
• VXIplug&play
Regulatory compliance: Listed to
UL 1244; conforms to IEC 61010-1.
Size:
425.5 mm W x 132.6 mm H x 497.8 mm D
(16.75 in x 5.22 in x 19.6 in)
Weight: Net, 25 kg (54 lb);
shipping, 28 kg (61 lb)
Warranty: One year
