SPECIFICATIONS -2
Model 62012P-600-8 62024P-40-120 62024P-80-60 62024P-100-50 62024P-600-8 62050P-100-100
Output Ratings
Output Voltage 0~600V 0~40V 0~80V 0~100V 0~600V 0~100V
Output Current 0~8A 0~120A*1 0~60A 0~50A 0~8A 0~100A
Output Power 1200W 1200~2400W*1 2400W 2400W 2400W 5000W
Line Regulation
Voltage 0.01%+18mV 0.01%+2mV 0.01%+8mV 0.01%+10mV 0.01%+18mV 0.01%+8mV
Current 0.03%+20mA 0.01%+25mA 0.01%+10mA 0.01%+12mA 0.03%+20mA 0.01%+24mA
Load Regulation
Voltage 0.01%+50mV 0.01%+3mV 0.01%+12mV 0.01%+18mV 0.01%+50mV 0.01%+12mV
Current 0.03%+40mA 0.01%+10mA 0.01%+20mA 0.01%+28mA 0.03%+40mA 0.01%+56mA
Voltage Measurement
Range 120V/600V 8V / 40V 16V/80V 20V/100V 120V / 600V 20V/100V
Accuracy 0.05%+0.05%F.S. 0.05%+0.05%F.S. 0.05%+0.05%F.S. 0.05%+0.05%F.S. 0.05%+0.05%F.S. 0.05%+0.05%F.S.
Current Measurement
Range 1.6A/8A 24A / 120A 12A/60A 10A/50A 1.6A / 8A 20A/100A
Accuracy 0.1%+0.1%F.S. 0.1%+0.1%F.S. 0.1%+0.1%F.S. 0.1%+0.1%F.S. 0.1%+0.1%F.S. 0.1%+0.1%F.S.
Output Noise (0 ~ 20MHz)
Voltage Ripple (P-P)
180 mV 90 mV 100 mV 100 mV 180 mV 50 mV
Voltage Ripple (rms) 90 mV 10 mV 10 mV 15 mV 90 mV 15 mV
Current Ripple (rms) 60 mA 120 mA 30 mA 20 mA 60 mA 40 mA
OVP Adjustment Range
110% of Vset
to 110% of Vmax
110% of Vset
to 110% of Vmax
110% of Vset
to 110% of Vmax
110% of Vset
to 110% of Vmax
110% of Vset
to 110% of Vmax
110% of Vset
to 110% of Vmax
Slew Rate Range
Voltage (with USB) 0.01V - 10V/ms 0.001V - 5V/ms 0.001V - 10V/ms 0.001V - 10V/ms 0.01V - 10V/ms 0.001V - 10V/ms
Current (with USB) 0.001A - 1A/ms 0.001A - 1A/ms 0.001A - 1A/ms 0.001A - 1A/ms 0.001A - 1A/ms 0.001A - 2A/ms
Programming Response Time (Typical)
Rise Time (Full & No Load) 60 ms 8 ms 8 ms 10 ms 60 ms 10 ms
Fall Time 5 s(max) 460ms(max) 240 ms(max) 300 ms(max) 5 s(max) 850 ms(max)
Efficiency 0.8 0.85 0.85 0.85 0.85 0.85
Drift (8 hours)
Voltage 0.02% of Vmax 0.02% of Vmax 0.02% of Vmax 0.02% of Vmax 0.02% of Vmax 0.02% of Vmax
Current 0.04% of Imax 0.04% of Imax 0.04% of Imax 0.04% of Imax 0.04% of Imax 0.04% of Imax
Temperature Coefficient
Voltage
0.02% of
Vmax/℃
0.02% of
Vmax/℃
0.02% of Vmax/℃ 0.02% of Vmax/℃
0.02% of
Vmax/℃
0.02% of Vmax/℃
Current 0.04% of Imax/℃ 0.04% of Imax/℃ 0.04% of Imax/℃ 0.04% of Imax/℃ 0.04% of Imax/℃ 0.04% of Imax/℃
Transient Response Time 3mS 3mS 3mS 3mS 3mS 3mS
10 % step change 600 mV 150 mV 250 mV 250 mV 600mV 250 mV
Voltage limit @ Series
Mode
800V 200V 400V 500V 800V 500 V
AC Input Voltage Ranges 95 to 250Vac
190 to 250Vac
(single phase)
190 to 250Vac
(single phase)
190 to 250Vac
(single phase)
190 to 250Vac
(single phase)
190 to 250Vac
(3 phase 4 wire, Delta connection)
or 342 to 440Vac
(3phase 5 wire, Y connection)
Operating Temperature 0~40℃ 0~40℃ 0~40℃ 0~40℃ 0~40℃ 0~40℃
Dimensions (H x W x D) 89 x 430 x 425 mm / 3.5 x 16.93 x 16.73 inch
176 x 428 x 566 mm /
6.93 x 16.85 x 22.28 inch
Weight 11.2 kg / 24.67lbs 13 kg / 28.63 lbs 12.2 kg / 26.87 lbs 13 kg / 28.63 lbs 13 kg / 28.63 lbs 28 kg / 61.67 lbs
All specifications are subject to change without notice. Please visit our website for the most up to date specifications.
Note *1 : The max. power limit of 2400W is under output voltage 22V~40V, and see the diagram below for operating power envelope.
62006P-30-80: Programmable DC Power Supply, 30V/80A/600W
62006P-100-25: Programmable DC Power Supply, 100V/25A/600W
62006P-300-8: Programmable DC Power Supply, 300V/8A/600W
62012P-40-120: Programmable DC Power Supply, 40V/120A/1200W
62012P-80-60: Programmable DC Power Supply, 80V/60A/1200W
62012P-100-50: Programmable DC Power Supply, 100V/50A/1200W
62012P-600-8: Programmable DC Power Supply, 600V/8A/1200W
62024P-40-120: Programmable DC Power Supply, 40V/120A/2400W
62024P-80-60: Programmable DC Power Supply, 80V/60A/2400W
62024P-100-50: Programmable DC Power Supply, 100V/50A/2400W
62024P-600-8: Programmable DC Power Supply, 600V/8A/2400W
62050P-100-100: Programmable DC Power Supply, 100V/100A/5000W
A620004: GPIB Interface for Model 62000P Series
A620006: Rack mounting kit for Model 62000P Series (2U model)
A620009: Softpanel for 62000P Series
A620015: Rack mounting kit for Model 62050P-100-100
A620023: Ethernet/LXI Interface for Model 62000P Series
ORDERING INFORMATION

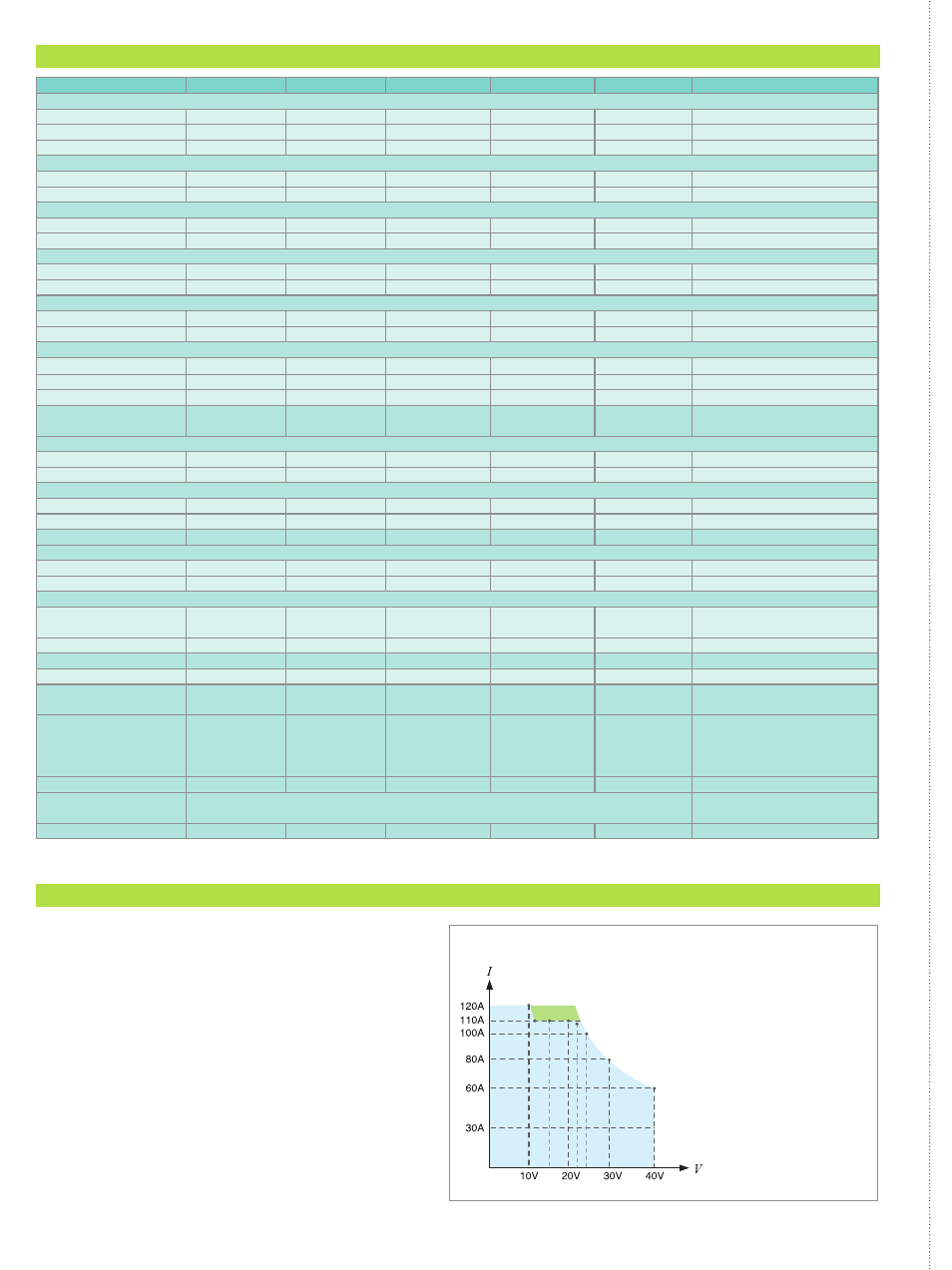

The green area is over specification due to
low voltage (<22V) & high current output (>110A).
The following is operation power envelope :
(10V/120A), (11V/110A), (15V/110A),
(20V/110A), (22V/109A), (24V/100A),
(30V/80A), (40V/60A).
Model 62024P-40-120
