Atec Chroma-62000P Series - Manual (Page 4)

ISO 16750-2 4.5.1 Momentary Drop In
Supply Voltage

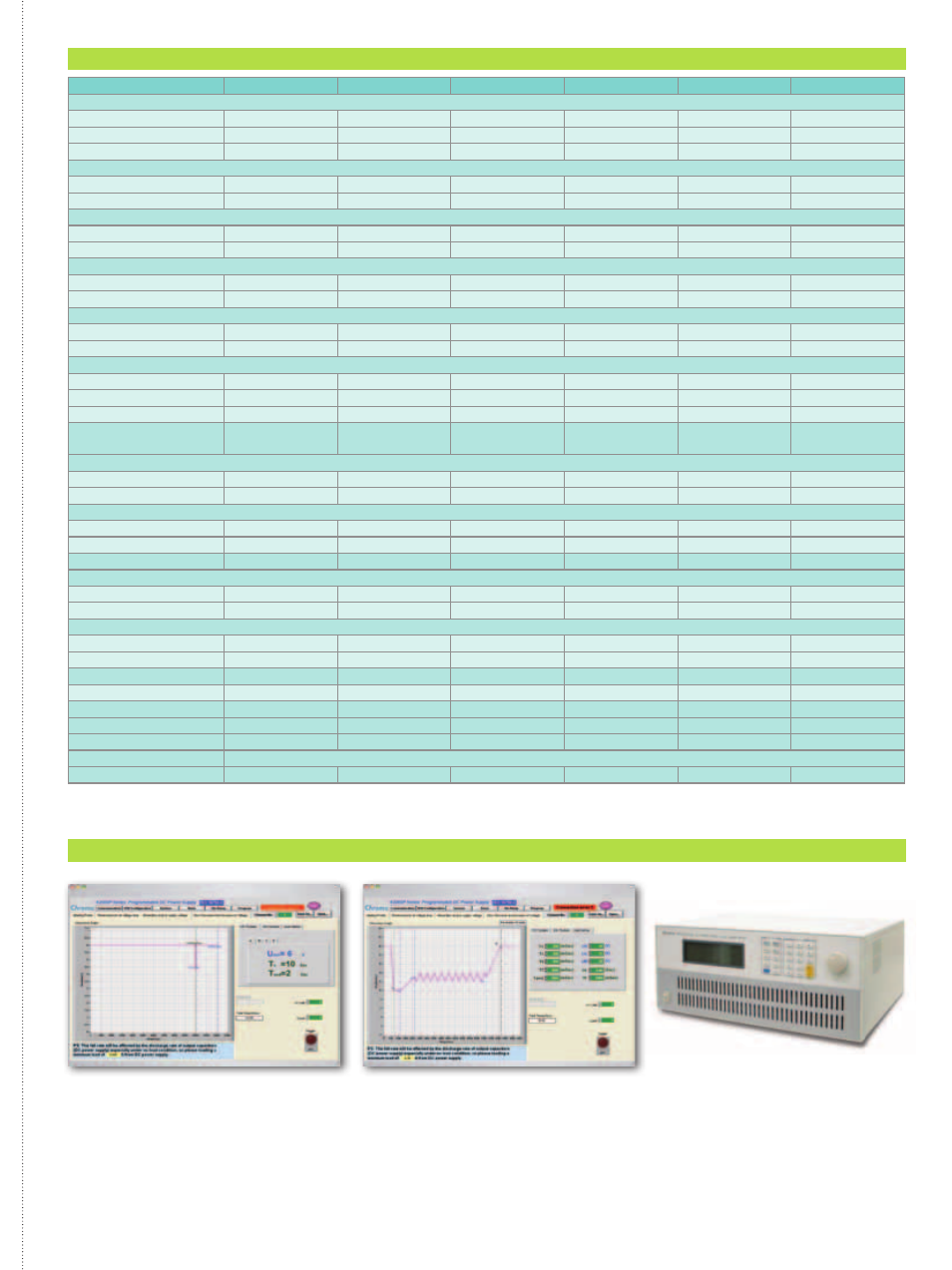

Model 62006P-30-80 62006P-100-25 62006P-300-8 62012P-40-120 62012P-80-60 62012P-100-50
Output Ratings
Output Voltage
0~30V 0~100V 0~300V 0~40V 0~80V 0~100V
Output Current 0~80A 0~25A 0~8A 0~120A 0~60A 0~50A
Output Power 600W 600W 600W 1200W 1200W 1200W
Line Regulation
Voltage
0.01%+2mV 0.01%+6mV 0.01%+18mV 0.01%+2mV 0.01%+8mV 0.01%+10mV
Current 0.01%+25mA 0.01%+5mA 0.03%+20mA 0.01%+25mA 0.01%+10mA 0.01%+12mA
Load Regulation
Voltage
0.01%+3mV 0.01%+10mV 0.01%+50mV 0.01%+3mV 0.01%+12mV 0.01%+18mV
Current 0.01%+10mA 0.01%+5mA 0.03%+40mA 0.01%+10mA 0.01%+20mA 0.01%+28mA
Voltage Measurement
Range
6V/30V 20V/100V 60V/300V 8V/40V 16V/80V 20V/100V
Accuracy 0.05% + 0.05%F.S. 0.05% + 0.05%F.S. 0.05% + 0.05%F.S. 0.05% + 0.05%F.S. 0.05% + 0.05%F.S. 0.05% + 0.05%F.S.
Current Measurement
Range
16A/80A 5A/25A 1.6A/8A 24A / 120A 12A/60A 10A/50A
Accuracy 0.1% + 0.2%F.S. 0.1% + 0.2%F.S. 0.1% + 0.1%F.S. 0.1% + 0.1%F.S.. 0.1% + 0.1%F.S. 0.1% + 0.1%F.S.
Output Noise (0 ~ 20MHz)
Voltage Ripple (P-P)
60 mV 85 mV 180 mV 90 mV 100 mV 100 mV
Voltage Ripple (rms) 8 mV 10 mV 90 mV 10 mV 10 mV 15 mV
Current Ripple (rms) 60 mA 10 mA 60 mA 120 mA 30 mA 20 mA
OVP Adjustment Range
110% of Vset to
110% of Vmax
110% of Vset to
110% of Vmax
110% of Vset to
110% of Vmax
110% of Vset to
110% of Vmax
110% of Vset to
110% of Vmax
110% of Vset
to 110% of Vmax
Slew Rate Range
Voltage (with USB)
0.001V - 5V/ms 0.001V - 10V/ms 0.01V - 10V/ms 0.001V - 5V/ms 0.001V - 10V/ms 0.001V - 10V/ms
Current (with USB) 0.001A - 1A/ms 0.001A - 1A/ms 0.001A - 1A/ms 0.001A - 1A/ms 0.001A - 1A/ms 0.001A - 1A/ms
Programming Response Time (Typical)
Rise Time (Full & No Load) 6 ms 10 ms 30 ms 8 ms 8 ms 10 ms
Fall Time 350ms(max) 300 ms(max) 2.5 s(max) 460 ms(max) 240 ms(max) 300 ms(max)
Efficiency 0.75 0.75 0.75 0.8 0.8 0.8
Drift (8 hours)
Voltage
0.02% of Vmax 0.02% of Vmax 0.02% of Vmax 0.02% of Vmax 0.02% of Vmax 0.02% of Vmax
Current 0.04% of Imax 0.04% of Imax 0.04% of Imax 0.04% of Imax 0.04% of Imax 0.04% of Imax
Temperature Coefficient
Voltage
0.02% of Vmax/℃ 0.02% of Vmax/℃ 0.02% of Vmax/℃ 0.02% of Vmax/℃ 0.02% of Vmax/℃ 0.02% of Vmax/℃
Current 0.04% of Imax/℃ 0.04% of Imax/℃ 0.04% of Imax/℃ 0.04% of Imax/℃ 0.04% of Imax/℃ 0.04% of Imax/℃
Transient Response Time 3 mS 3 mS 3mS 3mS 3 mS 3 mS
10 % step change 150 mV 180 mV 600 mV 150 mV 250 mV 250 mV
Voltage limit @ Series Mode 150V 500V 800V 200V 400V 500V
AC Input Voltage Ranges 95 to 250Vac 95 to 250Vac 95 to 250Vac 95 to 250Vac 95 to 250Vac 95 to 250Vac
Operating Temperature 0~40℃ 0~40℃ 0~40℃ 0~40℃ 0~40℃ 0~40℃
Dimension (H x W x D) 89 x 430 x 425 mm / 3.5 x 16.93 x 16.73 inch
Weight 12kg / 26.43 lbs 12.1 kg / 26.65 lbs 11.2 kg / 24.67 lbs 12kg / 26.43 lbs 13 kg / 28.63 lbs 12.1 kg / 26.65 lbs
All specifications are subject to change without notice. Please visit our website for the most up to date specifications.
SPECIFICATIONS -1
SOFTPANEL
ISO 16750-2 4.5.3 Starting Profile 62050P-100-100
