BTS Master™ Base Station Analyzer Features
Line Sweep Tools and Master Software Tools (for your PC)
Line Sweep Features
Presets
7 sets of 6 markers and 1 limit line
Next trace capability
File Types
Input: HHST DAT, VNA Measurements: Return Loss
(VSWR), Cable Loss, DTF-RL, DTF-VSWR, PIM
Output: LS DAT, VNA, CSV, PNG, BMP, JPG, PDF
Report Generator
Logo, title, company name, customer name,
location, date and time, filename, PDF, HTML,
all open traces
Tools
Cable Editor
Distance to Fault
Measurement calculator
Signal Standard Editor
Renaming Grid
Interfaces
Serial, Ethernet, USB
Capture Plots to
Screen, Database, DAT files, JPEG, Instrument
Master Software Tools Features
Database Management
Full Trace Retrieval
Trace Catalog
Group Edit
Trace Editor
Data Analysis
Trace Math and Smoothing
Data Converter
Measurement Calculator
Mapping (GPS Required)
Spectrum Analyzer Mode
Mobile WiMAX OTA Option
TS-SCDMA OTA Option
LTE, both FDD and TDD Options
Folder Spectrogram
Folder Spectrogram – 2D View
Video Folder Spectrogram – 2D View
Folder Spectrogram – 3D View
List/Parameter Editors
Traces
Antennas, Cables, Signal Standards
Product Updates
Firmware Upload
Pass/Fail
VSG Pattern Converter
Languages
Mobile WiMAX
Display
Script Master™
Channel Scanner Mode
GSM/GPRS/EDGE Mode
W-CDMA/HSDPA Mode
Connectivity
Ethernet, USB
Download measurements and live traces
Upload Lists/Parameters and VSG Patterns
Firmware Updates
Remote Access Tool over the Internet
Line Sweep Tools
Line Sweep Tools increases productivity
for people who deal with dozens of Cable
and Antenna traces, or Passive Inter-
Modulation (PIM) traces, every day.
User Interface
Line Sweep Tools has a user interface that
will be familiar to users of Anritsu’s Hand
Held Software Tools. This will lead to a
short learning curve.
Marker and Limit Line Presets
Presets make applying markers and a limit
line to similar traces, as well as validating
traces, a quick task.
Renaming Grid
A renaming grid makes changing file
names, trace titles, and trace subtitles
from field values to those required for a
report much quicker than manual typing
and is less prone to error.
Report Generator
The report generator will generate a
professional looking PDF of all open
traces with additional information such as
contractor logos and contact information.
Master Software Tools
Master Software Tools (MST) is a powerful
PC software post-processing tool designed
to enhance the productivity of technicians
in data analysis and testing automation.
Folder Spectrogram
Folder Spectrogram – creates a composite
file of up to 15,000 multiple traces for
quick review, also create:
• Peak Power, Total Power, and Peak
Frequency plotted over time
• Histogram – filter data and plot
number of occurrences over time
• Minimum, Maximum, and Average
Power plotted over frequency
• Movie playback – playback data in
the familiar frequency domain view
• 3D Spectrogram – for in-depth
analysis with 3-axis rotation viewing
control
Script Master™
Script Master is an automation tool which
allows the user to embed the operator’s
test procedure inside the BTS Master for
GSM/EDGE and W-CDMA/HSDPA. This
feature is available for GSM/EDGE and
W-CDMA/HSDPA applications.
Using Channel Scanner Script Master,
the user can create a list of up to 1200
channels and let the BTS Master sequence
through the channels 20 at a time,
automatically making measurements.

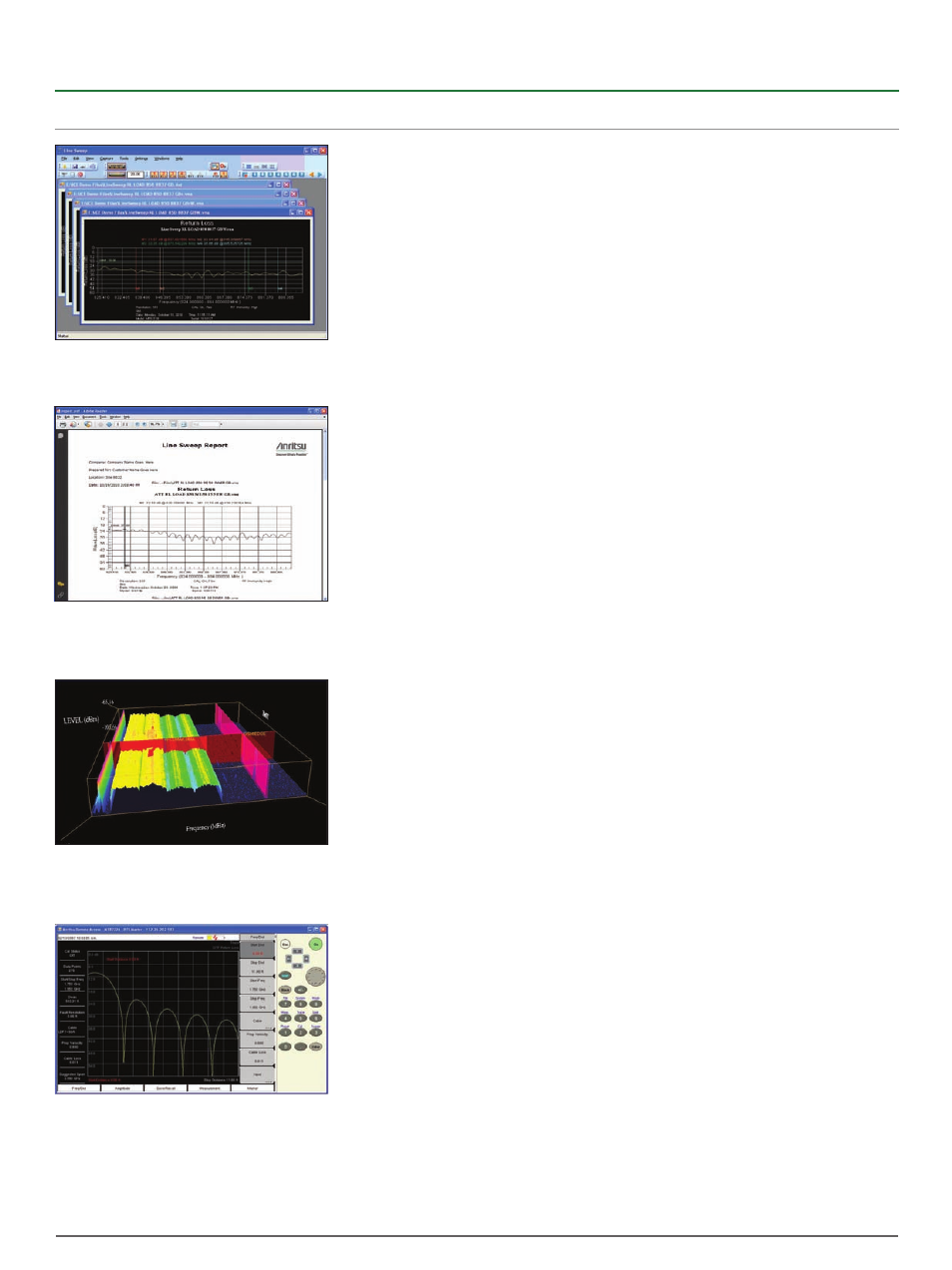

Trace Validation
Marker and Limit Line presets allow quick checks of
traces for limit violations
Report Generation
Create reports with company logo, GPS tagging
information, calibration status, and serial number of
the instrument for complete reporting.
3D Spectrogram
For in-depth analysis with 3-axis rotation viewing,
threshold, reference level, and marker control.
Turn on Signal ID to see the types of signals.
Remote Access Tool
The Remote Access Tool allows supervisors to remotely
view and control the instrument over the Internet.
