BTS Master™ Base Station Analyzer Features
Vector Signal Generator Option (Option 0023)
Set-up Parameters
Frequency
Amplitude
Trigger (for modulated signals)
Pattern Manager
Modulation
Modulation Edit
RF (On/Off)
Standard Signal Patterns
AM
FM
Pulsed CW
EDGE – Continuous
W-CDMA Pilot
DECT 16 QAM – Continuous
DECT 64 QAM – Continuous
DVB-C
J.83C Digital Cable
64 QAM – US Digital Cable
User-defined Signal Patterns
(Sampling Rate, Bandwidth)
12.500 MHz, 10 MHz
6.250 MHz, 5.0 MHz
1.625 MHz, 1.2 MHz
Vector Signal Generator (VSG)
The BTS Master’s Vector Signal Generator
is designed to be a signal source to
facilitate base station field testing of the
receiver’s basic performance when it
comes to:
• Sensitivity
• Adjacent Channel Selectivity
• Blocking
• Intermodulation Rejection
The BTS Master has the flexibility to
generate three signals in a variety of
combinations:
• Modulated, CW, AWGN
(Additive White Gaussian Noise)
• Wanted Signals (modulated or CW)
• One signal at 10 MHz or less
(with no interferer present)
• One signal at 5 MHz or less
(with interferer present)
• With or without AWGN
• Interferer (modulated or CW)
• One interferer at 5 MHz or less
• With or without AWGN
The BTS Master has the ability to output
complex waveforms. As an example,
you generate a W-CDMA signal and a
GSM interferer. It offers the capability to
generate complex waveforms including:
• LTE, TD-LTE
• W-CDMA, HSPA
• TD-SCDMA, TD-HSPA
• GSM, GPRS, EDGE
• CDMA2000 1X, 1x EV-DO
• Fixed WiMAX, Mobile WiMAX
• AM, FM
• QPSK, QAM
The BTS Master VSG has an output power
range to meet most testing requirements
from -124 dBm to 0 dBm.
Users can define their patterns in either
MATLAB
® or ASCII. Master Software Tools
Patter Converter can upload them into the
BTS Master.
At the initial release the MT822xB will have
a set of basic signals and other patterns
will be added on a periodic basis.
(Check the Technical Datasheet for the
latest specifications and pattern offerings.)

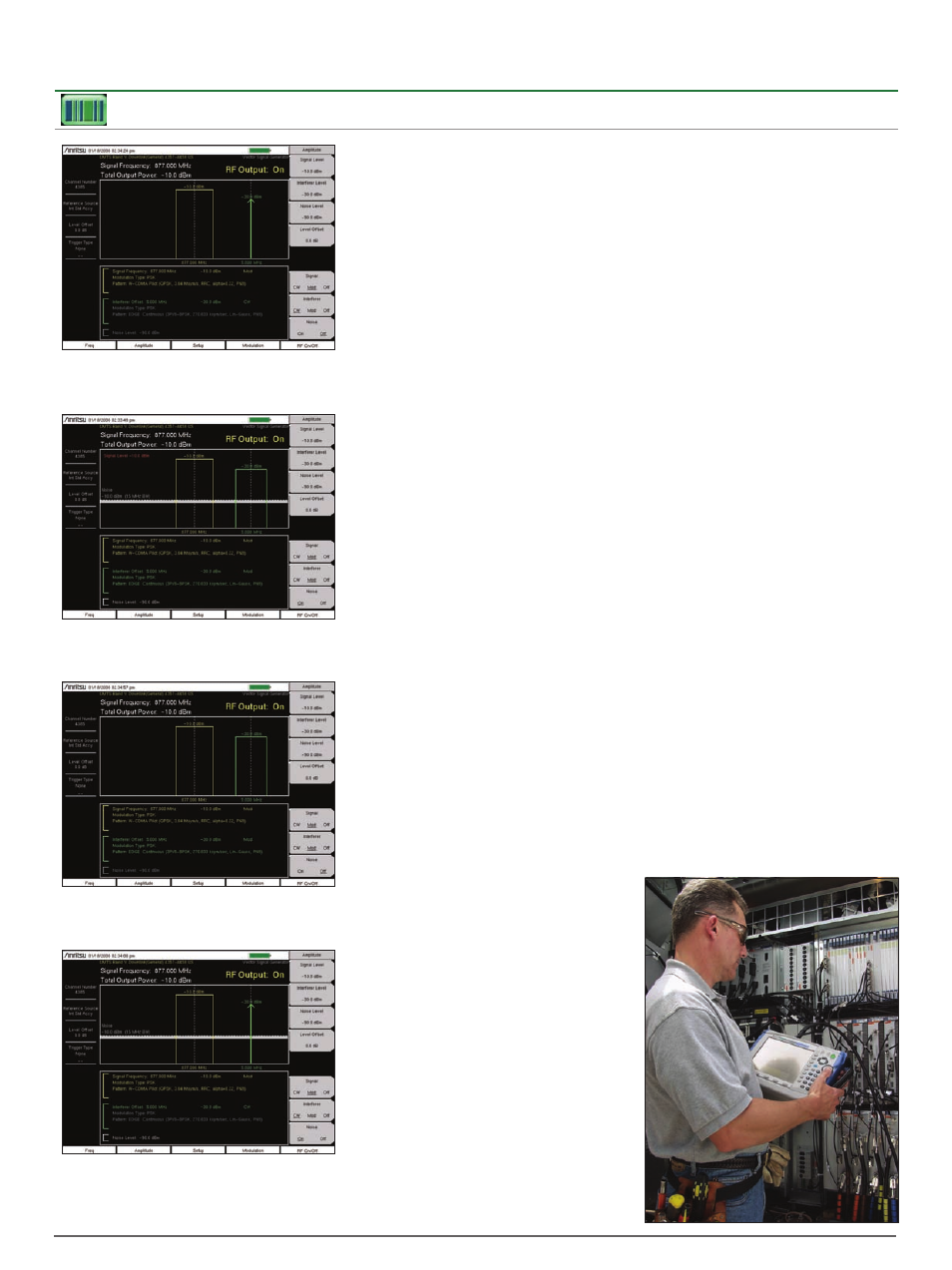

Sensitivity Test Set-up
Wanted Signal: Modulated
Interferer: CW
AWGN: Off
Intermodulation Rejection Test Set-up
Wanted Signal: Modulated
Interferer: CW
AWGN: On
Blocking Test Set-up
Wanted Signal: Modulated
Interference: Modulated
AWGN: Off
Adjacent Channel Selectivity Test Set-up
Wanted Signal: Modulated
Interferer: Modulated
AWGN: On
