Model: Product Type: 3036
AIR BELT SANDER (10 x 330MM)
The oil and water extractor should not be mounted on or near the air
compressor.
The temperature of air is greatly increased during compression. As the air
cools down to room temperature, in the air line, on its way to the Air Power
Tool, the moisture contained in it condenses. Thus, for maximum
effectiveness, the oil and water extractor should be mounted at some point
in the air supply system where the temperature of the compressed air in the
line is likely to be lowest. Air lines must be properly drained daily. Each low
point in an air line acts as a water trap. Such points should be fitted with an
easily accessible drain. See diagram below. Pitch all air lines back towards
the compressor so that condensed moisture will flow back into the air
receiver where it can be drained off. Drain daily.

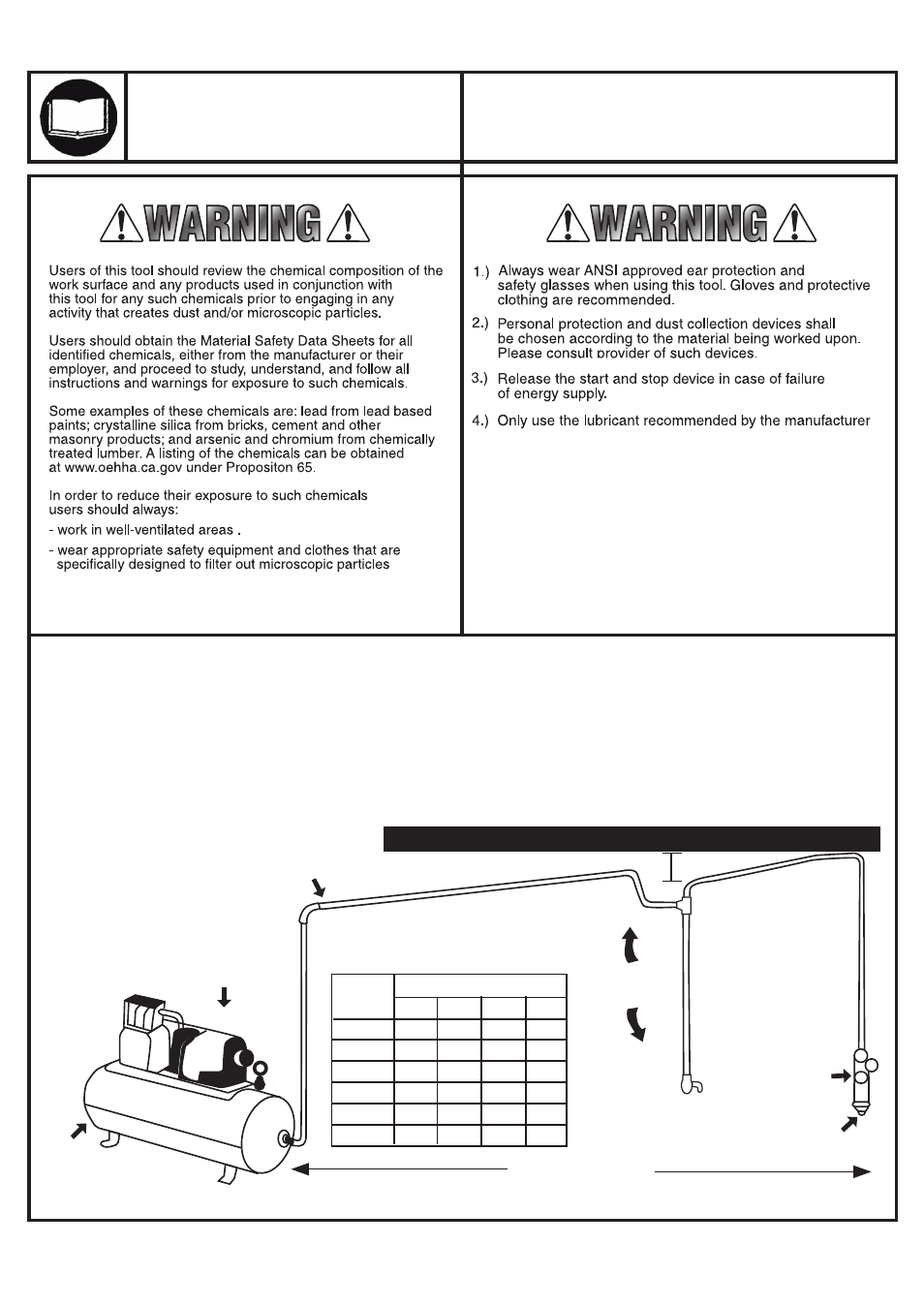

SUGGESTED AIR LINE CONNECTION
Pitch pipe back toward air receiver
Compressor unit
Drain
Daily
25 FEET OR MORE
Oil and Water Extractor should be at least 25 ft. from the compressor. Further if possible.
Drain
Daily
Drain
Daily
Oil and Water
Extractor
Install drain at
each low point
PIPE SIZE, I.D. (Inches)
Air Flow
CFM
Length of Pipe (feet)
10
20
30
40
50
70
50
1/2"
3/4"
3/4"
1"
1"
1"
100
3/4"
3/4"
3/4"
1"
1"
1"
150
3/4"
3/4"
1"
1"
1"
1-1/4"
200
3/4"
1"
1"
1"
1-1/4"
