Model: Product Type: 3036
AIR BELT SANDER (10 x 330MM)

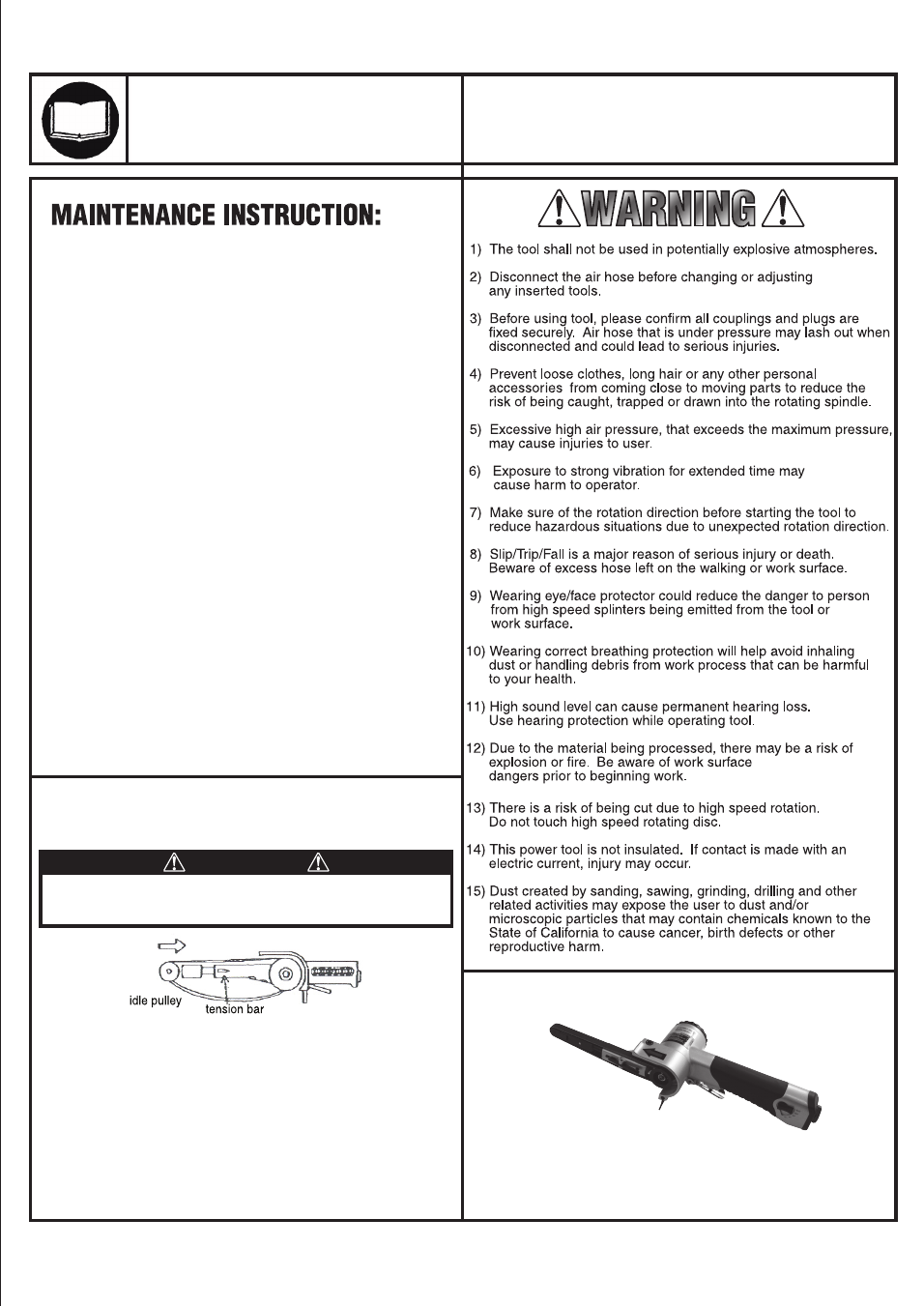

Replacing The Sand Belt
Disengage and remove the sand belt from the idle pulley. Push the
idle pulley in the direction shown below. Replace a new belt.
AIR BELT SANDER (10 x 330MM)
Also Sold Separately:
• 30361 - 10pc. Sanding Belt 80 Grit - 3/8" x 13" (10mm x 330mm)
• 30362 - 10pc. Sanding Belt 100 Grit - 3/8" x 13" (10mm x 330mm)
• 30363 - 10pc. Sanding Belt 120 Grit - 3/8" x 13" (10mm x 330mm)
Adjust Tracking
If the sand belt is not centered on the idle please follow direction
to center the belt. Adjust the hexagon socket head bolt on the idle
pulley bracket with accessory hexagon wrench key until centering
is correct. Turn the hexagon socket counter clockwise to move the
belt towards the bracket and vice versa.
WARNING
Keep your hands and all foreign objects away from the idle pulley.
Push tension bar indicated on the drawing and the sand belt
will be propped into the ready position.
1.) LUBRICATION:
Before connection of the hose, apply 4 to 5 drops of a good
quality air tool oil at the air inlet. After 3 to 4 hours of
operation, oiling may be necessary again.
3.) STORAGE:
Avoid storing the tool in a location subject to high humidity. If
the tool is left unused, the residual moisture inside the tool
can cause rust. Before storing and after operation, oil the tool
at the air inlet with a good quality air tool oil and run it for a
short period.
4.) DISPOSAL:
Follow national legislation of waste disposal.
5.) ORDERING SERVICE PARTS:
For further operational and handling information or for
replacement of parts and components, contact the sales
agent from where you purchased the tool, or the service
division of our company, phone number 800-221-9705.
*When ordering parts and components, give each part
number, name, and quantities.
2.) TIGHTNESS OF PARTS:
Regularly check whether all connection parts are
fastened securely. Follow this procedure daily
before beginning work.
