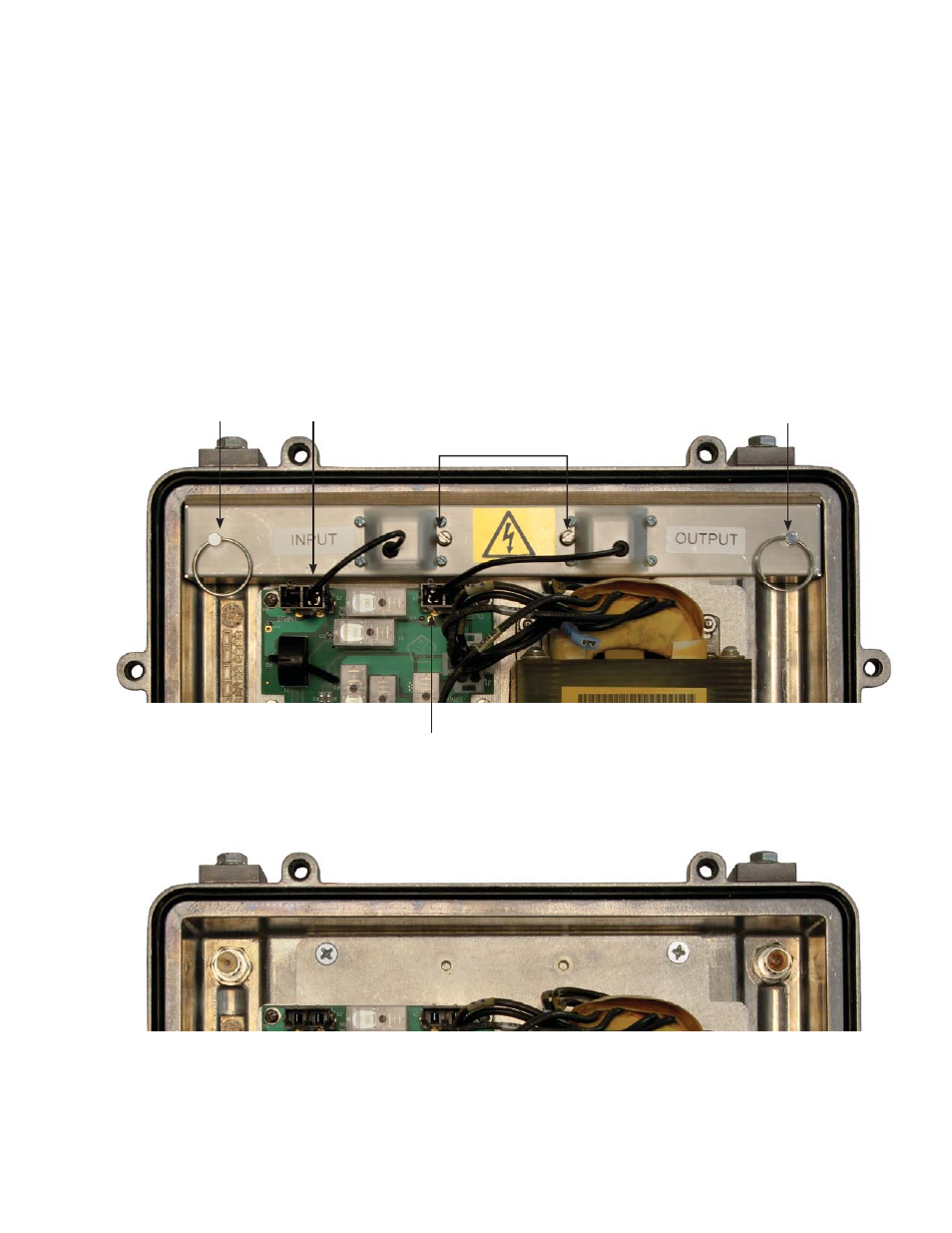

Fig. 2-4, RF Module Removal

2.0 Installation,

continued

2.4 RF Module Removal

Tools Required:

•

No. 2 Flat head screwdriver

Procedure:

1. Disconnect the two Molex connectors (Output, J4, Input, J5).

2. Loosen the two captive screws near the center of the module.

3. Grasp the pull rings with your index fi ngers and pull fi rmly away from the enclosure.

Pull Ring

Captive Screws

Disconnect per step 1

Fig. 2-5, RF Module Removed
