Drill only in the fi ve locations indicated below. Center punches marked with a “ ” (6 places) below
are reserved for the storm hood kit.
CAUTION!
Tools Required:
• Drill
• 3/16" (4.8mm) or #12 drill bit
• Phillips screwdriver
Installation Procedure:
1. Drill 3/16" (4.8mm) through-holes in the door at
the locations shown (5 places).
2. Install the solar shield to the door, using the
screws provided: #8-32 x 3/8" (9.5mm) with
square cone washer.
3. Drill 3/16" (4.8mm) through-holes in the sides of
the enclosure in the locations shown (7 places
total).
4. Install the small shield on the left side and
the large shield on the right using the screws
provided.
2
4 3
Drill In
Three Places
Drill In
Four Places
This kit fi ts only PWE-8 enclosures manufactured after April 2002.
NOTE:
2.0 Installation, continued
2.8 PWE-8 Solar Shield Installation
Array of louvers covering
front door No louvers on
sides
Incompatible Enclosures Compatible Enclosures
Drill Here.
1

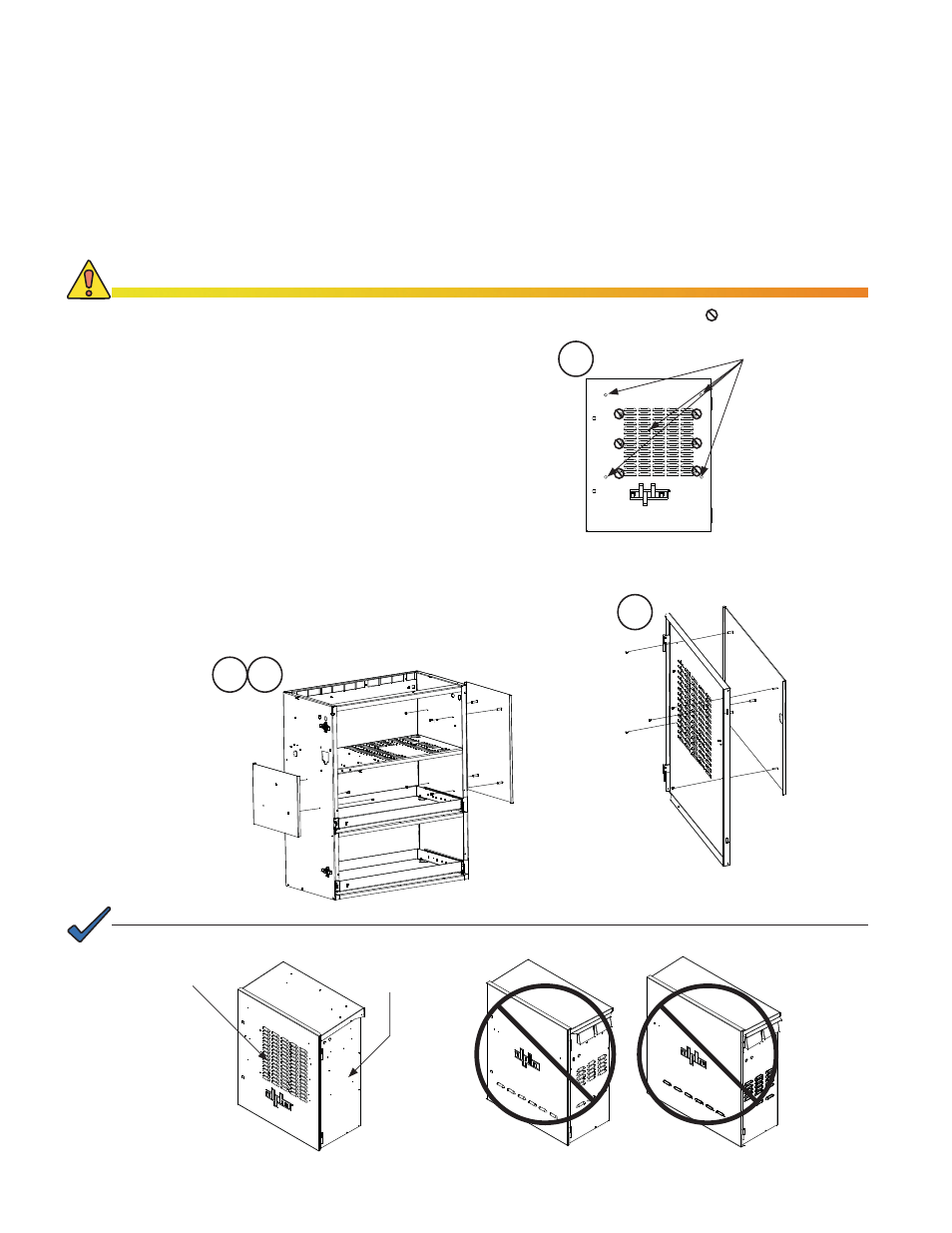

Fig. 2-35, PWE-8 Solar Shield Installation
