27 031-161-B0-006, Rev. F
2.0 Installation, continued
2.2 Ground-mount Installation, PWE-4, PWE-8, PWE-9, PWE-D36, continued
2.2.4 PWE-4 and PWE-8 Ground-mount Installation, continued
This kit is only compatible with enclosures manufactured after April 2002.
NOTE:
No louvers
on sides
Array of Louvers
Covering Front Door
Compatible Enclosures Incompatible Enclosures

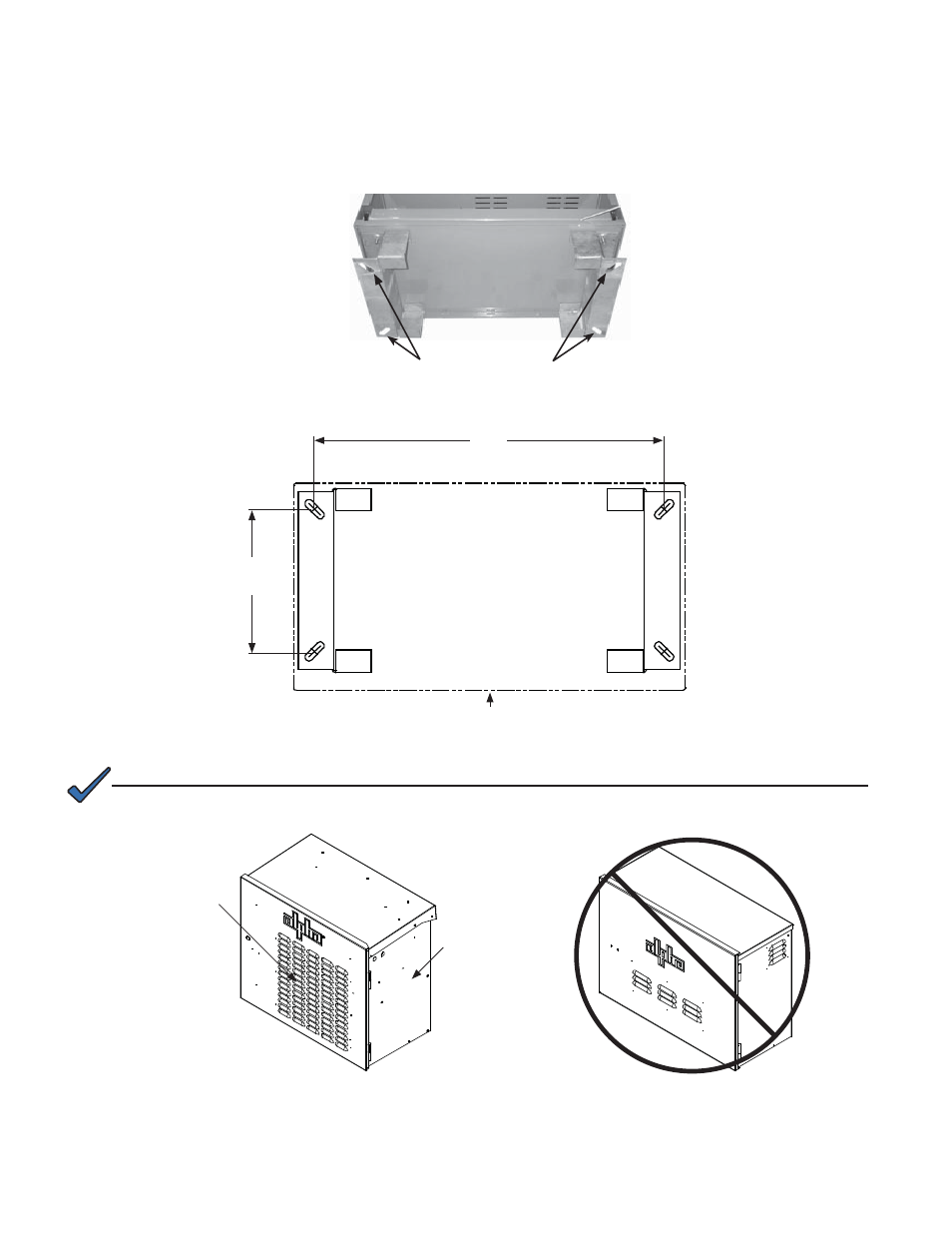

Fig. 2-11, Enclosures Manufactured Before and After April 2002.
Fig. 2-9, Ground-mounting Brackets, Installed
Fig. 2-10, Enclosure Ground-mount Footprint
27"
(685.8mm)
Front of Enclosure
Anchor Bolt Locations
11"
(279.4mm)
