3 pad shear magnetic switch replacement – Alpha Technologies AlphaGen PN-6x-T 7.5kW 48VDC - Installation and Operation Manual User Manual
Page 63

745-020-B0-003, Rev. C
63

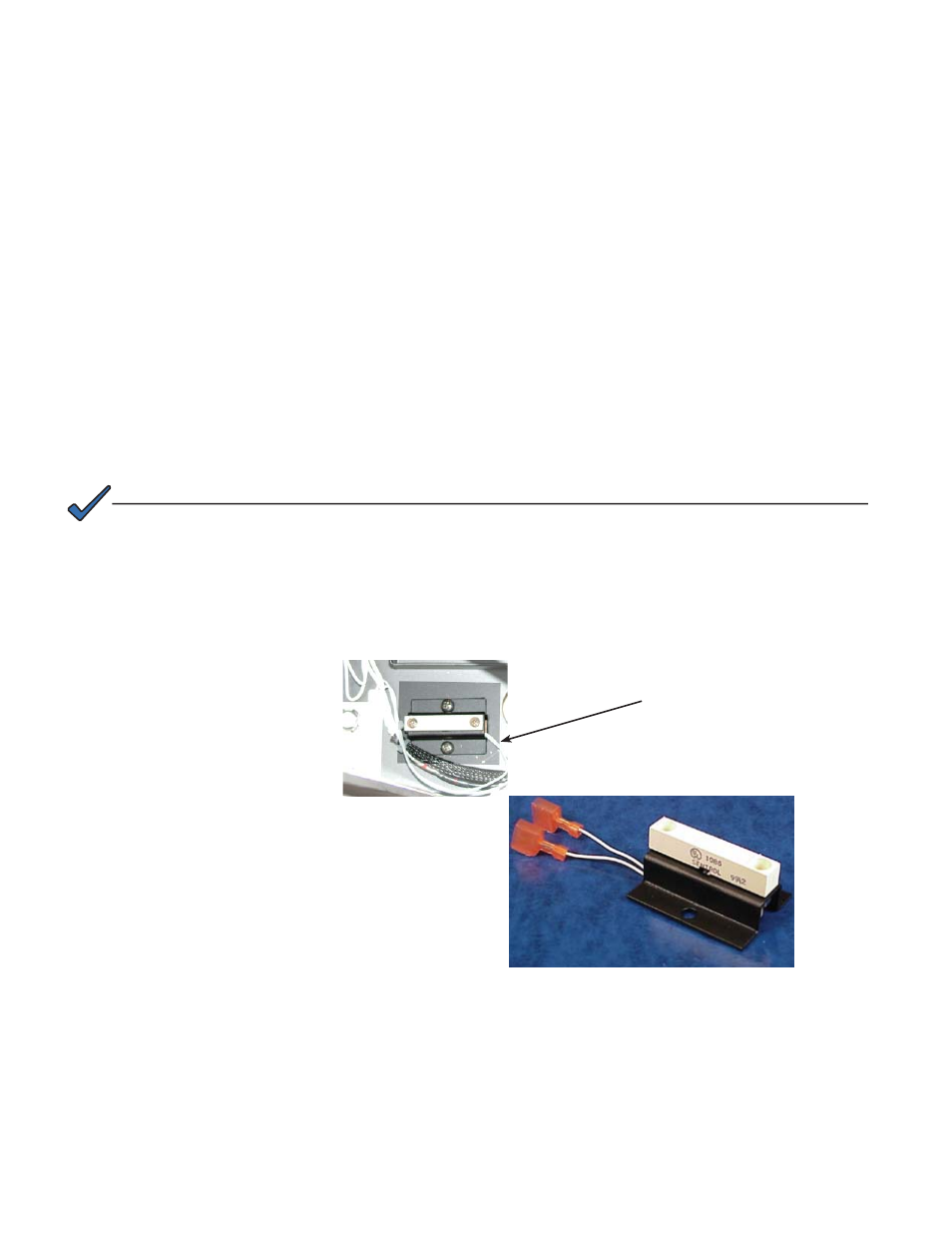

Fig. 7-2, Pad Shear Sensor
7.0 Maintenance,
continued
7.3 Pad Shear Magnetic Switch Replacement
Required Tools:
#2 Phillips screwdriver
1. Unlock and remove rear enclosure door.
2. Locate the Pad Shear switch on the left side of the enclosure fl oor.
3. Remove the two screws holding the switch bracket to the fl oor.
4. Disconnect electrical connections, and remove the switch assembly (inset).
5. Unbolt the switch from the bracket, and replace.
6. Reinstall in reverse order.
Electrical connections are NOT polarized. Leads can be connected in any order.
Pad Shear
Sensor
NOTE:
