Page 49

745-020-B0-003, Rev. C
49

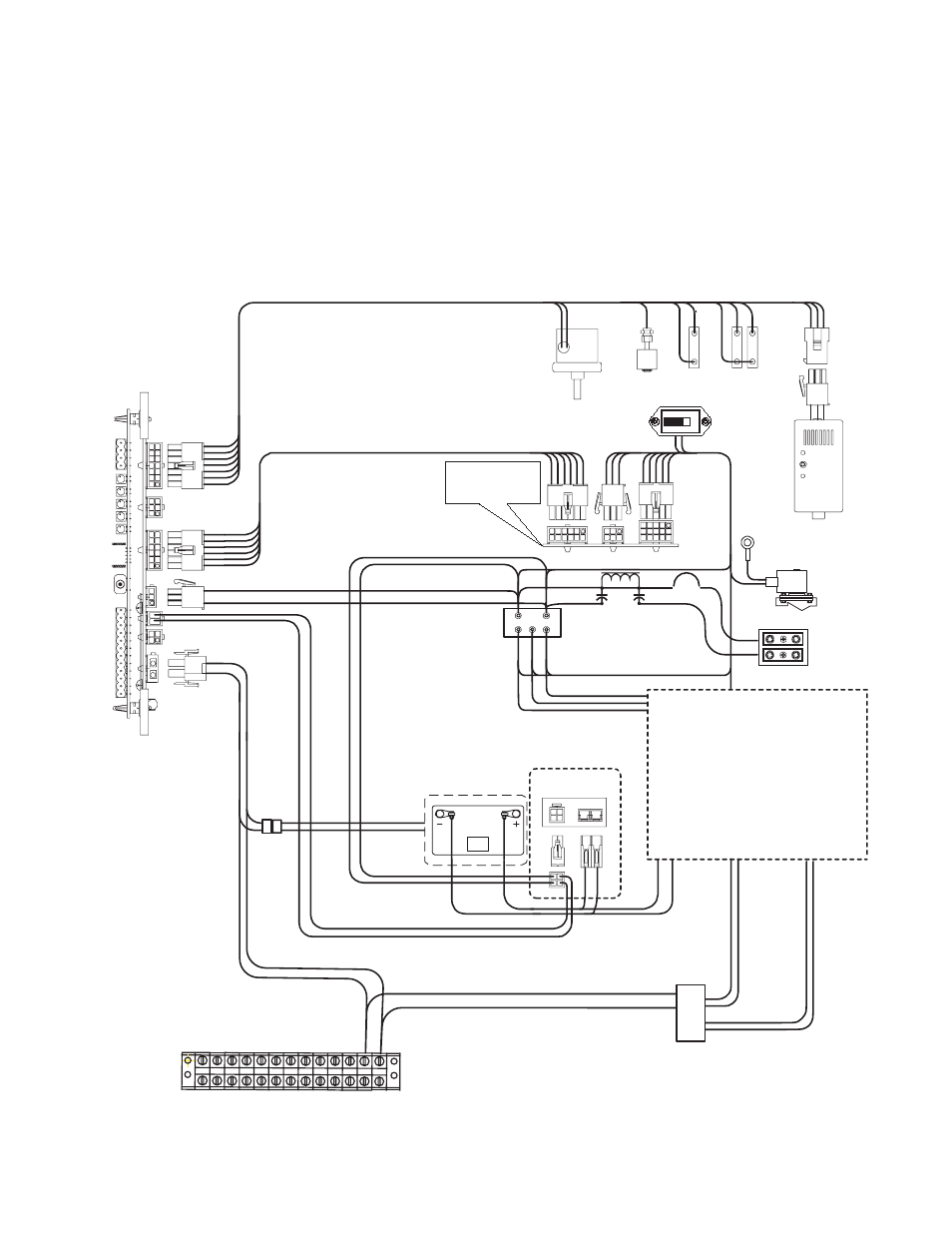

Fig. 4-8, ECM/APU Interconnection
4.0
The Engine Control Module, continued
4.9 ECM Interface Block Diagram and Connectors
The Generator Remote Interface provides power conditioning to the ECM PCB, and
connection between cabinet sensors and the APU control. The interface supplies all
necessary signals, alarms, logic power, and analog voltages required for telemetry at the
head end. These signals are also supplied to the central offi ce, or network manager, to
allow the Alpha Systems control module to start and stop the engine alternator as part of the
network controlled periodic test sequence.
1
2
Engine/Alternator
Ignition
Battery
Output
AC
Gen.
Control
Signals
Fuel
Solenoid
Gas
Detector
Tamper
Pad
Shear
Water
Intrusion
Ignition
Battery
Ignition
BatteryCharger
Fuel Low
Pressure
Switch
(Propane Only)
Generator
Control Board
Output
Rectifier
QUARTZ
00 1
5
Hour
Meter
Battery heater mat
Engine
Block
Heater
Carb
Heater
Duplex
Outlet
NOT A
SERVICE
OUTLET
Inductor
Cap
Cap
PN-6X-T (48V) PI Filter
CB
Pin 1
Pin 1
ECM
