Page 30
30
745-020-B0-003, Rev. C
Ground Stud
1" Opening
3" Opening
3.0 Installation,
continued
3.4 Enclosure
Grounding
It is the responsibilty of the system installer to verify applicable grounding requirements, and to ensure that
system grounding complies with all state, local, or regional requirements.
Run the chassis and earth grounding wires through the one-inch opening in the bottom of
the generator enclosure. Using a 7/16" nutdriver or socket, secure the ground leads to the
grounding stud located on the enclosure wall. See Fig. 3-5 below.

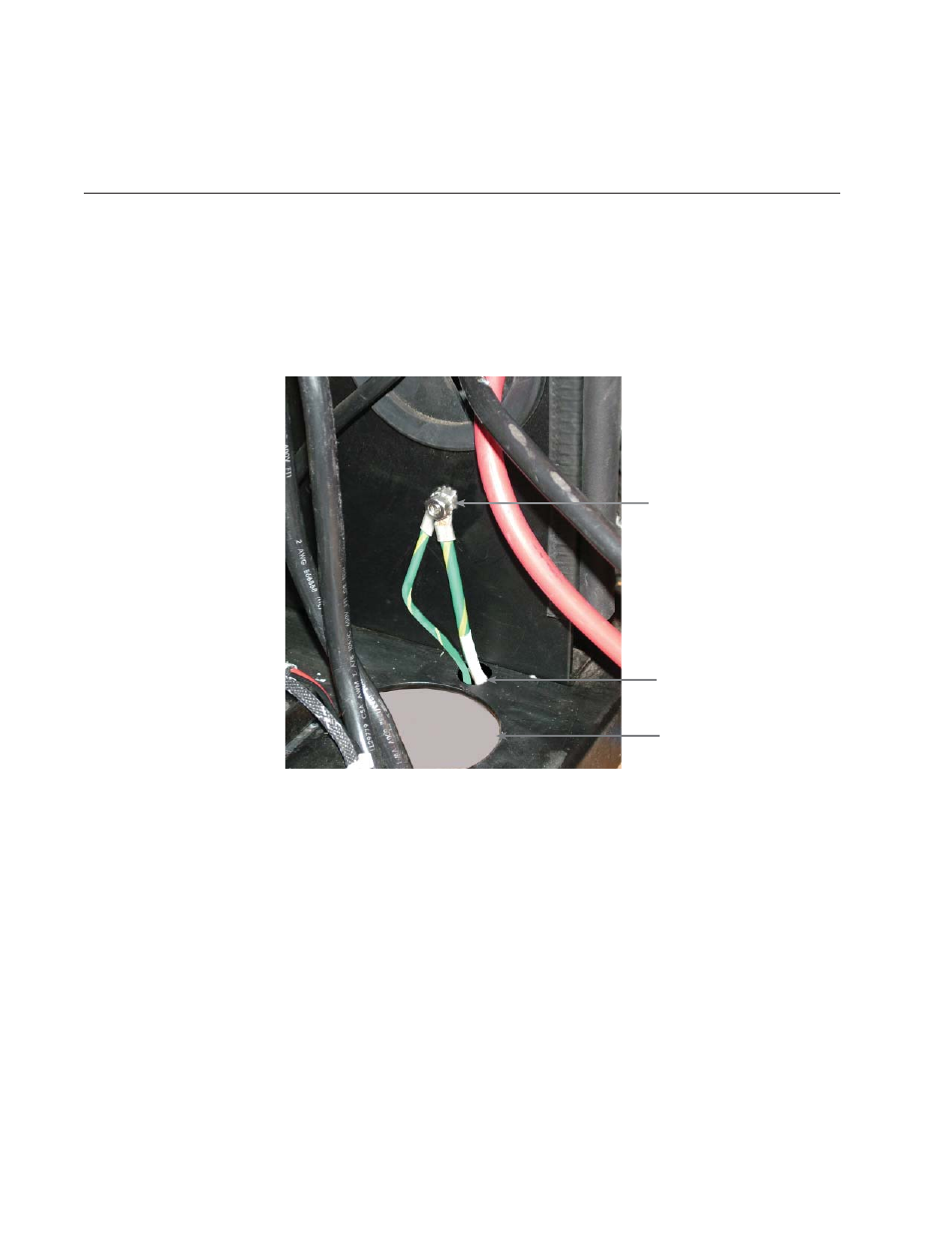

Fig. 3-5, Enclosure Grounding
ATTENTION:
