2.0 Installation, continued
2.5 Enclosure Installation, Pole Mounting, continued
2.5.2 Concrete or Steel Pole
Tools and Materials Required (customer supplied):
• Stainless steel banding (or equivalent), rated to support loaded enclosure and sized for pole
diameter
• Assorted sockets
Procedure:
1. Unpack the enclosure and galvanized brackets; turn the enclosure facedown on a soft
surface.
2. Slide a bracket up through the enclosure’s lower mounting bracket. The bracket’s flanges
must face away from the enclosure. Secure the lower mounting bracket using the 3/8" x 3/4"
hex bolt included.
3. Position the upper mounting bracket on the pole and secure using banding.
4. Lift the enclosure onto the upper mounting bracket and pull downward to properly seat it.
Center the enclosure on the pole.
5. Secure the lower mounting bracket on the pole using banding. Spacing between banding is
18"/457mm.
6. The enclosure is now ready for grounding (see Page 26) and equipment installation.

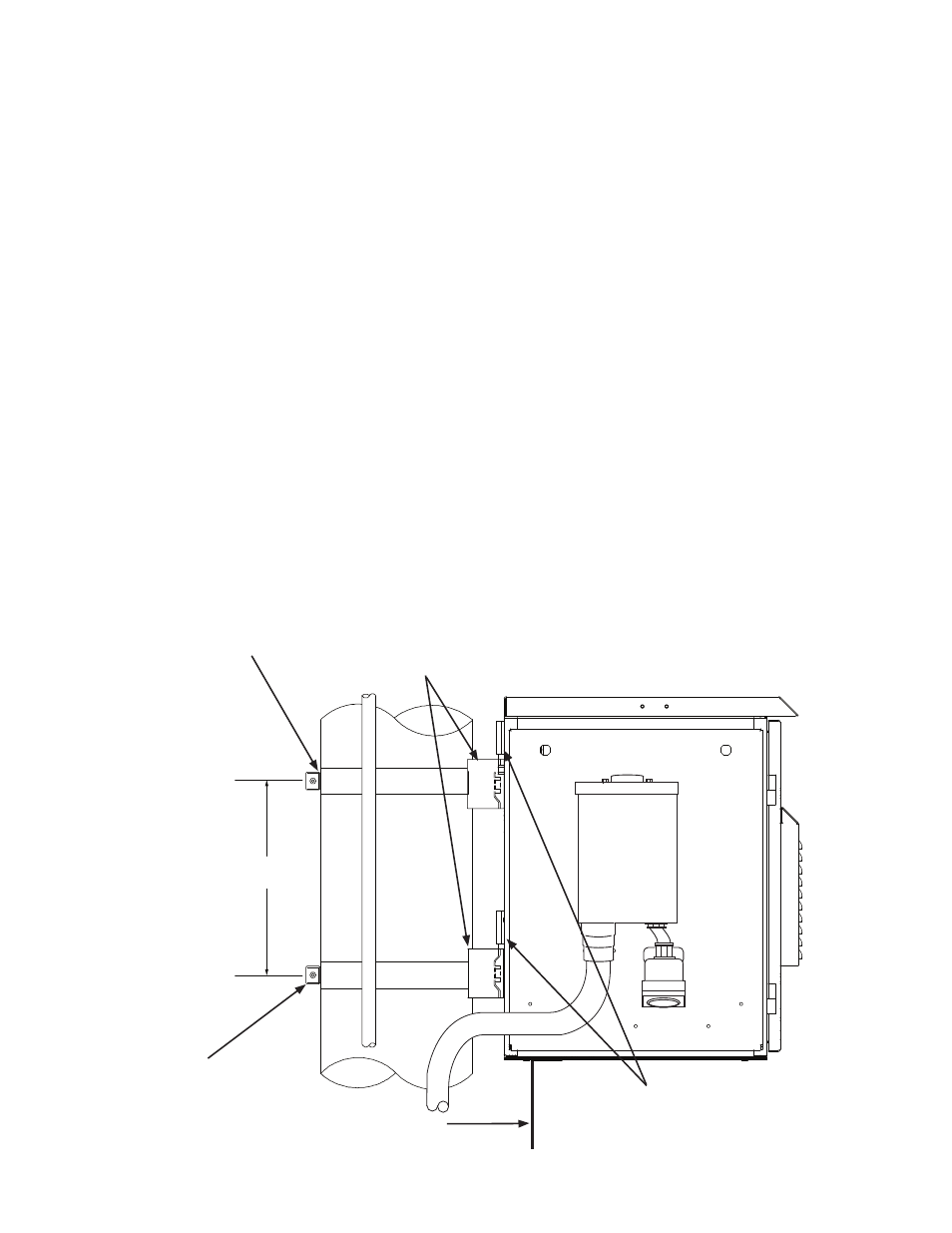

Fig. 2-7, FBE2322 Series Concrete or Steel Pole Mounting
18" (457.2mm)
Enclosure Ground
Cable
Pole Strap
Pole Strap Pole Mount Brackets
p/n 591-557-20
Enclosure Pole Mount Straps
p/n 746-205-20
