Alpha Technologies FBE2322 Enclosure System - Manual (Page 17)

17 031-314-B0-001, Rev. A (12/2012)
2.0 Installation, continued
2.3 Enclosure Lifting (Optional)
Secure the lifting straps/cable to the lifting ears. The length of the
cable/strap between the lifting ears and the hook (A) is at least
twice the distance (B) between the lifting ears (see Fig. 2-1).
2.4 Enclosure Installation, H-Frame/Wall Bracket Mounting
H-Frame mounting brackets ship attached to your enclosure. They may be mounted in reverse for
convenience during shipping.
The size of the H-Frame and physical space needed for your enclosure will be determined by its
configuration. For FBE2322-ENC mounting dimensions, see Fig. 2-2. For other enclosure dimensions,
see Section 1.3. Place the enclosure to provide sufficient space for maintenance access (see Fig. 2-3).
Fig. 2-3, Enclosure w/ Open Door Dimensions
41.0” (1042mm)
25.0” (635mm)
23.0" (584mm)
10.0" (254mm)
23.0" (584mm)
10.0" (254mm)
22.0" (559mm)
21.0" (533mm)
23.0" (584mm)
18.0" (457mm) 14.0" (356mm)
25.0" (634mm) 18.5" (470mm)
17.0" (431.8mm)
.5" (13mm) 1.0" (25mm)
TYP
21.0" (533mm)
23.0" (584mm)
25.1" (636mm)
32.0
" (812mm)
30.0
" (762mm)
27.3
" (693mm)
25.0" (634mm) 18.5" (470mm)
31.0
" (787mm)
.5" (13mm) 1.0" (25mm)
TYP
21.5" (546mm)
12.0" (304mm)
18.0
" (457mm)
12.0
" (304mm)
.96" (24mm)
.28" (7mm)
19.0" (482mm)
25.0" (634mm)
27.3
" (693mm)
17.5" (445mm)
19.8" (502mm)
(Front View) (Right Side View) (Rear View)
(Front View) (Right Side View) (Rear View)
(Front View) (Right Side View) (Rear View)
(Bottom View)
(Front View) (Right Side View)
Fig. 2-2, Enclosure Mounting Dimensions
Remove the lifting ears after installation. The ears are
made of steel and may rust over time.
NOTE:

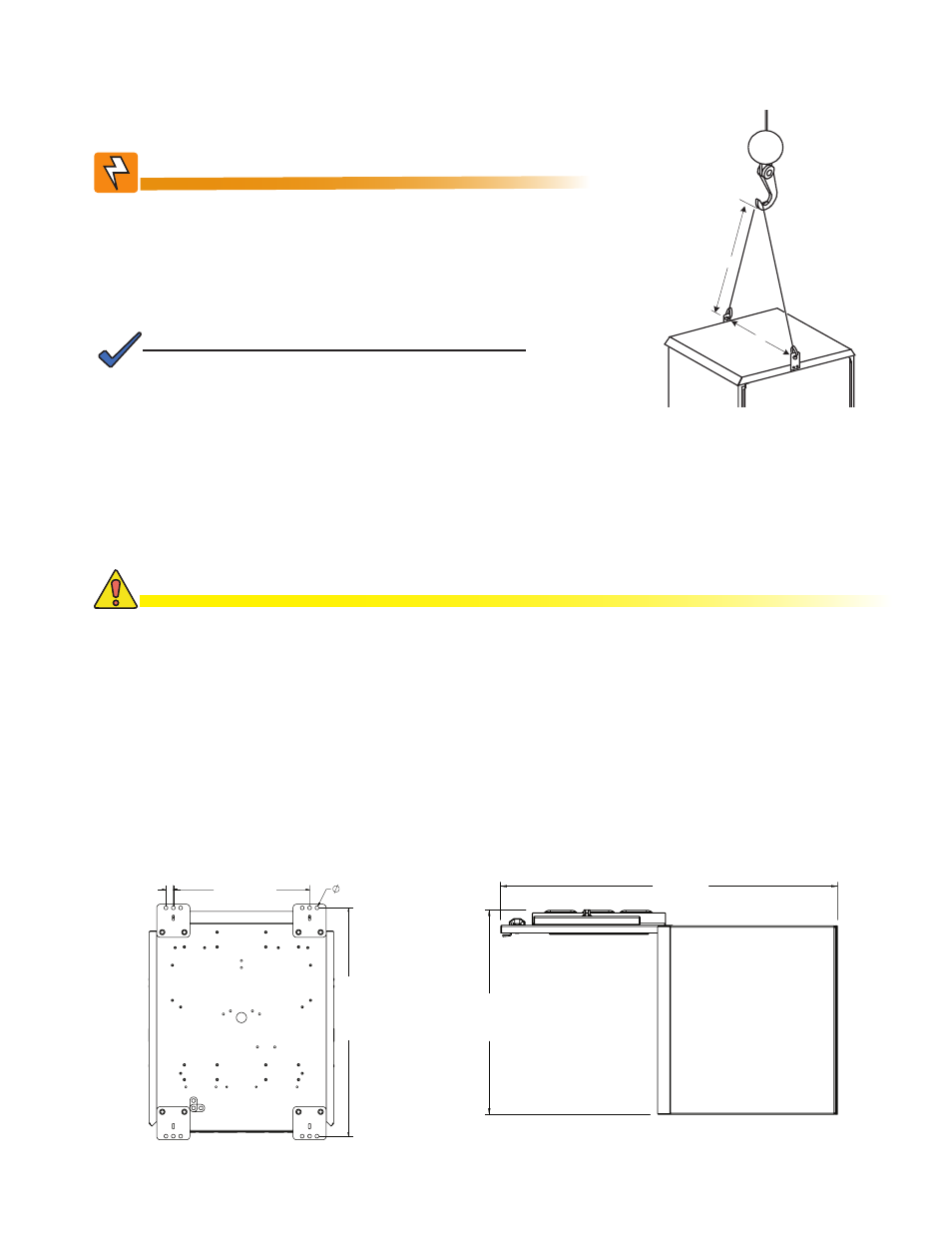

Fig. 2-1, Enclosure Lifting
Arrangement
A
B
Follow all rules and guidelines for safe lifting operation.
WARNING!
• Never transport the unit with installed batteries. Doing so can cause injury or damage to the
enclosure and installed equipment. Install the batteries after you transport the unit to the site
and secure it to the H-frame.
• Alpha recommends that you position the enclosure on the H-frame in an area that restricts
unauthorized access.
• System installation at >5º angle from pole-axis is not recommended.
CAUTION!
