VIII. Installation
Hint: Before installing the detector and the radio controlled display module, make sure that there is a reliable
radio connection between the intended installation positions.
To ensure permanently secure radio reception, at least three LEDs should be illuminated per alarm (see Point VI. f).

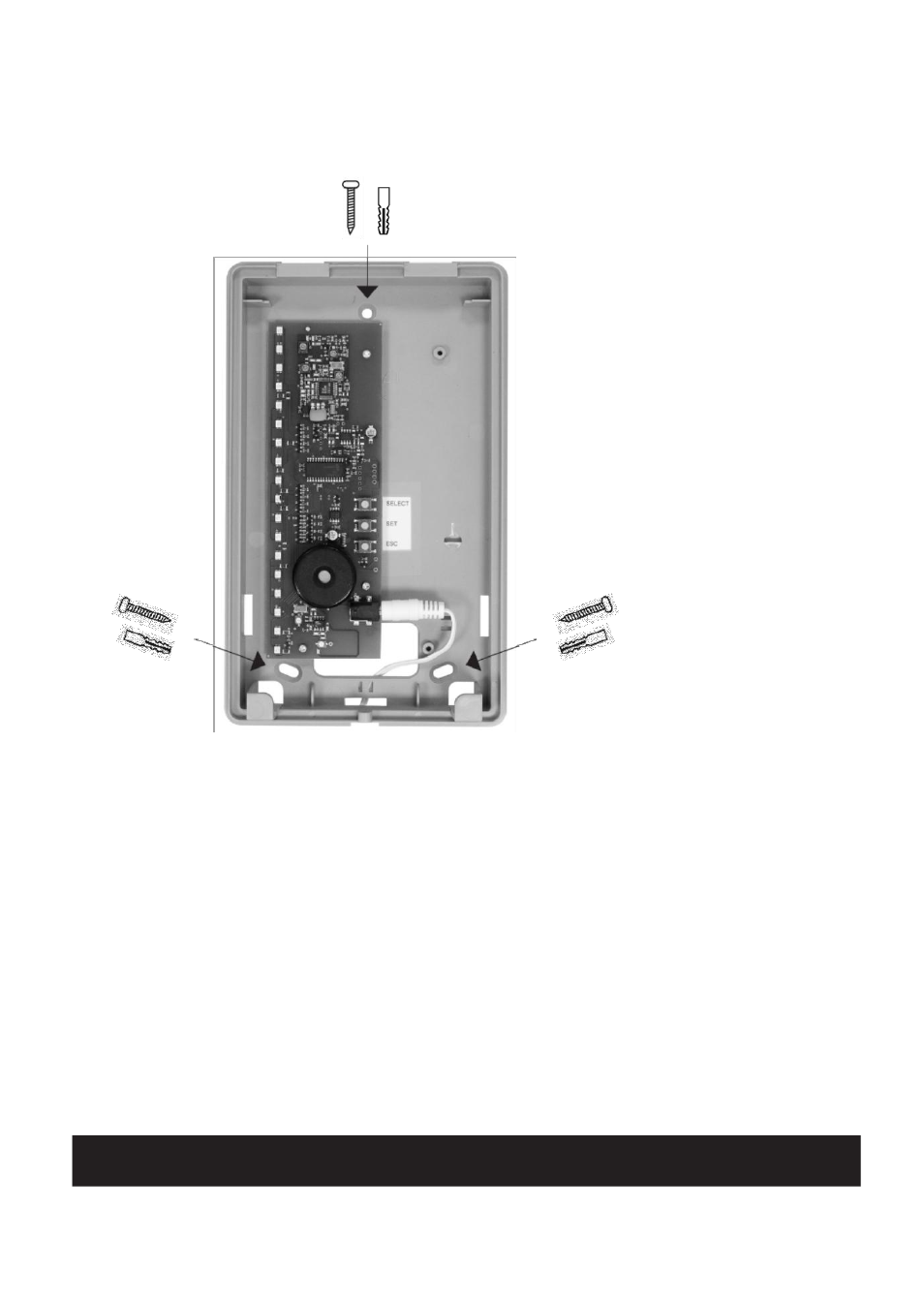

Hold the bottom of the radio controlled display module on the desired installation position and mark the three
drill holes; drill with a 6 mm drill; insert dowel and screw on the bottom part.
Caution: Length of cable on power supply 1.50 metres. A nearby 230 VAC receptacle is required.
After completing the teaching process, put the top part of the radio controlled display module on the installed
bottom section and secure to the bottom section with the enclosed screws.
IX. Technical data
Voltage supply:
12V power supply
Frequency:
868.6625 MHz / FM
Zones:
16, individually programmable
Weight:
516 g
Dimensions W xH xD:
135 x220 x45 mm
Environmental Class:
I
Temperature range:
0° C to + 50° C
