ABUS FU8403 Wireless Display Module User Manual
Page 10
V. Signalling concept
10
Status LEDs 01
– 16: Signalling concept, normal mode
• LED off
No detector has been taught in the zone or the mains voltage has not
been applied
• LED flashing red rapidly
The status of the zone has not been updated after a mains failure
• LED flashing red slowly
Manipulation on the window
• LED shining red
Window open or FTS 96 E not locked
• LED flashing green
Supervision error
• LED flashing red/green
Low batt (low battery condition on the detector)
• LED shining green
Window closed or FTS 96 E locked
Power LED 17:
• LED shining green
Mains voltage applied
• LED off
Mains voltage failed
Error LED 18:
• LED shining red
Supervision error in one zone (see Point VI. Remarks)
• LED flashing red slowly
Malfunction
• LED flashing red rapidly
After a mains failure, no new status was received for all detectors

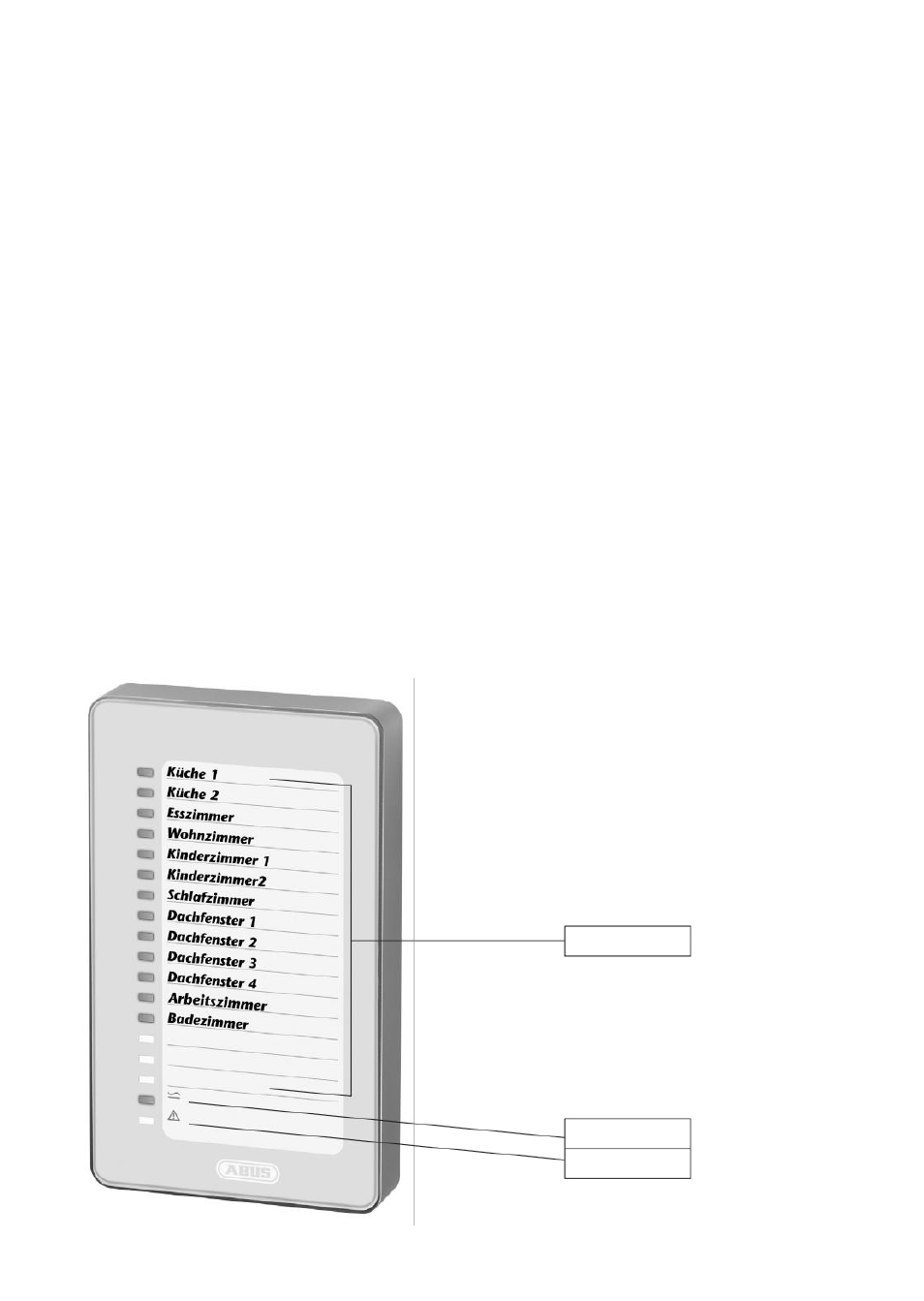

LED 01
– 16
LED 17
LED 18
