ABUS FU2938 Compact Alerting User Manual
Page 43
43

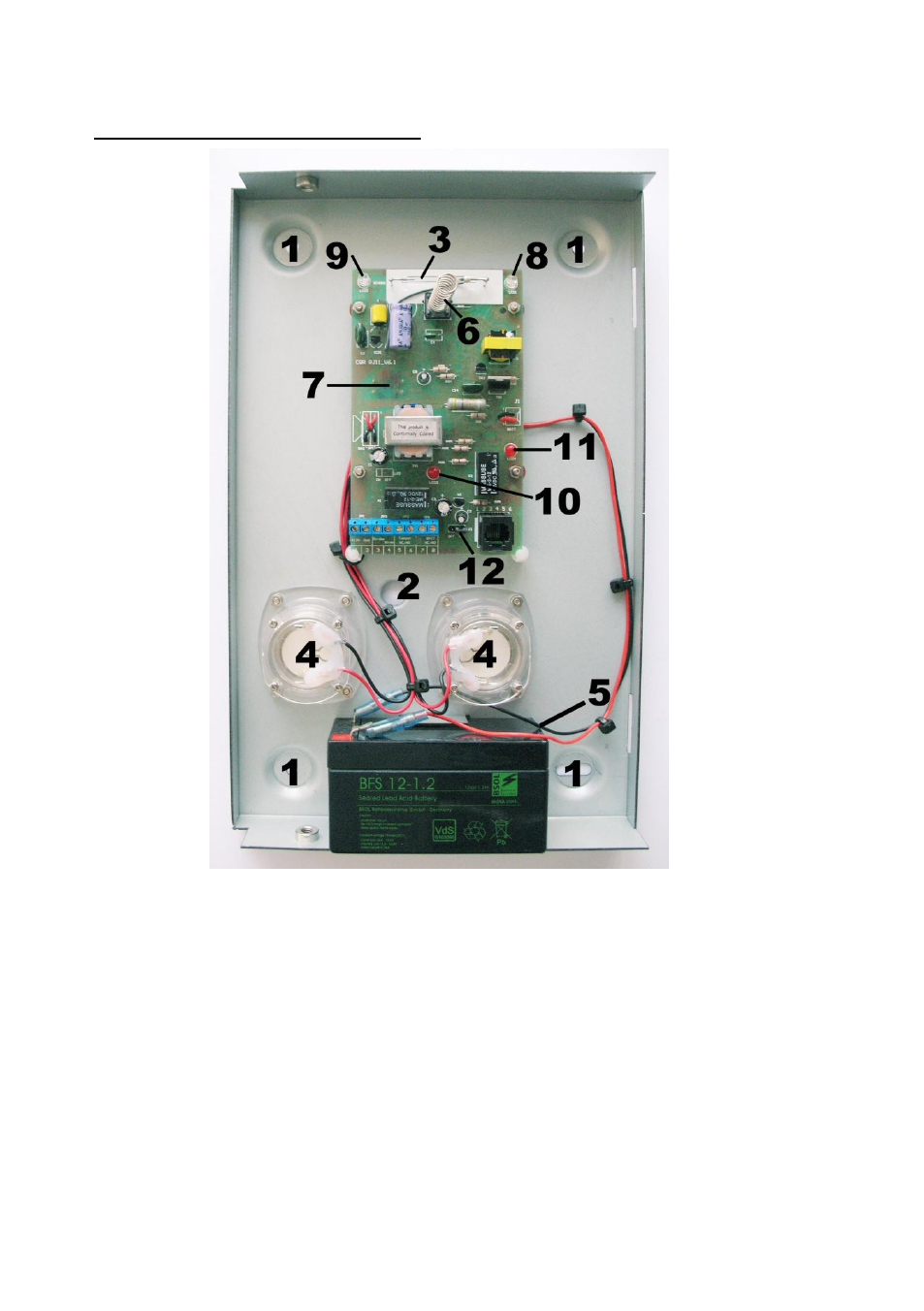

Beschrijving van de aansluitingen
1. Boorgaten voor wandbevestiging
2. Kabeldoorvoer
3. Xenon flitser
4. Piezo sirenes
5. Accu
6. Sabotagecontact deksel
7. Sabotagecontact wand
8. Diagnose LED 1
9. Diagnose LED 2
10. Diagnose LED 3 accu
11. Diagnose LED 4 acculading
12.
Jumper voor diagnose LED’s
Wahlschalter
zur
Ansteuerung
der
Sirene
und
Blitz
Steuersign
al
Sirene
Steuersign
