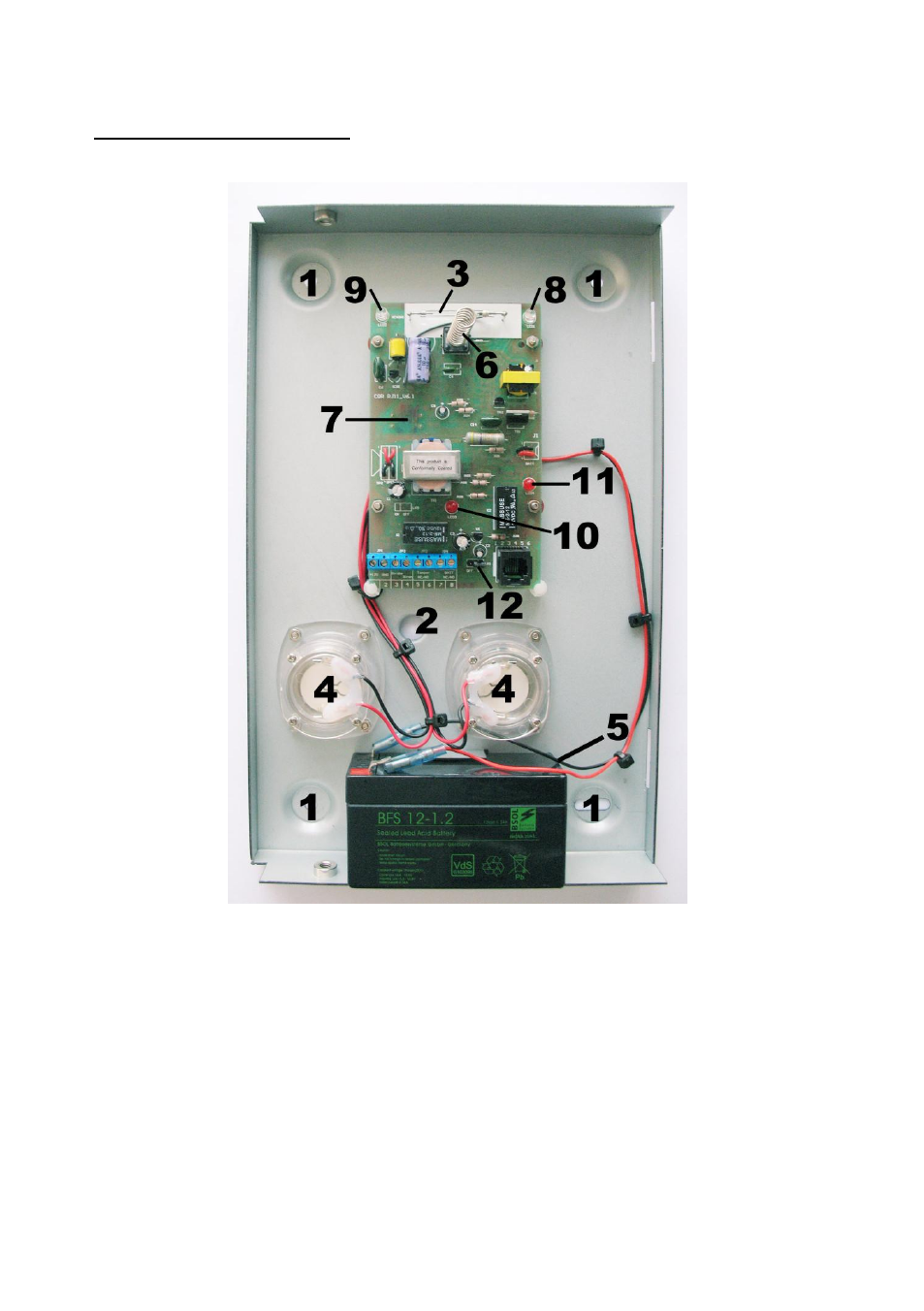

Description de la structure
1
Trous percés pour fixation aux parois
2
Amenée de câble
3
Flash Xenon
4
Sirènes Piezo
5
Espace pour accumulateur
6
Contacte de sabotage couvercle
7
Contacte de sabotage paroi
8
Diagnose LED 1
9
Diagnose LED 2
10 Diagnose LED 3 accumulateur
11
Diagnose LED 4 charge d’accumulateur
12 Cavalier pour diagnose des LEDs
Wahlschalter
zur
Ansteuerung
Steuersign
al
Sirene
