ABUS FU2938 Compact Alerting User Manual
Page 13
13

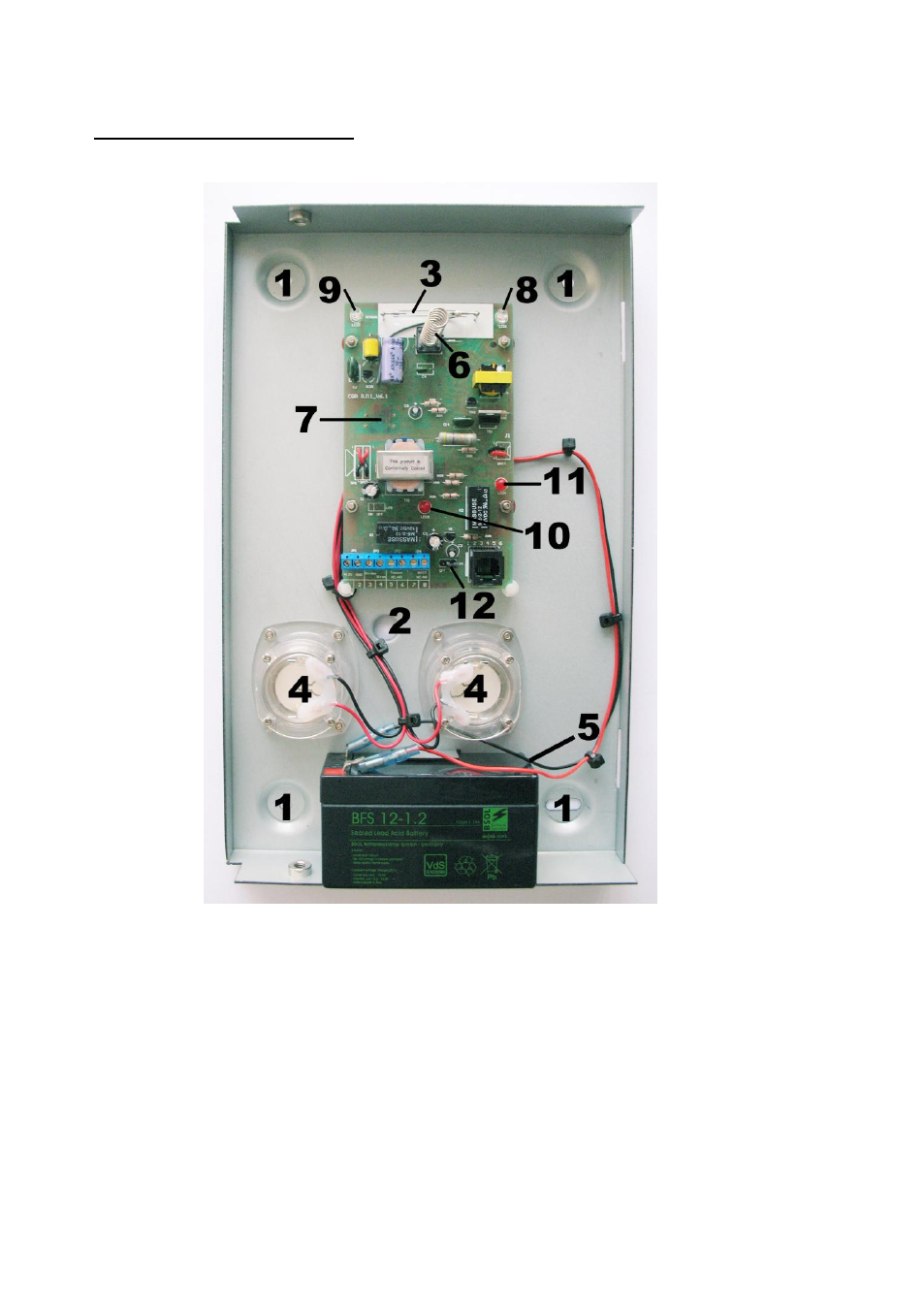

Description of construction
1
Drill holes for wall fixing
2
Cable feed
3
Xenon strobe
4
Piezo sirens
5
Space for rechargeable battery
6
Tamper contact (cover)
7
Tamper contact (wall)
8
Diagnostics, LED 1
9
Diagnostics, LED 2
10 Diagnostics, LED 3, battery
11 Diagnostics, LED 4, battery charge
12 Jumper for diagnostic LEDs
Wahlschalter
zur
Ansteuerung
der
Sirene
Steuersign
al
Sirene
