ABUS FU2938 Compact Alerting User Manual
Page 3
3

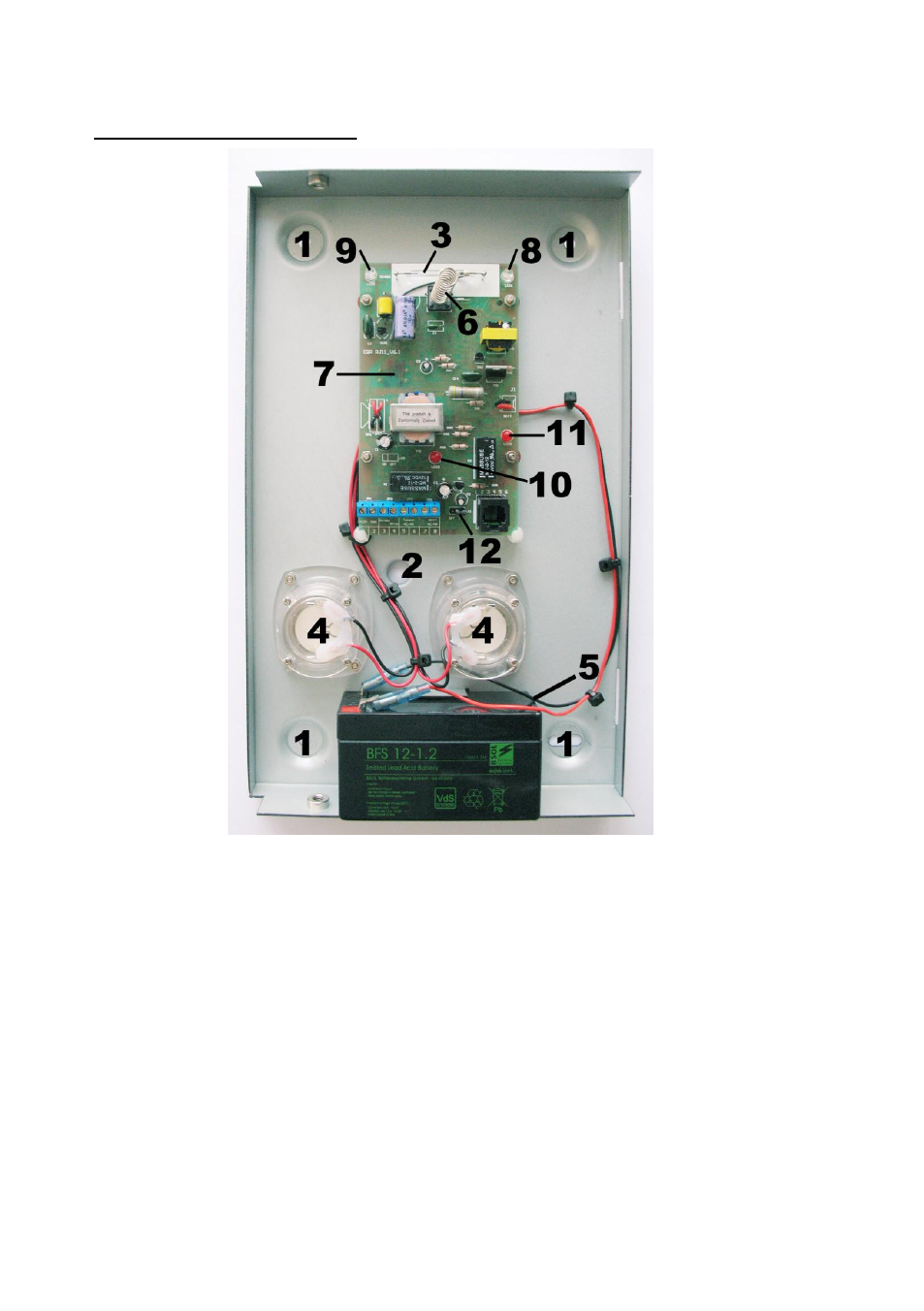

Beschreibung des Aufbaus
1
Bohrlöcher für Wandbefestigung
2
Kabelzuführung
3
Xenonblitz
4
Piezosirenen
5
Platz für Akku
6
Sabotagekontakt Deckel
7
Sabotagekontakt Wand
8
Diagnose LED 1
9
Diagnose LED 2
10 Diagnose LED 3 Akku
11 Diagnose LED 4 Akkuladung
12
Jumper für Diagnose LED’s
Wahlschalter
zur
Ansteuerung
der
Sirene
Steuersign
al
Sirene
Steuersign
