Gene
ral
information
Dis
p
la
yp
ressure values
Configuration inf
ormation
Activated continuous
reading
Display Set point and
feedback position
Activated override
set point
Page 7

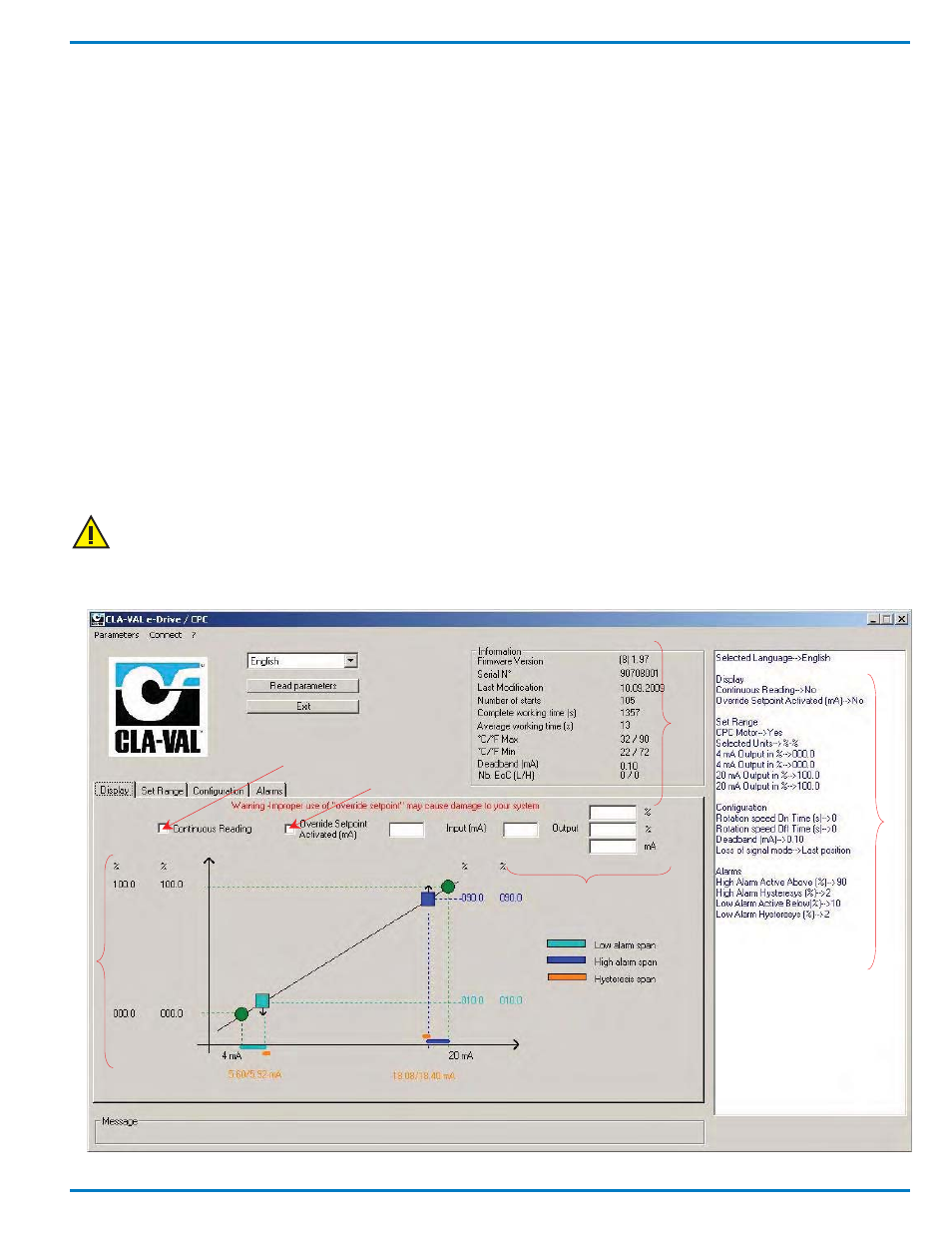

Programming Windows
Display Window
1. Connect CPC to the laptop using the USB cable.
2. Start the e-Drive/CPC CLA-VAL Software.
3. Select the CPC in the e-Line list.
4. Select language and click "Read parameters".
5. On the right side the configuration information is displayed.
6. On the top general information including the date of the latest calibration, the average & total working time since the
first power up, the number of starts, the serial number, the Firmware version and the maximum and minimum
recorded temperature are displayed.
7. Click on continuous reading if you would like see the position of CPC, set point (mA) and feedback position (mA and
units).
8. If you would like to manually change the setting, write your setting and click on "Override Setpoint".
Improper use of "Override Set Point" may cause damage to your system.
