Cpc series actuator wiring diagram, Cla-val – Cla-Val CPC User Manual
Page 2

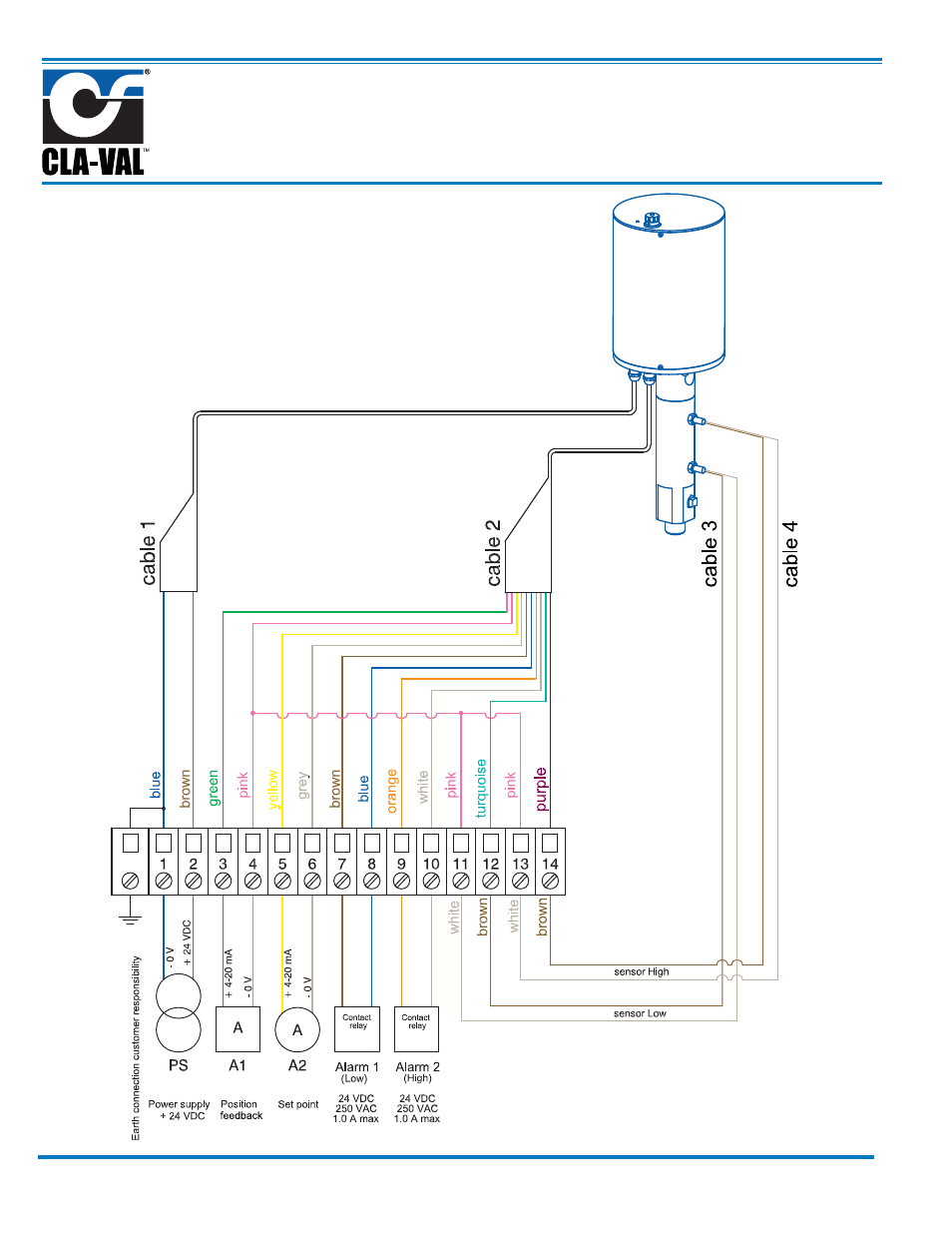

CPC Series Actuator
Wiring Diagram
Terminal strip not
supplied for
Illustration
purpose only
*
DO NOT WIRE 24 VDC POWER
*
IMPORTANT!
Before applying power, connect cable 3 and 4 to terminal strip as shown.
Also connect: turquoise, pink, and purple wires. Note jumper between
terminals 4, 11 and 13.
INSTALLATION / OPERATION / MAINTENANCE
CLA-VAL
Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.
P.O. Box 1325
• Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: [email protected] • Website cla-val.com
©
N-CPC Series Actuator Wiring Diagram
Wiring Connections
Page 2
