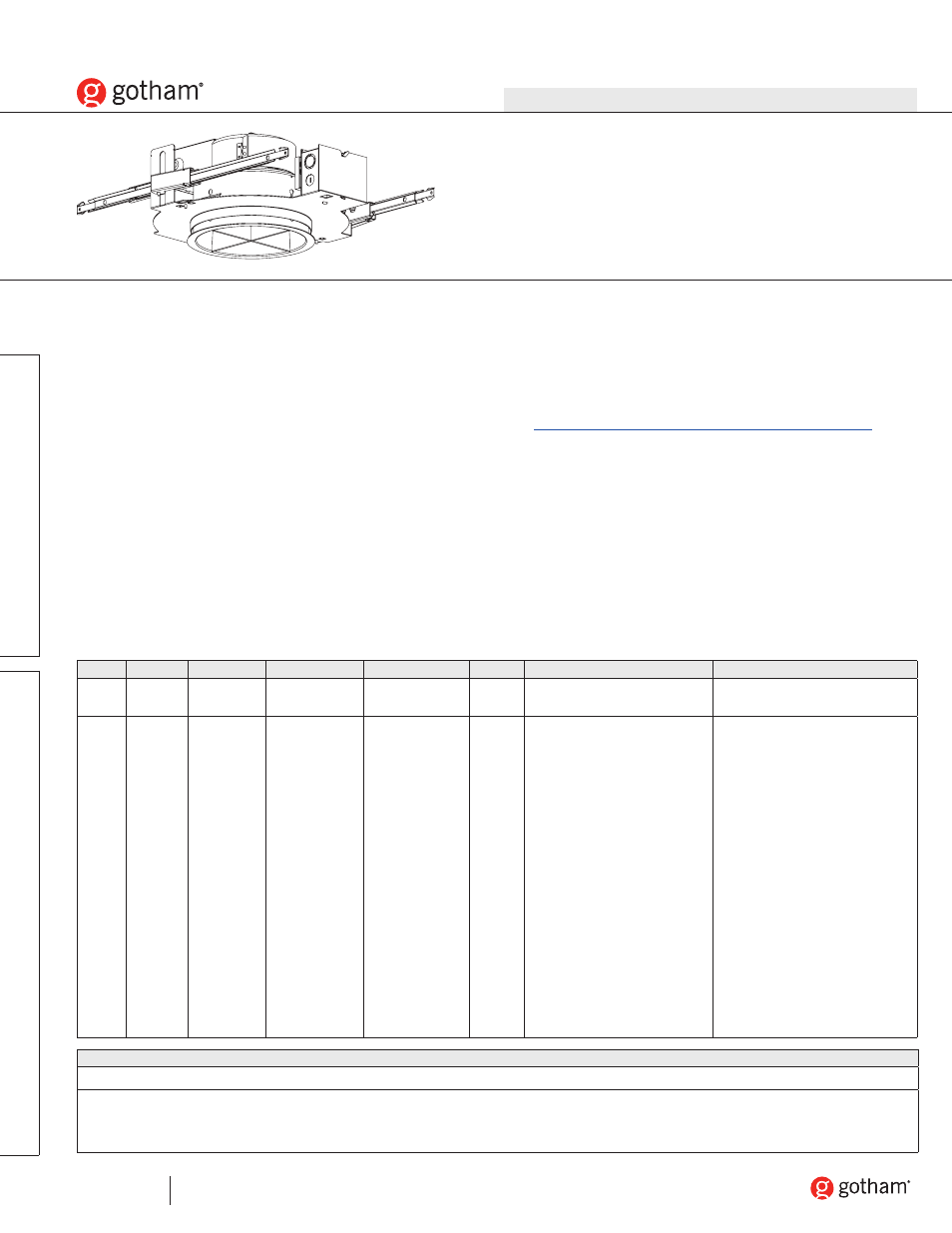

Gotham 10 AF Cross Baffle SpecSheet User Manual
10” af
Luminaire Type:
Catalog Number
(autopopulated):
© 2005-2014 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 01/21/14. Specifications subject to change without notice.
PAGE 1 OF 3
AF-10-XBAFFLE-TRT
Gotham Architectural Downlighting
Compact Fluorescent Downlights
10” AF
Cross Baffle
Horizontal Lamp
Triple-Tube
FE
AT
U
RE
S
OR
DER
ING
IN
FO
RM
AT
ION
OPTICAL SYSTEM
•
Self-flanged, specular clear or semi-diffuse reflector. Patented Bounding Ray™
Optical Principle design (US Patent No. 5,800,050). Minimum flange matches
reflector finish. White painted flange optional.
•
Cross baffle offers superior optical cut-off with a clean aperture appearance.
•
Hinged lampdoor seals upper trim for optimal fixture efficiency and the reduc-
tion of stray light in the plenum.
MECHANICAL SYSTEM
•
16-gauge galvanized steel construction; maximum 1-1/2” ceiling thickness.
•
Telescopic mounting bars maximum of 32” and minimum of 15”, preinstalled,
4” vertical adjustment.
•
Toolless post-installation adjustments.
•
Junction box capacity: 8 (4 in, 4 out) 12AWG rated for 90°C.
ELECTRICAL SYSTEM
•
Horizontally mounted, four-pin, positive-latch, thermoplastic socket(s).
•
Class P, thermally protected high-power-factor electronic ballast(s) mounted to
the junction box (CP and EL ballast mounted on ballast tray).
•
SIMPLY5™ technology available.
LISTING
•
Fixtures are UL Listed for thru-branch wiring, recessed mounting and damp
locations. Listed and labeled to comply with Canadian standards.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: AF 3/42TRT 10CB CGL MVOLT
Series
Wattage/
Lamp
Aperture/
Trim color
Finish
Lens type
Voltage
Ballast
Options
AF
1/18TRT
1/26TRT
1/32TRT
1/42TRT
1/57TRT
1
2/18TRT
2/26TRT
2/32TRT
2/42TRT
2/57TRT
1
3/18TRT
3/26TRT
3/32TRT
3/42TRT
10CB
Clear
(blank) Semi-
specular
LD
Matte-
diffuse
(blank) No lens
CGL
Clear
glass lens
T73
Tempered
prismatic
lens
MVOLT
2
120
277
347
(blank)
Electronic ballast
ECOS
2, 4
Lutron
®
EcoSystem
®
electronic dimming ballast.
Minimum dimming level
5%
ADEZ
3, 4
Advance Mark 10
®
elec-
tronic dimming ballast.
Minimum dimming level
5%
ADZT
2
Advance Mark 7
®
electronic
dimming ballast. Minimum
dimming level 5%
TRW
White painted flange
TRBL
Black painted flange
ELR
5
Emergency battery pack with
remote test switch
GMF
4
Single, slow-blow fuse
GLR
4
Single, fast-blow fuse
RIF
Radio interference filter
RRL
6
RELOC
®
-ready luminaire. Pro-
vides compatibility with Lithonia
RELOC system. Access above
ceiling required.
WLP
With 3500 K lamp (shipped
separately)
CP
7
Chicago plenum (consult factory)
NEPP Interface for Sensor Switch
®
nLight
®
network with integral
power supply. Refer to TN-623-01.
WL
Wet location; lens required
WRL
8
Wattage restriction label
TWS
Twist lock socket
ACCESSORIES order as separate catalog numbers (shipped separately)
SCA10
Sloped ceiling adapter. Degree of slope must be specified (10D, 15D, 20D, 25D, 30D). Ex: SCA10 10D.
