Gotham 8 AF Drop Luminous Ring_Disk SpecSheet - Manual (Page 2)

GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com
© 2011-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 11/04/13. Specifications subject to change without notice. PAGE 2 OF 3
AF-8-DEcO
DIM
EN
SIO
N
AL D
AT
A
N
OT
ES
8” AF
Drop Luminous Ring/Disk
Horizontal Lamp, Double Twin-Tube or Triple-Tube
PH
OTO
M
ET
RY

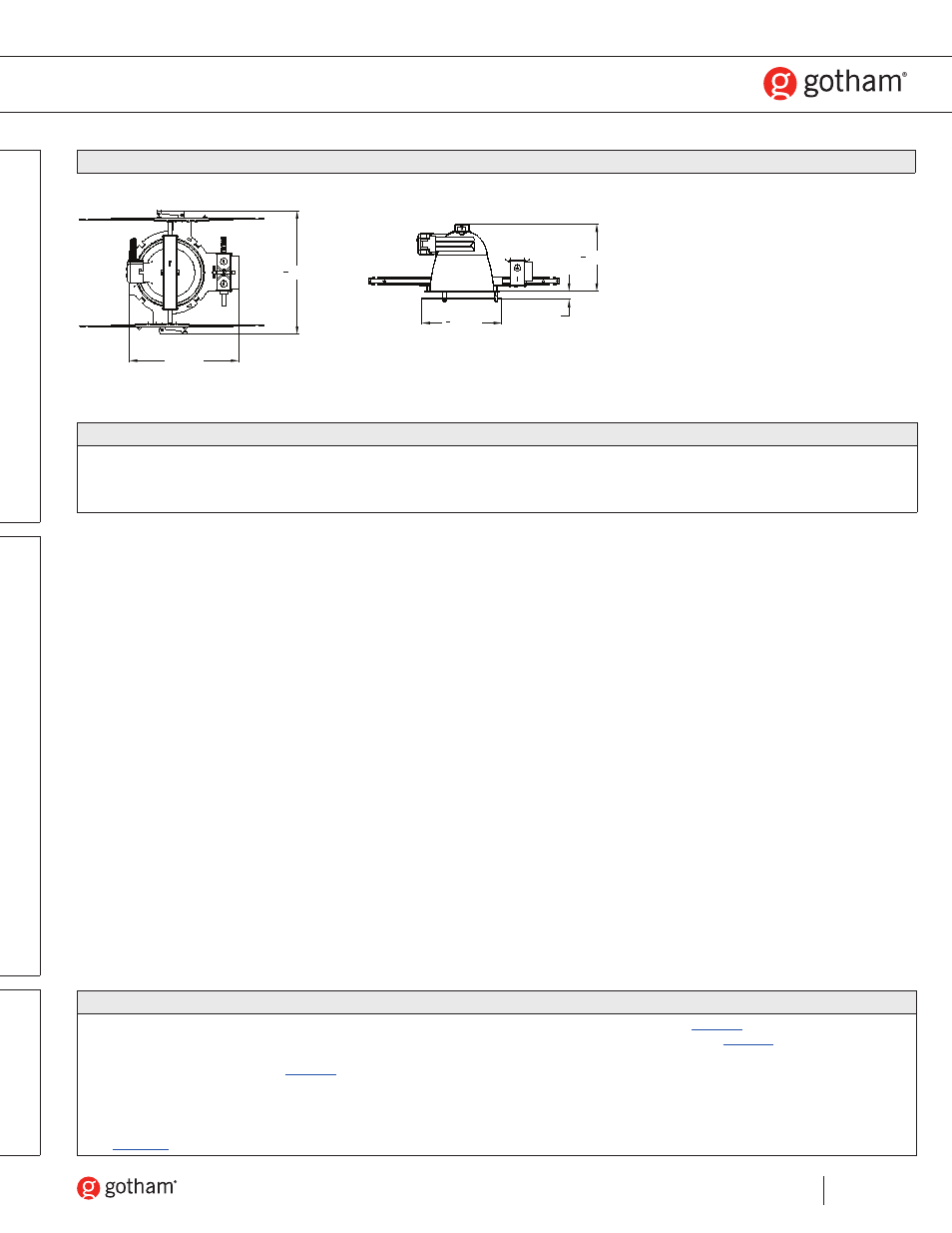

All dimensions are inches (centimeters) unless otherwise noted.
ORDERING NOTES
1. Not available with finishes.
2. Multi-volt electronic ballast capable of operating on any voltage from 120V
through 277V, 50 or 60 Hz.
3. For additional ballast types, refer to TECH-250 .
4. Not available with 13W.
5. Available in 120V or 277V only.
6. SIMPLY5™ includes 9’ S5 MLC RELOC wiring system (shipped separately).
Available in 120V or 277V only. Not available in 18W or 57W. See
simply5.net for more information.
7. For dimensional changes, refer to TECH-140 .
8. For compatible RELOC systems, refer to TECH-110 .
9. Not available with emergency options.
10. Meets codes that require in-fixture disconnect.
11. Must specify wattage. Ex.: WRL32
DIMENSIONAL NOTES
• Maximum height depends on lamp type.
• 7-3/8” for double twin-tube (1/13DTT, 1/18DTT, 1/26DTT, 2/13DTT, 2/18DTT and 2/26DTT).
• 8-3/4” for triple-tube (1/13TRT, 1/18TRT, 1/26TRT, 1/32TRT and 1/42TRT).
838 [21.3]
Aperture:7-7/8 (20.1)
Ceiling Opening: 8-7/8 (22.5)
Overlap Trim: 9-1/4 (23.5)
978 [25.1]
1 [2.5]
14 [35.6]
15 78 [40.3]
