Luminaire Type:
Catalog Number
(autopopulated):
GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com
© 2005-2014 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 02/11/14. Specifications subject to change without notice. PAGE 1 OF 3

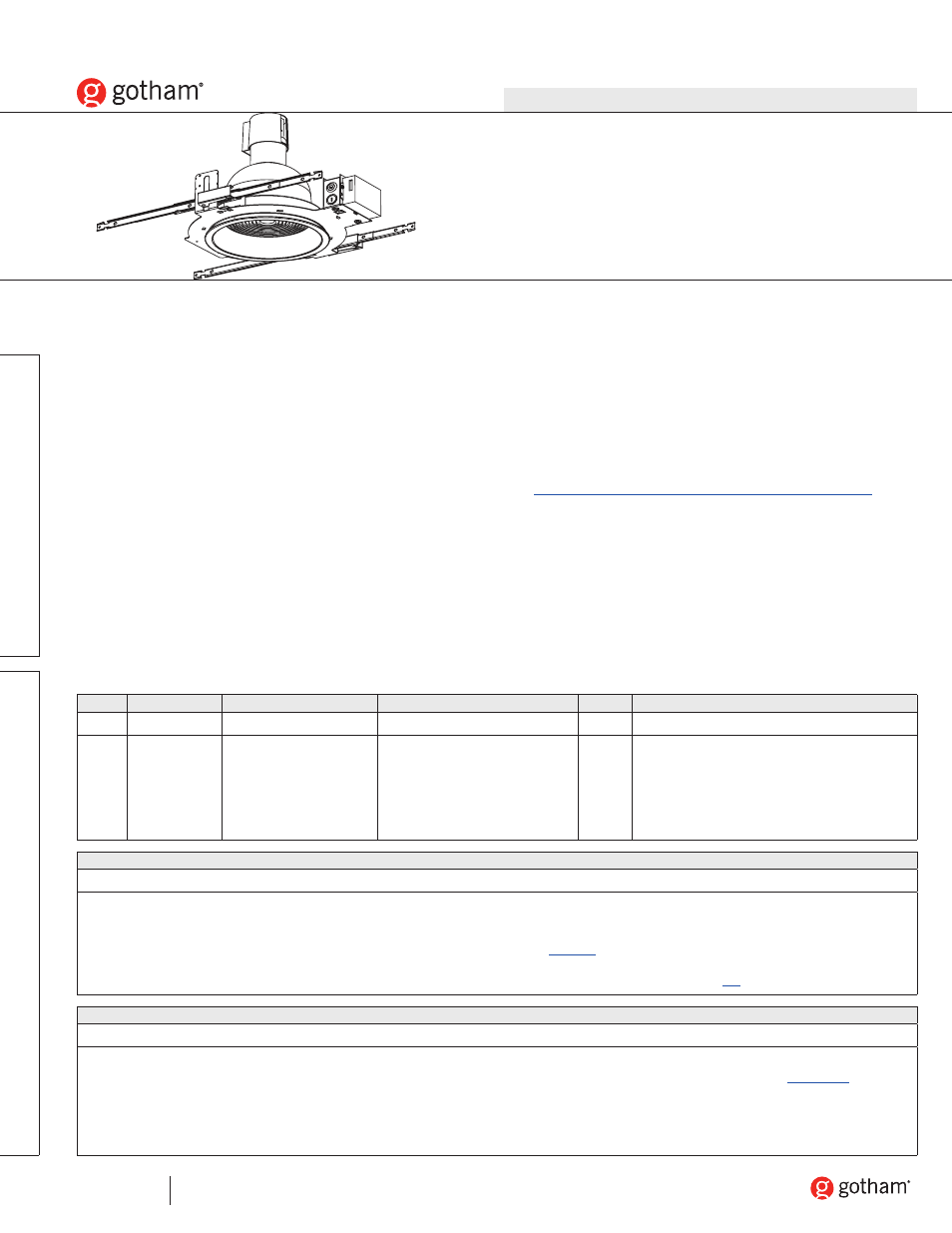

LGFV-10-ROund-LEnS
Gotham Architectural Downlighting
Compact Fluorescent Downlights
10” LGFV
Round Lens
Wet Location
Vertical Triple-Tube Lamp
FE
AT
U
RE
S
OR
DER
ING
IN
FO
RM
AT
ION
OPTICAL SYSTEM
•
Aluminum upper reflector coated with highly reflective white paint provides high
efficiency and an evenly illuminated aperture appearance.
• Available with tempered prismatic lens (T73), flat Fresnel lens (FFL) or flat opal
lens (FOL).
• Regressed white door (RW) or stepped black baffle (SB) are available with white
painted flange provided.
• Door is retained by self-aligning, torsion support springs, preventing gaps
between door and ceiling.
MECHANICAL SYSTEM
•
16-gauge galvanized steel mounting/plaster frame with integral yoke to retain
optical system. Maximum 1-1/2” ceiling thickness.
• 16-gauge galvanized steel mounting bars with continuous 4” vertical adjust-
ment are shipped pre-installed. Post installation adjustment possible without
the use of tools from above or below ceiling.
• Galvanized steel junction box with hinged access covers and spring latch. Two
combination 1/2”–3/4” and three 1/2” knockouts for straight-through conduit
runs. Capacity: 8 (4 in, 4 out) No. 12 AWG conductors, rated for 90°C.
ELECTRICAL SYSTEM
•
Die-cast aluminum lampholder housing.
• Vertically-mounted, four-pin, positive-latch, thermoplastic socket.
• Class P, thermally-protected, high power factor, electronic ballast mounted to
the junction box.
LISTING
•
Fixtures are UL Listed for thru-branch wiring, non-IC recessed mounting and wet
locations. Listed and labeled to comply with Canadian standards.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: LGFV 42TRT 10RW T73 MVOLT
Series Wattage/Lamp Door frame Lens type Voltage Ballast 3
LGFV 18TRT 1
26TRT 1
32TRT
42TRT
57TRT
70TRT
10RW Regressed white door
10SB Stepped black baffle
T73 Tempered prismatic lens
FFL Flat fresnel lens
FOL Flat opal lens
MVOLT 2
120
277
347
(blank) Electronic ballast (standard)
ECOS EcoSystem electronic dimming ballast. Minimum
dimming level 5%.
ADEZ 4 Advance Mark X ® electronic dimming ballast.
Minimum dimming level 5%
Options
CP Chicago plenum
TRDA 5 Tamper resistant door assembly
GMF Single, slow-blow fuse (not available with MVOLT)
GLR Single, fast-blow fuse (not available with MVOLT)
WLP 3500 K lamp (shipped separately)
ELR 6 Emergency battery pack. Remote test switch
GSKT Foam gasketing ships uninstalled
NEPP 7 Interface for Sensor Switch ® nLight ® network provided with integral power supply.
Refer to Tn-623-01 . not for use with emergency options.
RRL__ RELOC ® -ready luminaire connectors enable a simple and consistent factory installed
option across all ABL luminaire brands. Refer to RRL for complete nomenclature.
ACCESSORIES order as separate catalog numbers (shipped separately)
SCA10 Sloped ceiling adapter. degree of slope must be specified (10d, 15d, 20d, 25d, 30d). Ex: SCA10 10d.
NSP5 D ER KIT Sensor Switch nLight secondary relay and dimming pack device used to switch and dim luminaires powered via an emergency circuit. Refer to nSP5 d ER KIT .
