LGFV-10-ROund-LEnS
DIM
EN
SIO
N
AL D
AT
A
N
OT
ES
10” LGFV
Round Lens
Wet Location, Vertical Triple-Tube Lamp
PH
OTO
M
ET
RY

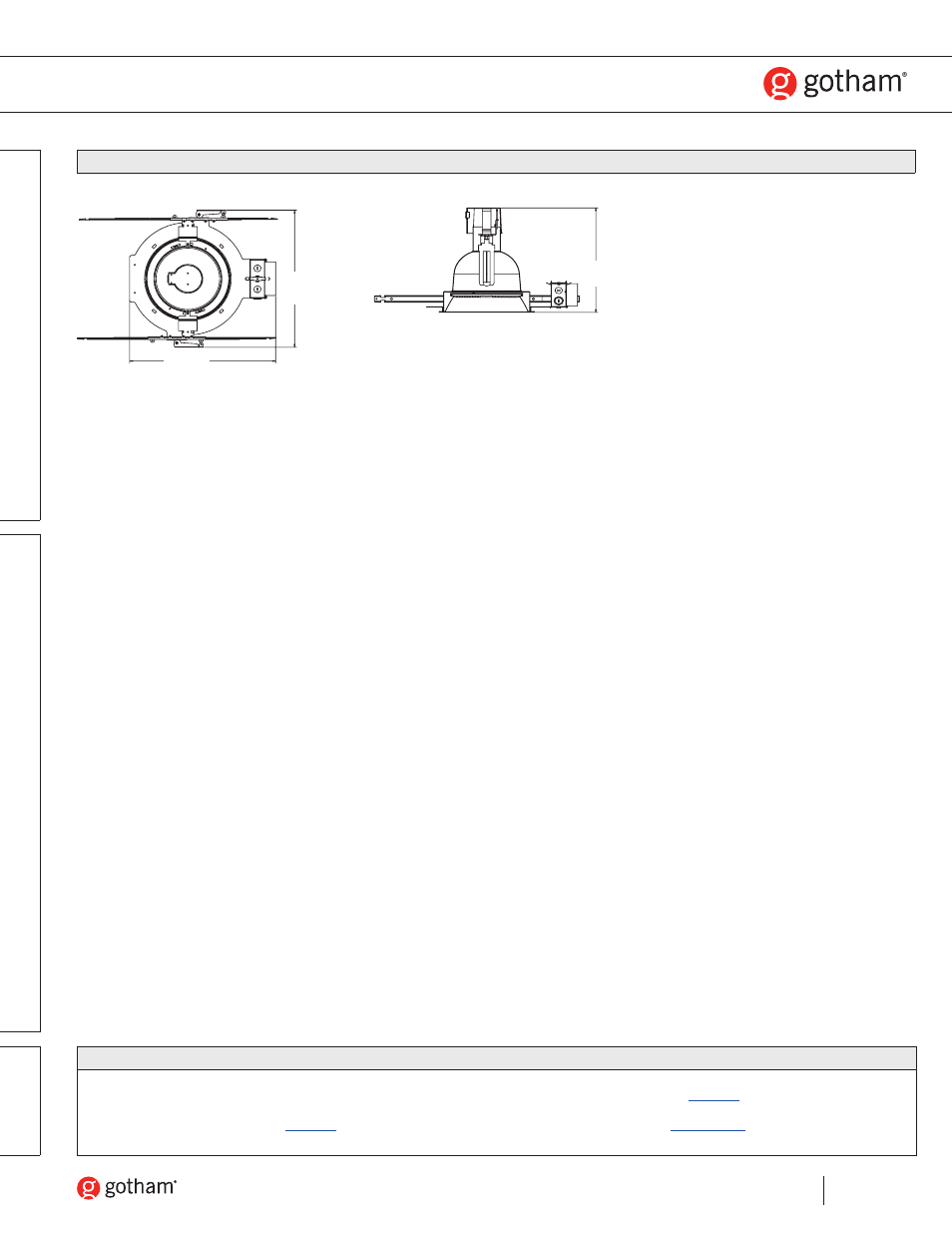

All dimensions are inches (centimeters) unless otherwise noted.
ORDERING NOTES
1.
Will also operate DTT 4-PIN lamps of same wattage.
2.
Multi-volt electronic ballast capable of operating on any voltage from 120V
through 277V, 50 or 60 Hz.
3.
For additional ballast types, refer to
4.
120 or 277V only.
5.
Uses Torx T15 rejection pin drive system.
6.
For dimensional changes refer to
T.
7.
For Emergency applications order non-nLight enabled fixture and NSP5 D ER
KIT as an accessory
.
17-1/4
(43.8)
17-3/4
(45.1)
Aperture:
9-3/4 (24.8)
Ceiling Opening:
10-1/2 (26.7)
Overlap Trim:
11-1/8 (28.5)
14-1/8
(35.9)
