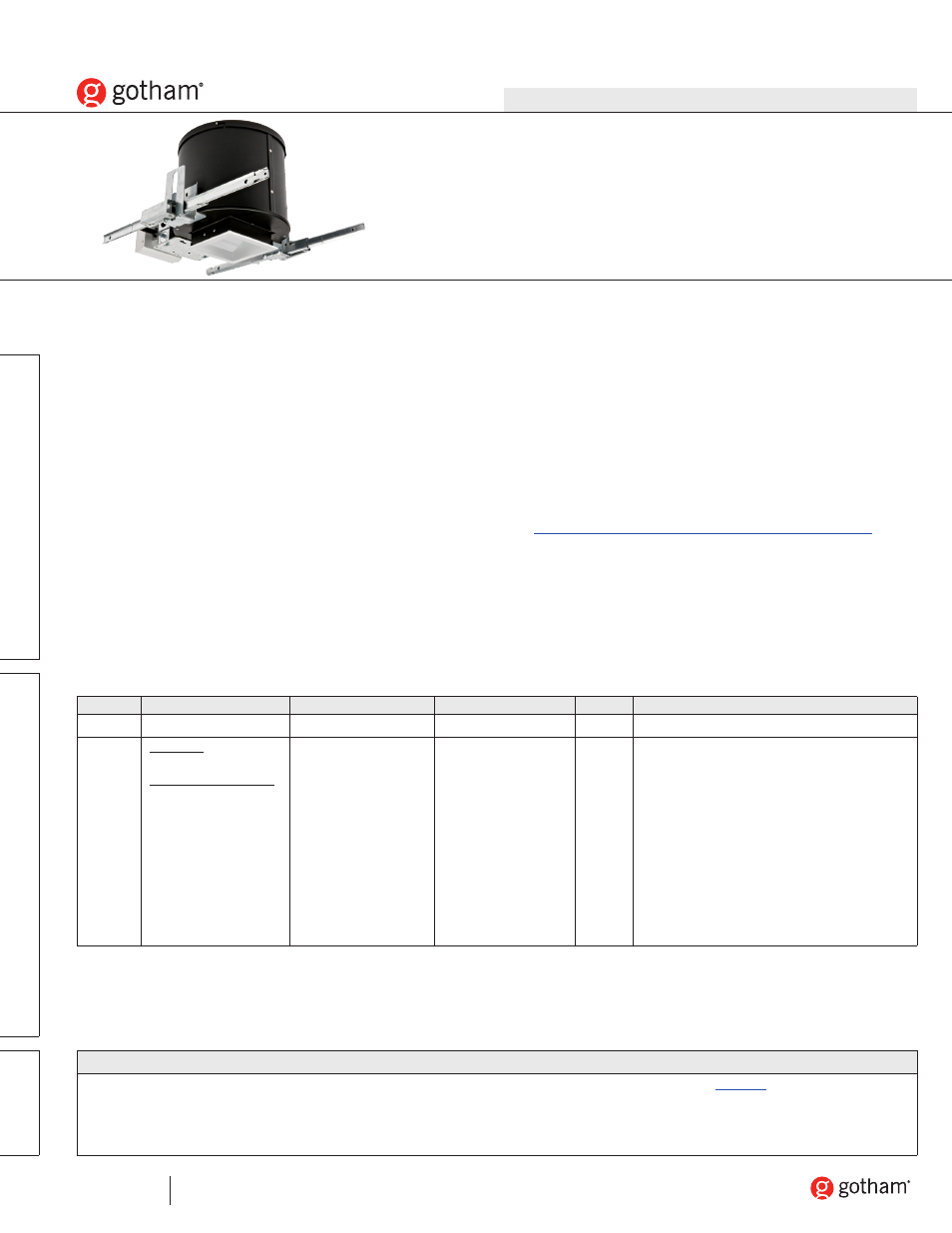

Gotham 4 SQDLWH Lensed Wallwash SpecSheet User Manual
4” sqdlwh

Luminaire Type:
Catalog Number
(autopopulated):
© 2009-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 01/29/13. Specifications subject to change without notice.
PAGE 1 OF 4
SQDLWH-4-WSH
Gotham Architectural Downlighting
HID Accent
4” SQDLWH
Lensed Wallwash
PAR Lamp
OPTICAL SYSTEM
•
Self-flanged, matte-diffuse high impact polymer finishing trim with a durable,
propriety vapor deposition finish.
•
Patented Bounding Ray™ Optical Principle design (U.S. Patent No. 5,800,050).
•
One piece trim eliminates mitered flange corners and inside corner gaps.
•
Indirect wallwash design along with diffusing lens delivers a uniform distribution
of light to the wall.
•
Relamping capability from above or below ceiling without the use of tools.
MECHANICAL SYSTEM
•
Rolled steel housing with matte black finish and 16-gauge painted steel mount-
ing/plaster frame accommodates up to 1-1/2” thick ceiling materials.
•
Patent-pending adjustable aperture allows 1/4” adjustments in all directions
and up to 5° of rotation allowing post-installation adjustments to ensure trim to
trim alignment.
•
16-gauge galvanized steel mounting bars with continuous 4” vertical adjust-
ments are shipped pre-installed.
•
Post-installation adjustment possible without the use of tools from above or
below ceiling.
•
Secondary housing adjustment system for precise, final ceiling to flange alignment.
ELECTRICAL SYSTEM
•
Medium-based porcelain socket with nickel-plated screw shell.
•
Pre-wired, electronic, 120 or 277V ballast module is standard.
•
Thermally activated insulation detector.
LISTING
•
Fixtures are UL listed for thru-branch wiring, Non-IC recessed mounting and
damp locations. Listed and labeled to comply with Canadian Standards.
Requires access above ceiling.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: SQDLWH P3070MHC 4AR LD 120
Series
Lamp type
1
Aperture/Trim
Finish
Voltage
Options
SQDLWH
Metal halide
P3070M
Color-corrected metal halide
P3039MHC
P3070MHC
4AR
Clear
4PR
Pewter
4WTR
Wheat
4WR
2
White
4BR
2
Black
4DSR
Stepped
4PDSR
Pewter stepped
4WDSR
Wheat stepped
(blank)
3
Semi-specular
LD
Matte-diffuse
120
277
347
QRS
4
Quartz restrike system
QRSTD
4
QRS with time delay
EC
4
Emergency circuit
SF
Single fuse
LRC
5
Provides compatibility with Lithonia Reloc
®
System. Access above ceiling required.
TRW
White flange
MFLG
6
Microflange trim
SQMT
7
Square metal trim
CP
Chicago plenum approved
ORDERING NOTES
1.
Ceramic arc tube consistent-color lamp. Philips MasterColor, Osram Sylvania
Powerball or GE ConstantColor.
2.
Not available with matte-diffuse finish.
3.
Available with WR and BR trim colors and SQMT metal trim option.
4.
Only available with SQMT metal trim option.
5.
6.
MFLG standard with high impact polymer trim. Order ships as 3 components:
housing, trim and microflange gypsum board.
7.
Not available with stepped trims or MFLG option.
