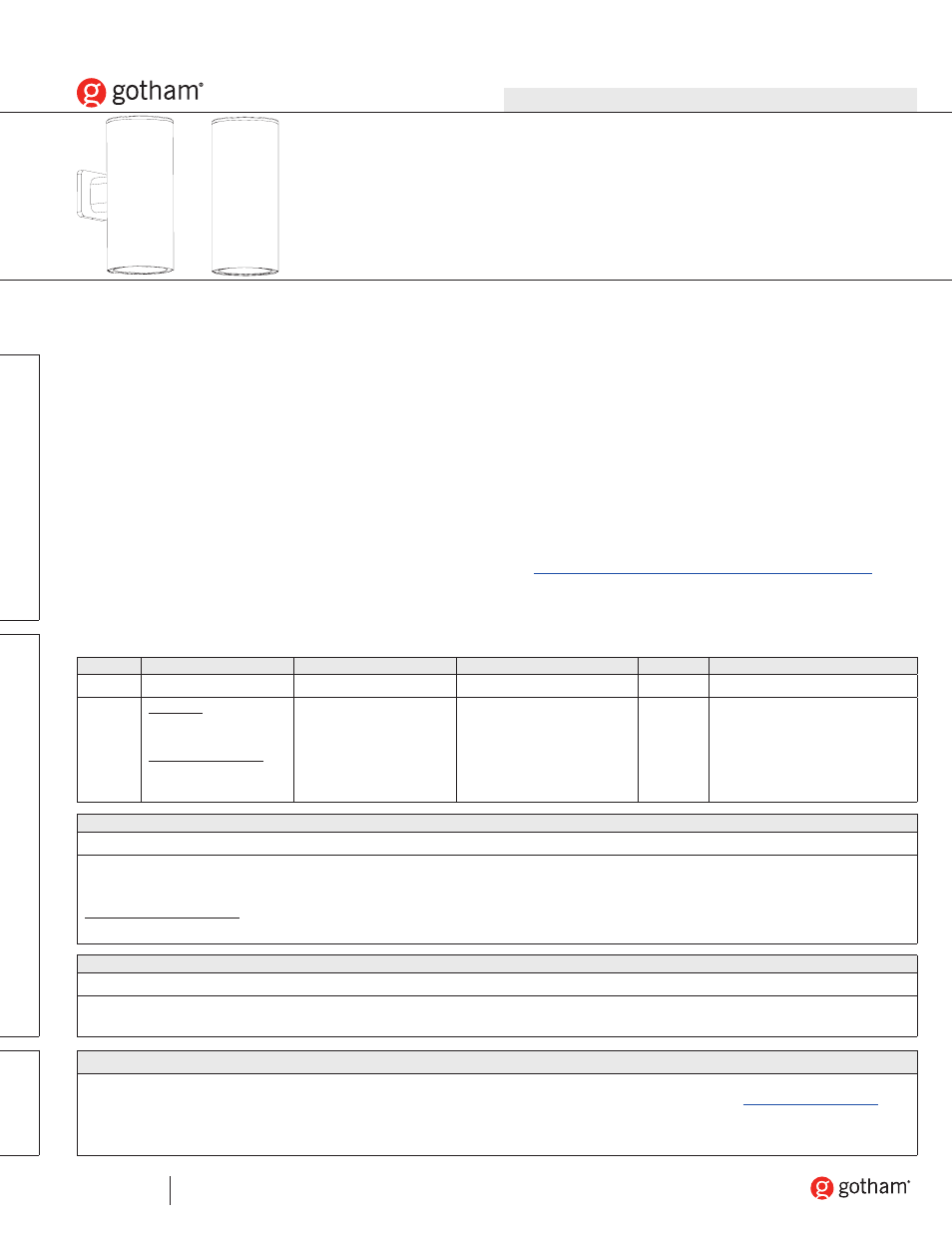

8” chl
Luminaire Type:
Catalog Number
(autopopulated):
© 2008-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 07/31/13. Specifications subject to change without notice.
PAGE 1 OF 4
CHL-8-LEnSEd
Gotham Architectural Downlighting
HID Surface Downlights
8” CHL
Enclosed Wet Location Cylinder
Metal Halide, 6” Aperture
OPTICAL SYSTEM
•
Aluminum upper reflector coated with highly reflective white paint provides high
efficiency and an evenly illuminated aperture appearance.
•
Available with tempered prismatic lens (T73), flat Fresnel lens (FFL) and flat
opal lens (FOL).
•
Regressed white door (RW) or stepped black baffle (SB) are provided with white
painted flange provided.
•
Door is retained by self-aligning, torsion support springs, preventing gaps
between door and cylinder.
HOUSING
•
Heavy gauge, aluminum housing with top deck for clean appearance. Provided
with safety chain on ceiling and pendant units allowing hands-free wiring
connections. Matte white textured polyester powder paint finish standard.
MOUNTING
•
Ceiling mount provided with mounting pattern for direct installation to 4”
octagonal or square junction box.
•
Wall mount provided with mounting pattern for direct installation to 4”
octagonal or square junction box.
•
Pendant mount entry provided for 3/8” National Pipe Thread stem. Additional
pendant options available (see accessories). Wires supplied by others.
ELECTRICAL SYSTEM
•
Medium-base porcelain socket with nickel-plated screw shell.
•
Removable, pre-wired, 120 or 277V, 50/60Hz electronic ballast module standard.
LISTING
•
Fixtures are listed and labeled to comply with US and Canadian standards. Wall
mount suitable for wet locations. Ceiling and pendant mount suitable for wet
locations in covered ceiling installations only.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: CHL8 70MHC 6RW T73 MVOLT FCM DWHG
Series
Wattage/Lamp
1
Aperture/Trim color
Lens type
Voltage
Mounting
CHL8
Metal halide
50M
MEd
70M
MEd
Color-correct metal halide
2
50MHC
MEd
70MHC
MEd
6RW
Regressed white door
6SB
Stepped black baffle
T73
Tempered prismatic lens
FFL
Flat Fresnel lens
FOL
Flat opal lens
MVOLT
3
120
277
347
3
FCM
Ceiling mount
WM
Wall mount
PM
4
Pendant 3/8” thread mount
Options
SF
5
Single fuse
EC
Emergency circuit
WLP
Lamp (shipped separately)
Architectural Colors - Powder Paint
6
DWHG
Matte white (standard)
DDB
dark bronze
DBL
Black
DWH
Gloss white
DMB
Medium bronze
DNA
natural aluminum
DSS
Sandstone
DGC
Charcoal grey
DTG
Tennis green
DBR
Bright red
DSB
Steel blue
ACCESSORIES order as separate catalog numbers (shipped separately)
CYS
7
3/8” stem and canopy with 5° “hang straight” swivel
CRS
7
3/8” stem and canopy with 45° swivel
FE
AT
U
RE
S
OR
DER
ING
IN
FO
RM
AT
ION
N
OT
ES
ORDERING NOTES
1.
Recommended for use with coated lamps.
2.
Ceramic ARC tube consistent-color lamp. Phillips Mastercolor or GE Con-
stant Color.
3.
Only available 70W.
4.
Stem not included.
5.
Must specify 120 or 277V. Not available with QRS.
6.
Additional architectural colors available; see
www.lithonia.com/archcolors
.
7.
Color and length of stem must be specified (from 6” to 240” in even incre-
ments in maximum sections of 48”). Ex.: CYS06 DWHG. Ceiling attachment for
interior use. Consult factory for exterior use. Wire not included.
