8” aflp
Luminaire Type:
Catalog Number
(autopopulated):
© 2010-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 10/07/13. Specifications subject to change without notice.
PAGE 1 OF 3

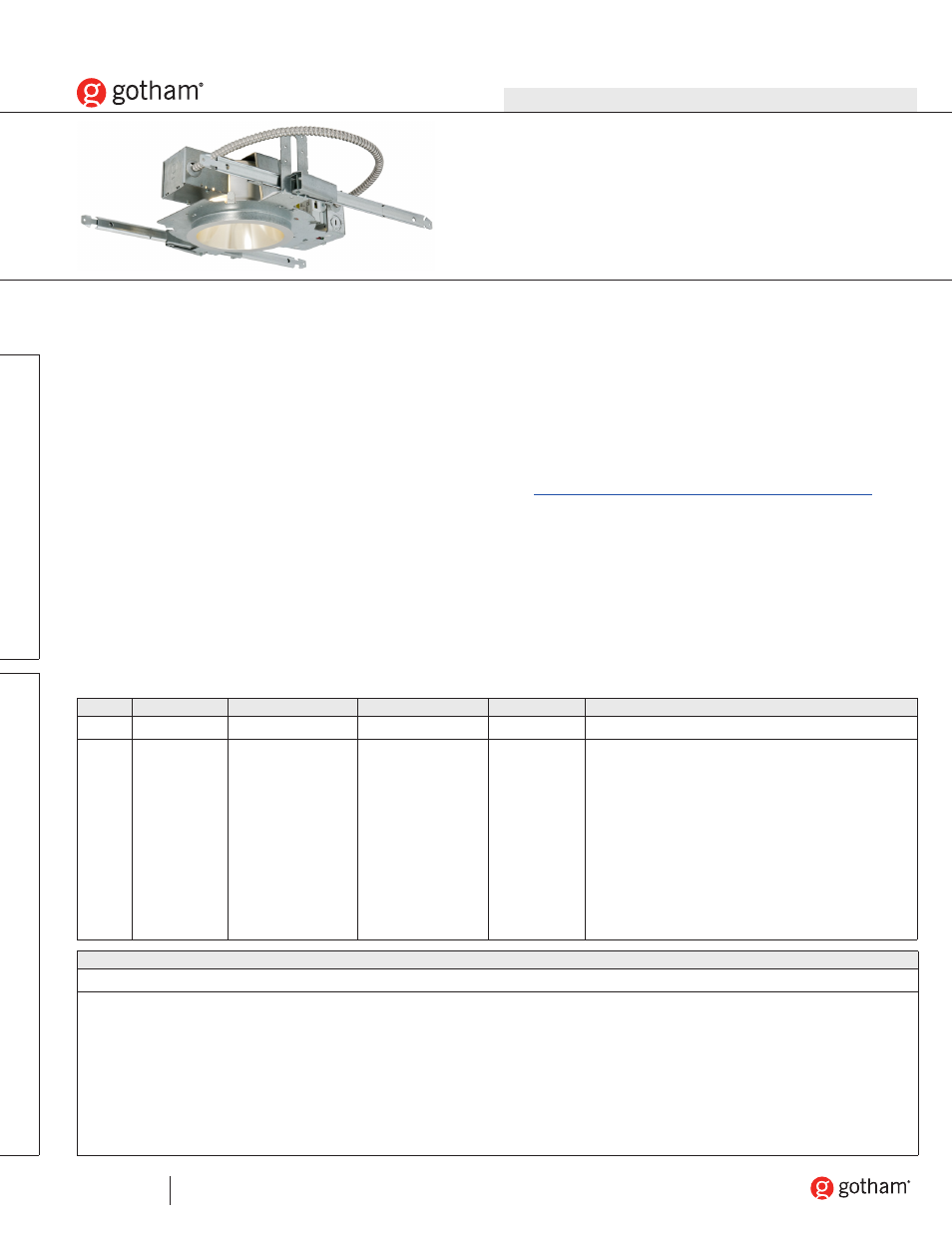

AFLP-8-OPEn
Gotham Architectural Downlighting
Compact Fluorescent Downlights
8” AFLP
Low Profile
Horizontal DTT or TRT lamp
FE
AT
U
RE
S
OR
DER
ING
IN
FO
RM
AT
ION
OPTICAL SYSTEM
•
Self-flanged, semi-specular or matte-diffuse reflector. Fluted vertical upper
section works in conjunction with Patented Bounding Ray™ Optical Principle
design (U.S. Patent No. 5,800,050) to provide lamp before lamp image and
smooth transition from top of reflector to bottom. Minimum flange matches
reflector finish.
•
Hinged lampdoor seals upper trim for optimal fixture efficiency and the reduc-
tion of stray light in the plenum.
MECHANICAL SYSTEM
•
16-gauge galvanized steel mounting/plaster frame. Maximum 1-1/4” ceiling
thickness.
•
16-gauge galvanized steel mounting bars with continuous 4” vertical adjust-
ment are shipped pre-installed. Post-installation adjustment possible without
the use of tools from above or below the ceiling.
•
Galvanized steel junction box with hinged access covers and spring latch. Two
combination 1/2”–3/4” and three 1/2” knockouts for straight-through conduit
runs. Capacity: 8 (4 in, 4 out) No. 12 AWG conductors, rated for 90°C.
•
Low-profile design allows for 4-3/8” fixture depth above ceiling.
ELECTRICAL SYSTEM
•
Horizontally mounted, positive-latch, thermoplastic socket.
•
Class P, thermally protected, high-power-factor electronic ballast mounted to the
junction box.
•
SIMPLY5™ technology available.
LISTING
•
Fixtures are UL Listed for thru-branch wiring, non-IC recessed mounting and
damp locations. Listed and labeled to comply with Canadian standards.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: AFLP 1/26TRT 8AR MVOLT
Series
Wattage/Lamp
Aperture/Trim color
Finish
Voltage
Ballast
3
AFLP
1/18DTT
1/26DTT
2/18DTT
2/26DTT
1/18TRT
1/26TRT
1/32TRT
1/42TRT
2/18TRT
2/26TRT
2/32TRT
2/42TRT
8AR
Clear
8PR
Pewter
8WTR
Wheat
8WR
1
White painted
(blank) Semi-specular
LD
Matte-diffuse
MVOLT
2
120
277
347
(blank)
Electronic ballast
ECOS
2
EcoSystem
®
electronic dimming ballast. Minimum dimming
level 5%
ADEZ
4
Advance Mark 10
®
electronic dimming ballast. Minimum
dimming level 5%
ADZT
4
Advance Mark 7
®
electronic dimming ballast. Minimum
dimming level 5%
S5
5
SIMPLY5™ system ballast. Minimum dimming level 15%
Options
ELR
6
Emergency battery pack, remote test switch
ELRHL
6
High lumen output emergency battery pack, remote test switch provided
GMF
4
Single, slow-blow fuse
GLR
4
Single, fast-blow fuse
TRW
White painted flange
TRBL
Black painted flange
DS
Dual switching
CP
7
Chicago plenum
WLP
With 3500 K lamp (shipped separately)
HW
Hardwire for S5 system; replaces RELOC
®
NEPP
Interface for Sensor Switch
®
nLight
®
network with integral power supply. Refer to
Tn-623-01.
WRL
8
Wattage restriction label
