Section 5: Technical Data VN-QUANTUM User Guide
Page 96 I455GB issue 8

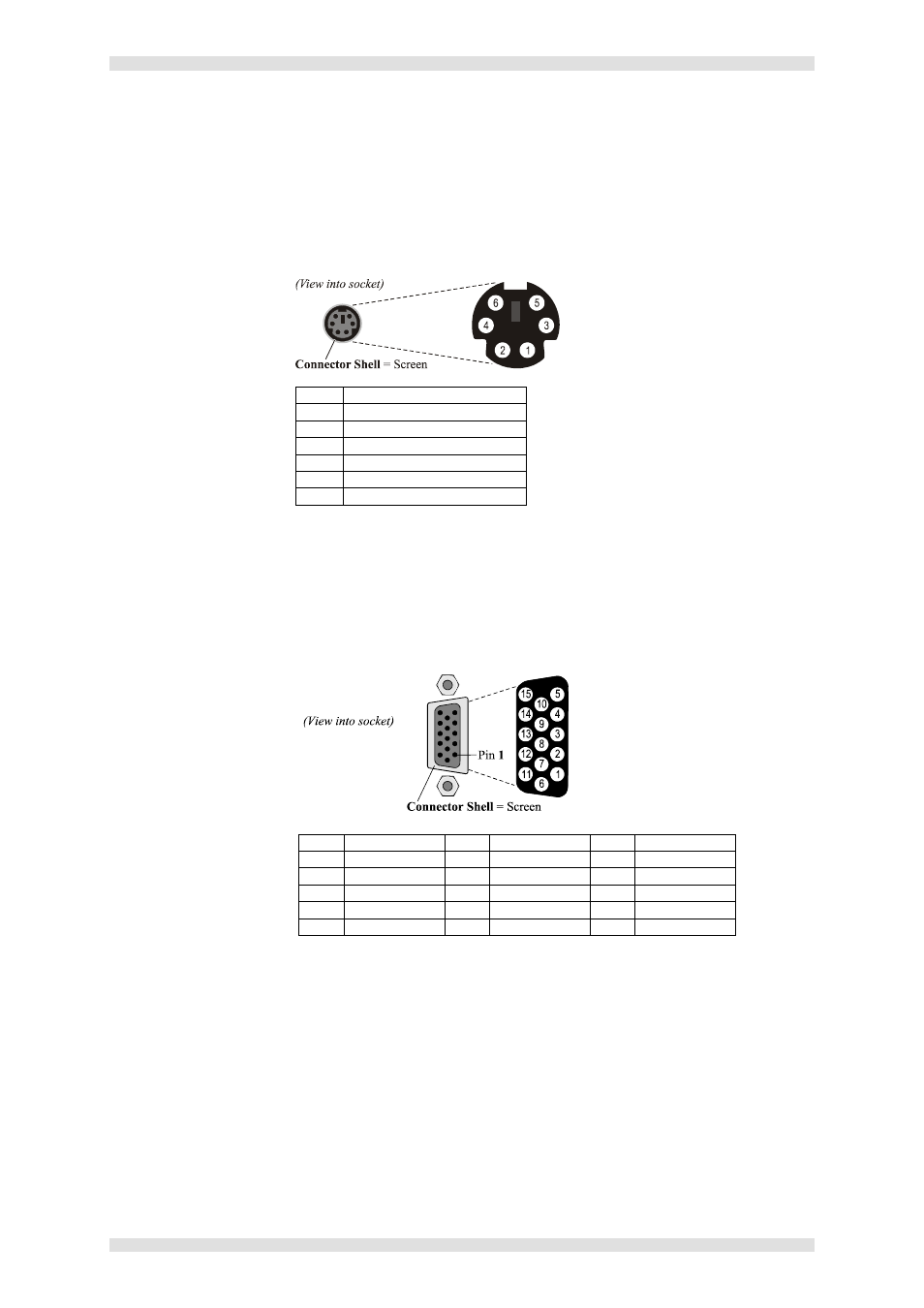

Keyboard/Mouse (PS/2 Port)
Function: Connection for optional PS/2-compatible keyboard and/or mouse – not
required during normal usage. Only required during commissioning and
troubleshooting using the integral Quantum Control Panel facility.
A splitter cable/adapter is required to connect both a mouse and
keyboard simultaneously to the ES3302 Card Frame.
NOTE: PS/2 does not support hot-plugging.
Connector Type: 6-pin mini-DIN (female)
Pin-out Details:
Pin Function
1 Data
2 No connection
3 Ground
4 +5V supply*
5 Clock
6 No connection
* 5V on pin 4 limited to 200mA by thermal fuse.
Monitor
Function: Connection for optional monitor – not required during normal
usage. Only required during commissioning and troubleshooting
using the integral Quantum Control Panel facility.
Connector Type: 15-pin High Density D-type.
Pin-out Details:
Pin Function Pin Function Pin Function
1 Red 6 Gnd (Red) 11 NC
2 Green 7 Gnd (Green) 12 DDC Data
3 Blue 8 Gnd (Blue) 13 H Sync
4 NC 9 +5V Output* 14 V Sync
5 Ground 10 Gnd (Sync) 15 DDC Clock
* 5V on pin 9 limited to 200mA by thermal fuse.
Mating Connector: 15-pin High Density D-type.
Recommended Cable: 5 core miniature coaxial with overall screen, 75Ω characteristic
impedance (e.g. Belden 1522A).
Maximum Cable Length: 5 metres (16 feet)
Signal Type: Analog RGB.
Pixel Clock: 10MHz – 165MHz.
Resolution: Up to 1600 x 1200 pixels (UXGA).
Video Level: 0.7V into 75Ω.
RGB Sync Mode: RGBHV (separate H & V sync).
Sync Level: 2.4V minimum into 2.2KΩ.
Scan Mode: Progressive.
