VN-QUANTUM User Guide Section 3: Functional Overview
I455GB issue 8 Page 71
Target Display
The target display can comprise a single screen (using a single output channel) or a larger tiled
display comprising two or more screens butted together.
Final output from the VN-QUANTUM to the target display is achieved via one or more ES3310 Output
Cards.
ES3310 2-Channel Output Card
Card Architecture

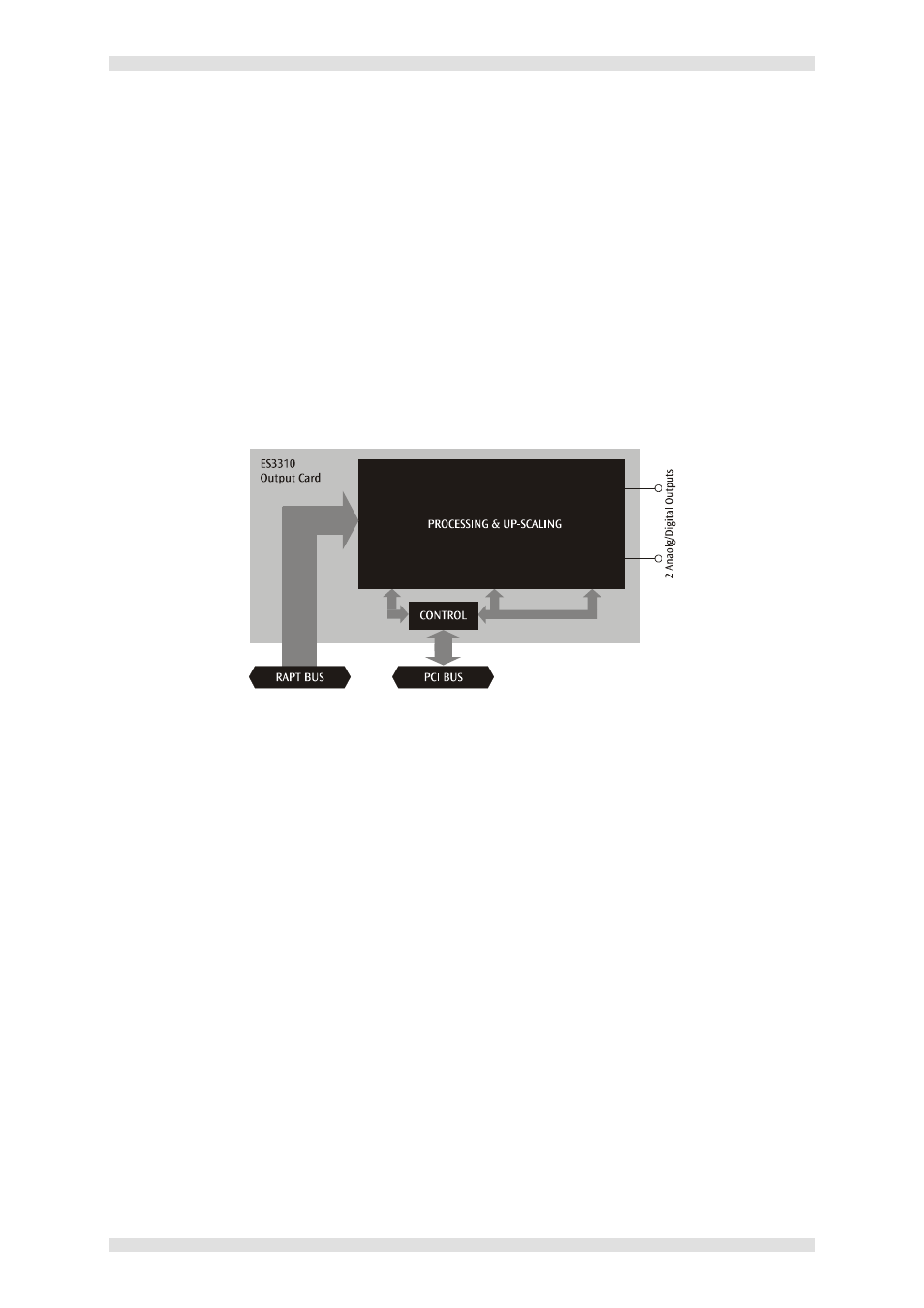

The following diagram shows the main functional blocks of the ES3310 card and basic data/signal
flow through the card:
Each ES3310 card has two output channels, with each channel designed to drive a separate
element/screen in the target display. The maximum number of ES3310 cards that can be installed is
limited only by the number of available card slots (see table on page 57). With the minimum of one
Input Card fitted:
The ES3301-2 Card Frame can accommodate up to 14 Output Cards,
allowing a maximum of 28 display outputs.
The ES3302 & 3304 Card Frame can accommodate up to 7 Output Cards,
allowing a maximum of 14 display outputs.
For full technical data on the ES3310 Output Card, including connector pin-outs, see page 98
