Section 5: Technical Data
VN-QUANTUM User Guide
Page 102
I455GB issue 8
ES3314 DVI Input Card
Function: Input for 1 or 2 digital video or graphics sources. Provides down-
scaling of sources as required. Full source auto-detection is
provided.
Card Weight: 0.26 kg (0.56 lb).
Connector Type: 2 x DVI-D (female).

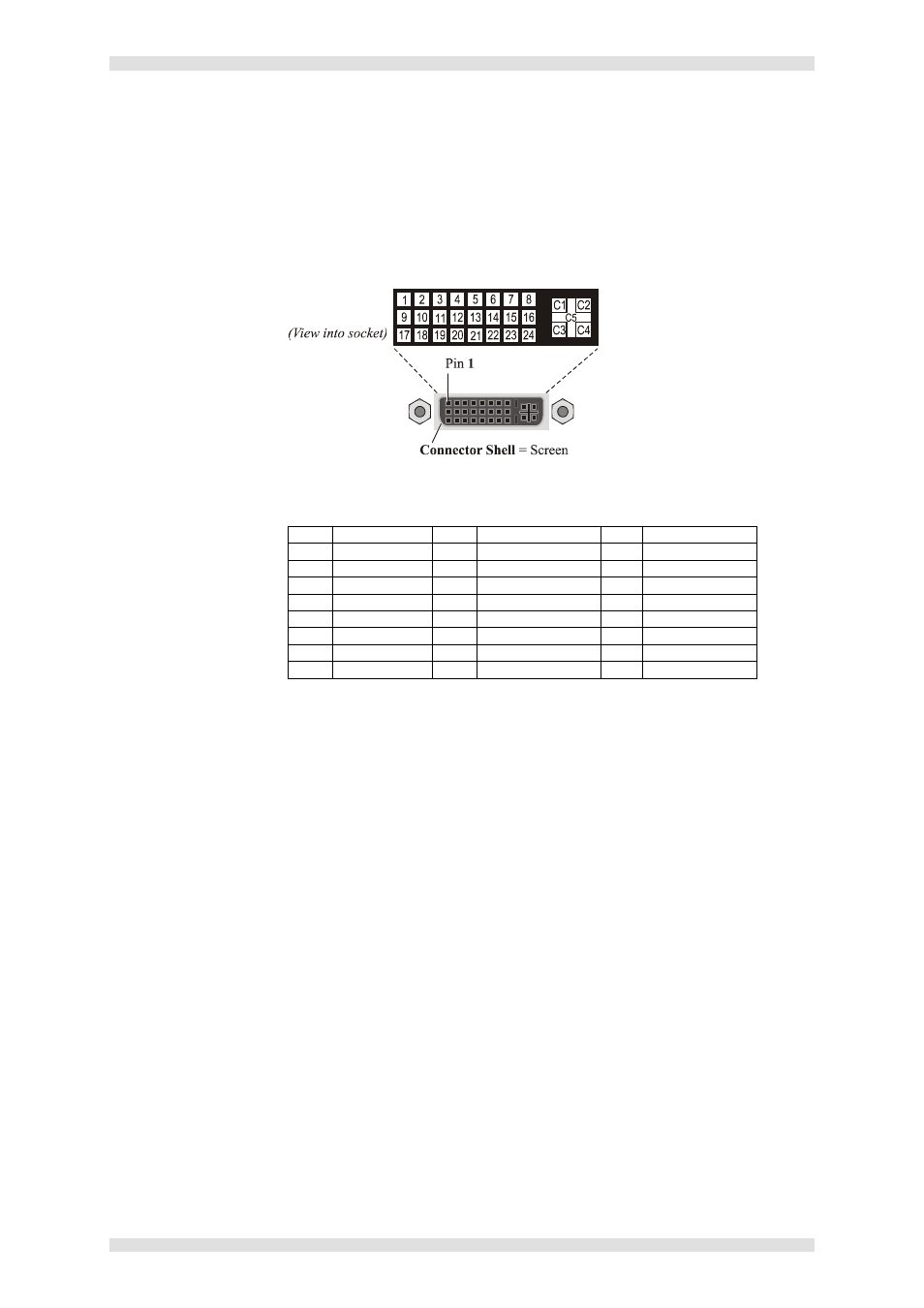

Pin-out Details:
Top Connector = Input 1
Lower Connector = Input 2
Pin
Function
Pin
Function
Pin
Function
1
TMDS 2-
9
TMDS 1-
17
TMDS 0-
2
TMDS 2+
10
TMDS 1+
18
TMDS 0+
3
Ground (2/4)
11
Ground (1/3)
19
Ground (0/5)
4
No connection
12
No connection
20
No connection
5
No connection
13
No connection
21
No connection
6
DDC Clock
14
+5V Reference
22
Ground (Clk)
7
DDC Data
15
Ground (for 5v)
23
TMDS Clock+
8
No connection
16
Hot Plug Detect
24
TMDS Clock-
NOTE: All analog pins (C1 – C5) are not connected.
Mating Connector: DVI-D (male).
Recommended Cable: DVI Single or Dual Link Video Cable
Max. Cable Length: 5 metres (16 feet).
Signal Type: DVI (PanelLink
®
TMDS)
Video Standards: Up to UXGA or WUXGA @ 75Hz;
HDTV 1080i, 1080p, or 720p.
RGB
De-interlacing: Single Field Interpolation;
Three Field Interpolation.
Scaling Engine: 370Mpixels/s real-time using ES patented convolver.
Scaling Factor: Variable from unity down to 1/16 of native resolution horizontally
and vertically.
