VN-QUANTUM User Guide Section 1: Installation & Setup
I455GB issue 8 Page 11

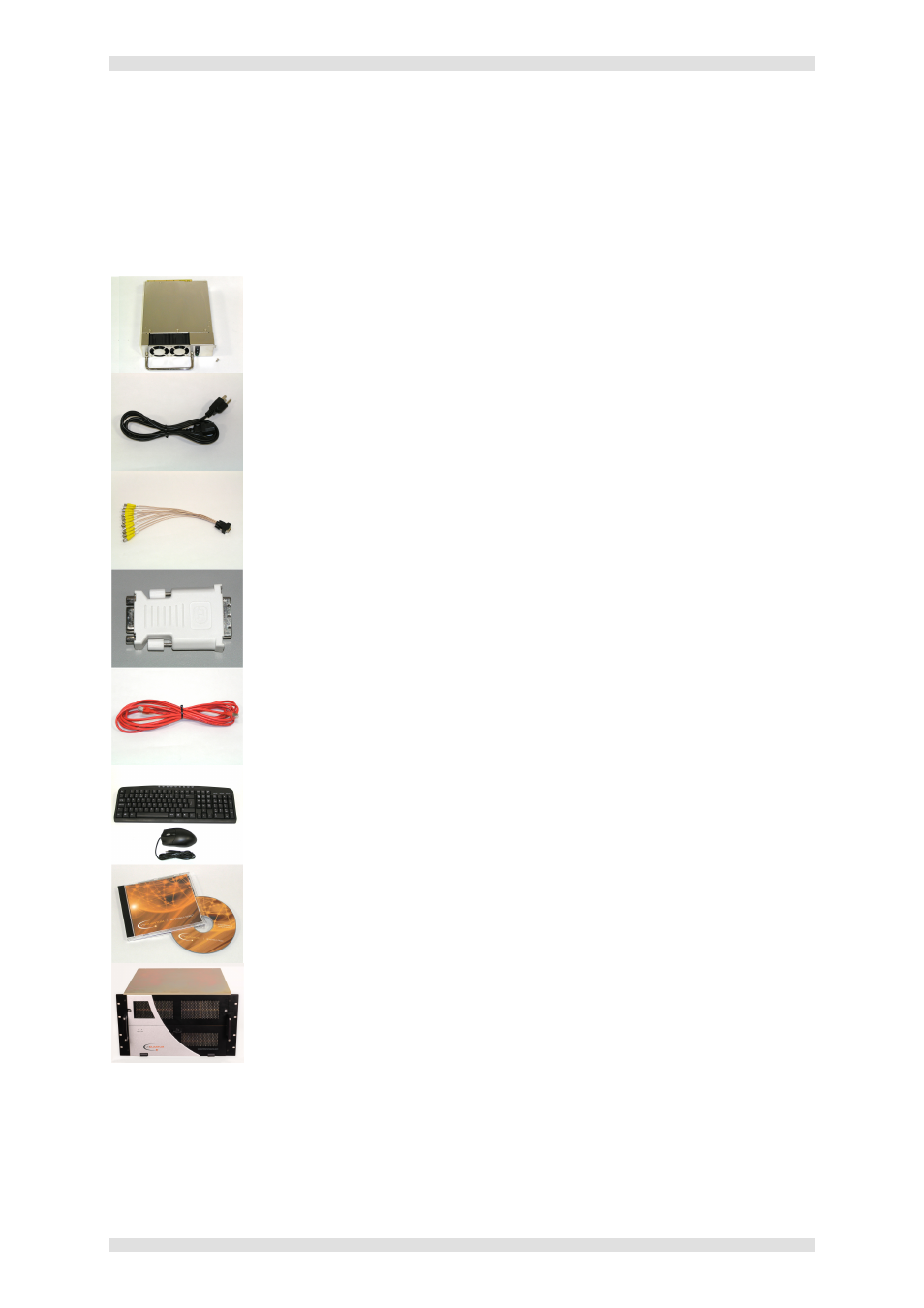

Checking the Supplied Components
Before installing or using the VN-QUANTUM processor please check that all of the following items
have been supplied in the shipping crate and have not been damaged during transit
ES3301-2 Check List
Power Supply Units (PSUs)
Two Card Frame PSUs are packed separately for transit and need to be installed
into the Card Frame prior to use. See page 13 for installation details.
Mains Power Cords
Two IEC 320 (C14) mains power cards are supplied. One is terminated in a 3-pin
‘Edison’ plug (for USA) and the other is unterminated (for Europe and elsewhere).
See page 19 for further details on connecting the mains supply.
Input Card Breakout Cables
These are 26-pin D-type connectors with 12 coaxial flying leads, each approx.
400mm in length and terminated in an inline BNC connector. Check that you have
two cables for each Input Card.
DVI-A to 15-pin VGA Adapters
These adapters are used to connect 15-pin VGA style connectors to the DVI output
connectors. Check that you have two adapters for each Output Card.
Network Crossover Cable
A 5 metre (16ft) crossover patch cable, suitable for direct Ethernet connection
between the VN-QUANTUM Card Frame and the VN-COMMANDER Control PC.
Keyboard and Mouse
A PS/2 compatible QWERTY keyboard and mouse used for low level setup of the
VN-QUANTUM processor.
System Disc
A CD-ROM containing VN-QUANTUM software, including VN-COMMANDER, and
User Documentation. Documentation is supplied in Adobe Acrobat (PDF) format.
VN-QUANTUM Card Frame
With Input and Output Cards pre-installed to order. Compact Flash cards are also
pre-installed.
