Section 2: Hardware Overview VN-QUANTUM User Guide
Page 42 I455GB issue 8

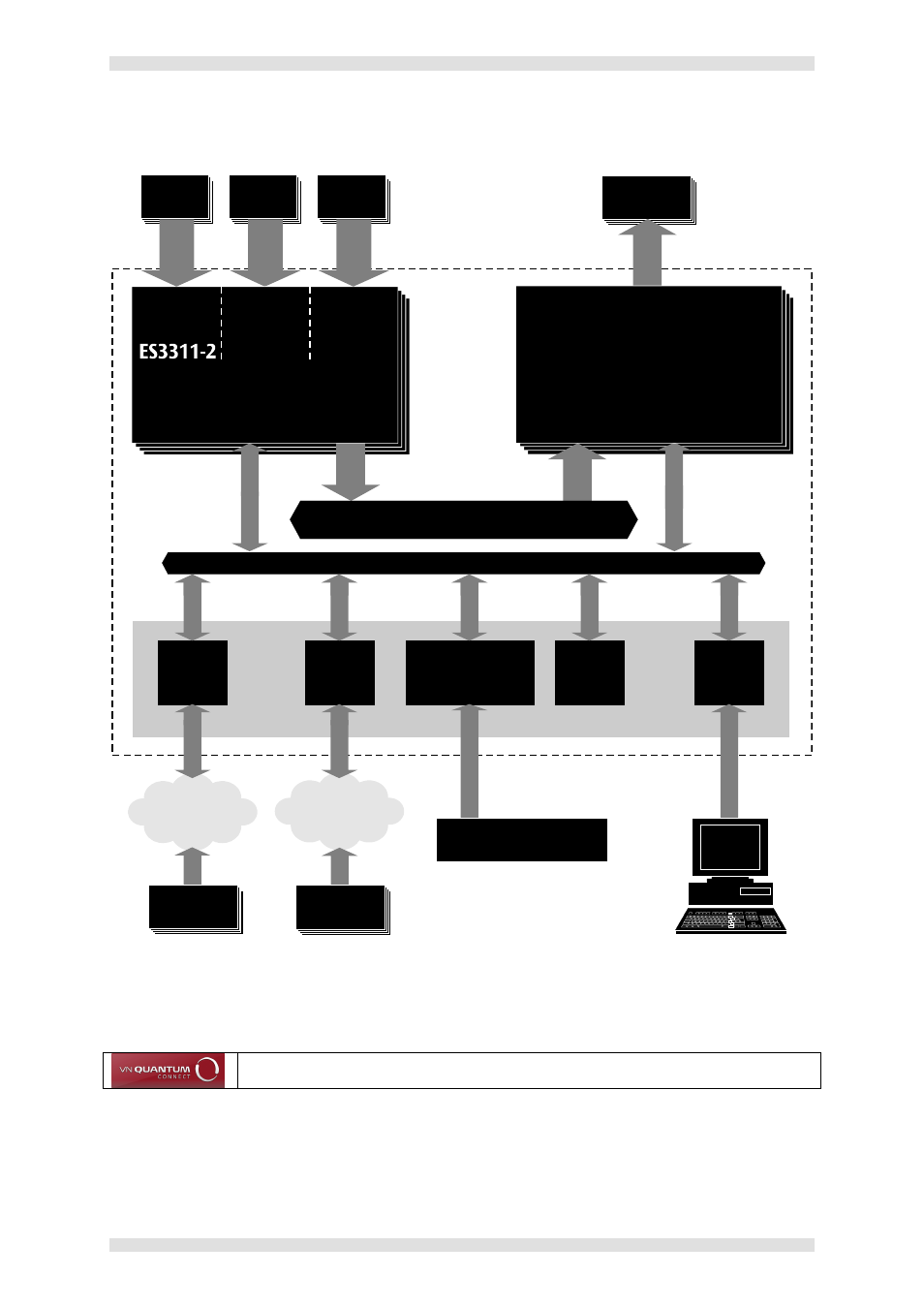

Hardware Block Diagram (ES3302 & 3304 Card Frame)
RGB
SOURCES
DISPLAY
DEVICES
MEDIA
NETWORK
DATA
NETWORK
SCALER
SINGLE BOARD
COMPUTER
IDE
DISK DRIVE
NETWORK
INTERFACE
1
NETWORK
INTERFACE
2
NETWORK
INTERFACE
3
CPU / Operating System
PCI BUS
CONTROL
PC
RGB SOURCES
(VN-GLIMPSE)
NETWORK
CONTENT
KEYBOARD / MOUSE CONTROL
(for low-level setup only)
ES3302
Card
Frame
RAPT BUS
VIDEO
SOURCES
DVI
SOURCES
ES3312
Input Card(s)
ES3314 ES3310
Output Card(s)
Note: The ES3304 VN-QUANTUM CONNECT processor does not support the use
of the Media ports (Network interface 1 & 2).
