VSW 2VGA A • Installation and Operation
Installation and Operation, cont’d
2-6
Under-desk mounting
1. Attach the under-desk mounting brackets (MBU 125,
part #70-077-01) to the VSW 2VGA A with the four
provided machine screws, as shown in figure 2-3.

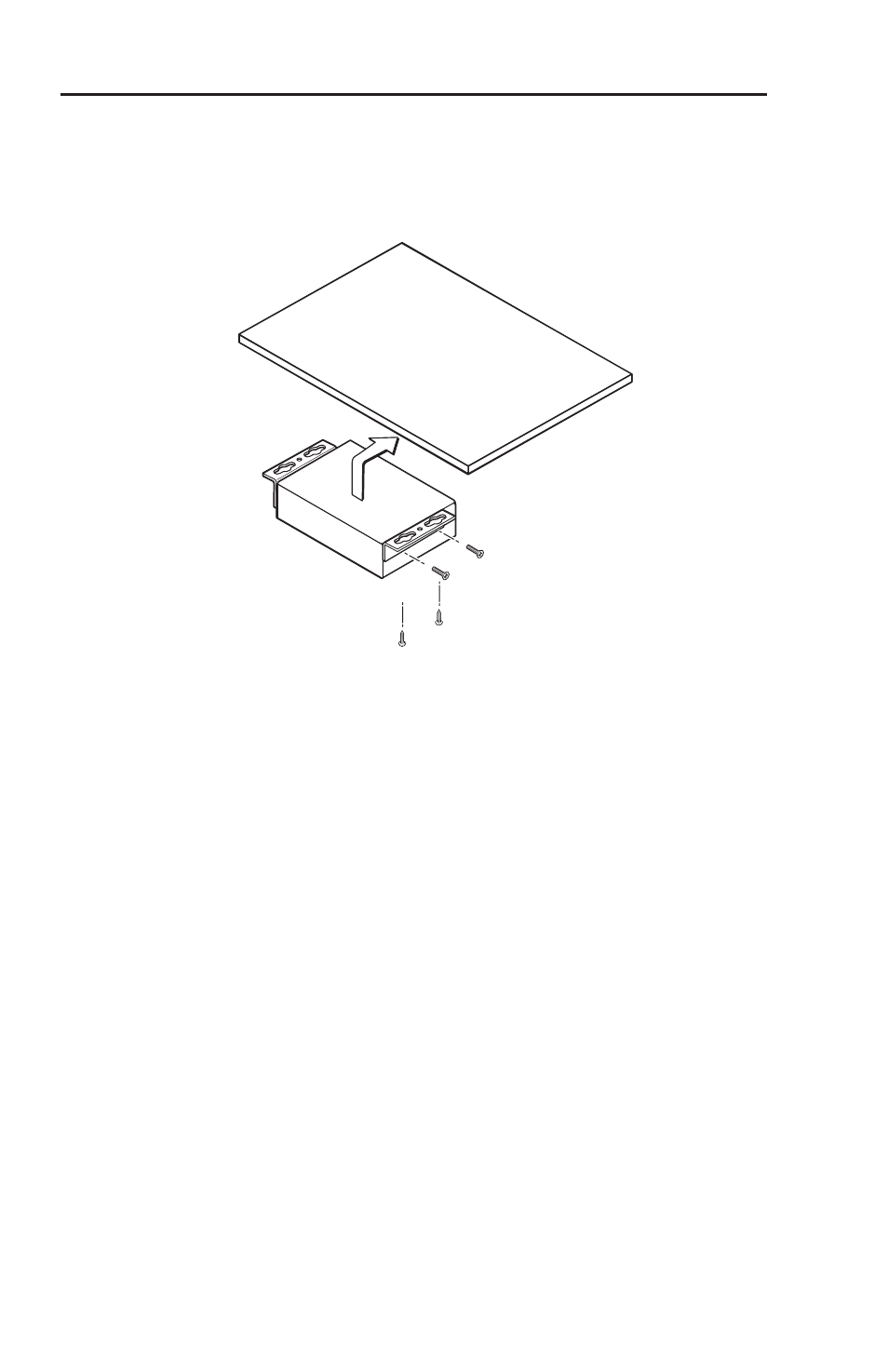

Figure 2-3 — Under-desk mounting brackets
2. Hold the switcher with attached brackets against the
mounting surface. Use a soft pencil to mark the location of
holes for screws on the desk or other furniture.
3. Drill 1/4 inch (6.4 mm) deep, 3/32 inch (2 mm) diameter
pilot holes in the table or desk at the marked screw
locations from the underside/inside (concealed side) of the
furniture, where the switcher will be located.
4. Attach the VSW 2VGA A to the desk with the provided
wood screws.
Through-desk mounting
1. Hold the front panel of the switcher against the furniture.
Use a soft pencil to mark the rough-in opening on the desk.
The opening, 1.125 inch x 4.425 inch (2.8 cm x 11.2 cm) will
be slightly larger than the switcher enclosure.
2. Cut out the material from the rough-in area with a jigsaw.
Check the opening size by inserting the switcher part way
through the hole. If needed, use a saw, file, or sandpaper
to enlarge the hole. Smooth the edges of the hole with
sandpaper.
