VSW 2VGA A • Installation and Operation
Installation and Operation, cont’d
2-4
2. Mount the VSW 2VGA A on one of the following rack
shelves:
• RSF 123 rack shelf kit (part #60-190-20)
• RSB 123 rack shelf (part #60-604-20)
• RSU 126 6 inch deep universal rack shelf kit
(part #60-190-10)
• RSB 126 6 inch deep basic rack shelf (part #60-604-10)
• RSU 129 1U universal rack shelf kit (part #60-190-01)
• RSB 129 1U basic rack shelf (part #60-604-01)
On the standard rack shelf, the switcher mounts in one
of four locations to the rear of the rack or in one of four
locations to the front of the rack.
3. Attach the switcher to the rack shelf using two
4-40 x 3/16 inch machine screws. Insert the screws from
the underside of the shelf and securely fasten them into
diagonally opposite corners, as shown in figure 2-1.
(2) 4-40 x 3/16"
Screws
Use 2 mounting holes on
opposite corners.
VersaTools Rack Shelf
1/4 Rack Width Front
False Faceplate

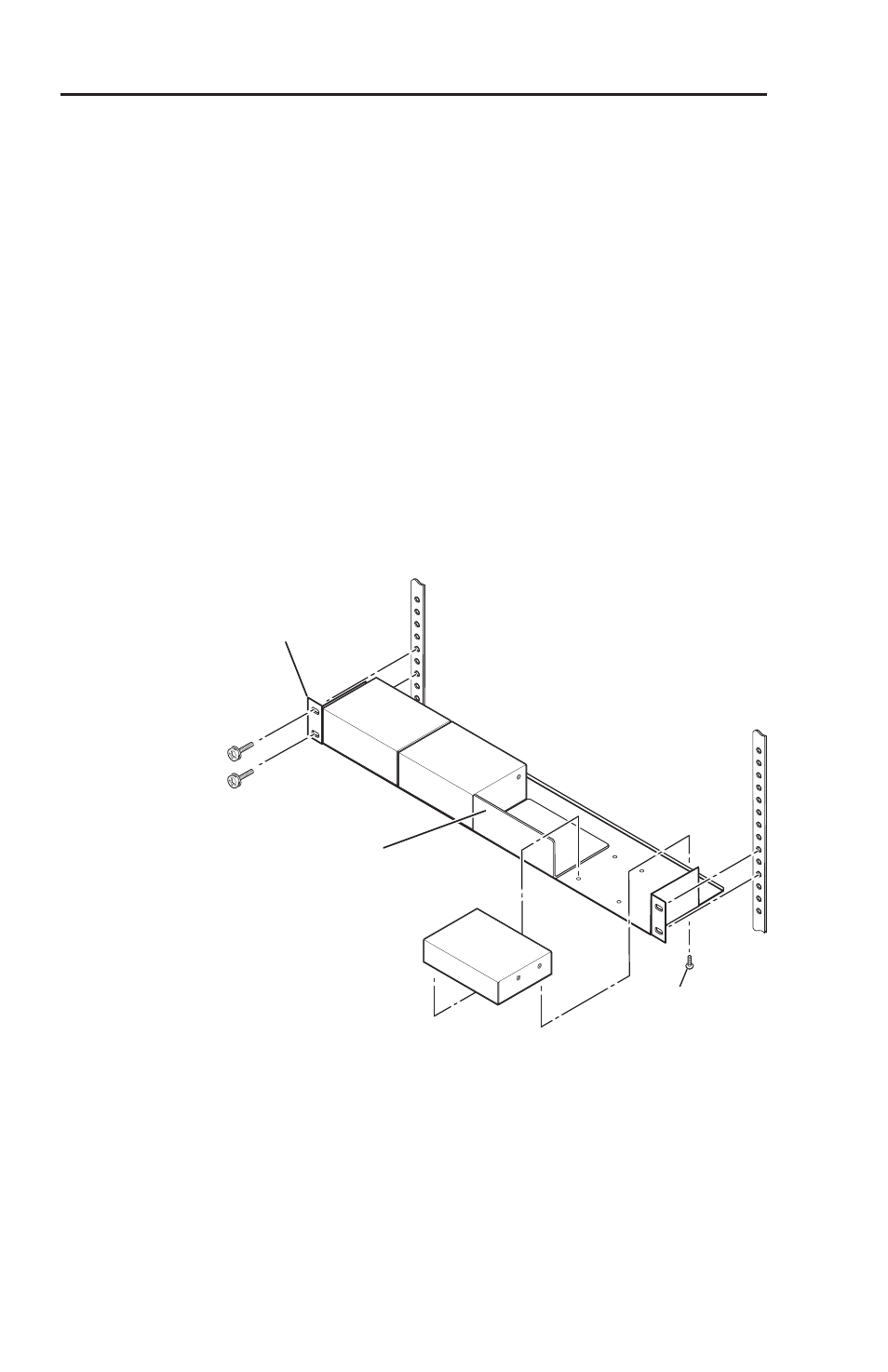

Figure 2-1 — Mounting the VSW 2VGA A on a rack
shelf
N Since the switcher is 1.0 inch high, there will be a gap of
0.75 inch above the switcher.
