Daisy chain configuration, Loop configuration, Daisy chain configuration -15 – Extron Electronics VSW 2VGA A User Guide User Manual

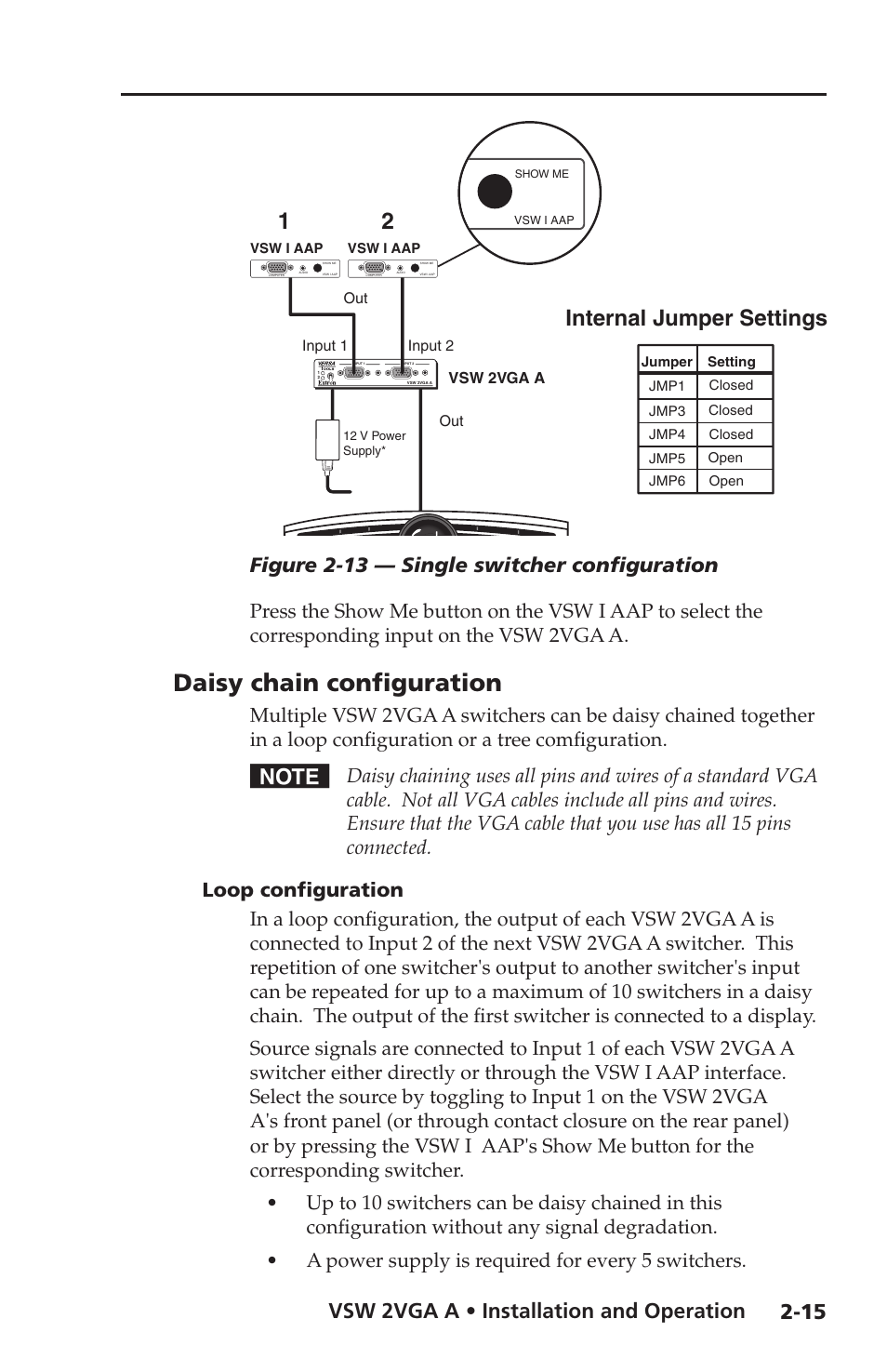

Page 25: Loop configuration -15, Internal jumper settings, Vsw 2vga a • installation and operation, Projector, Figure 2-13 — single switcher configuration
